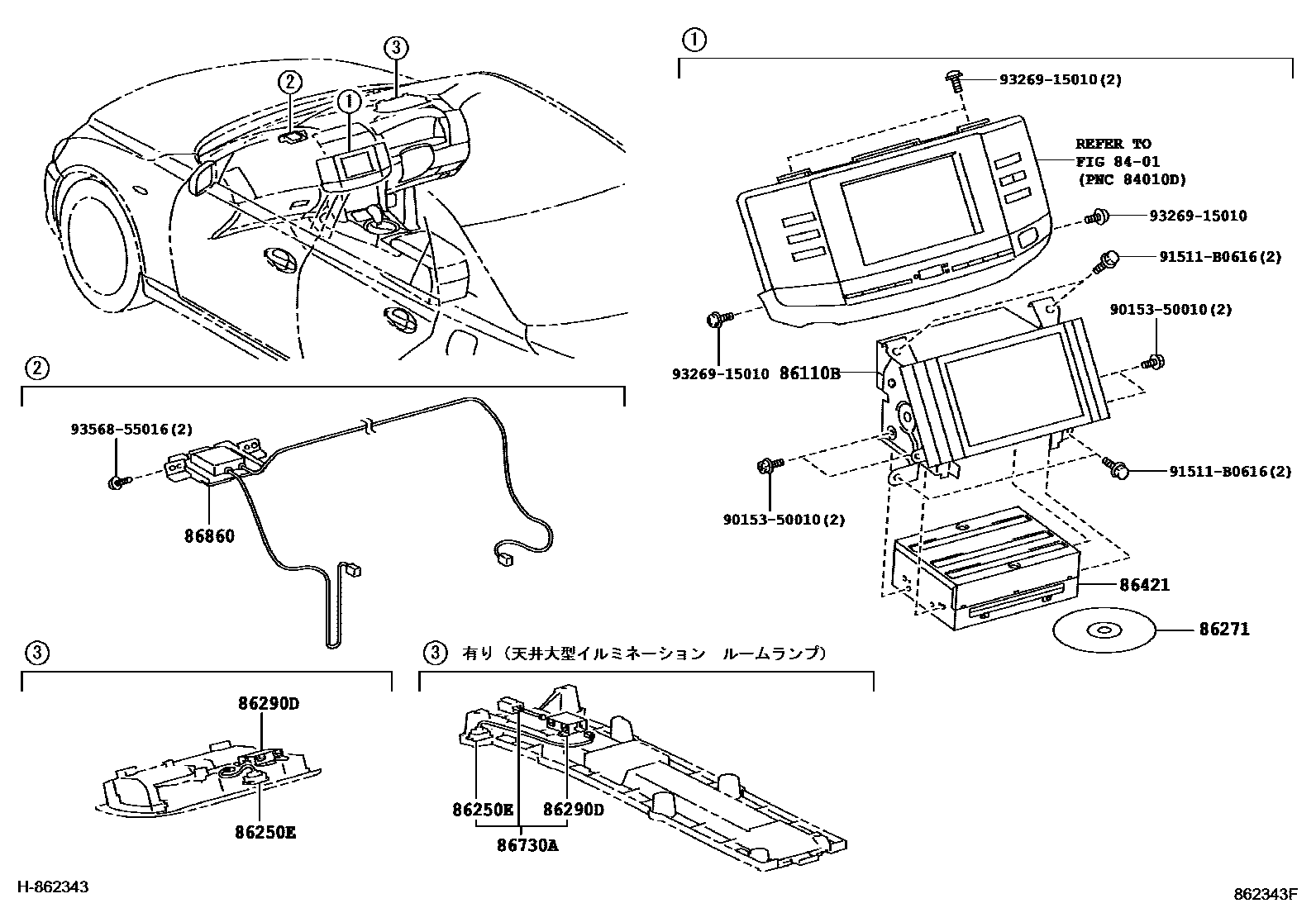

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8401

86110BMULTI-DISPLAY ASSY

main86111-22050iGRX12#200411-200610

86250EMICROPHONE ASSY, AMPLIFIER

main86250-47010iGRX120,125200411-200610

main86250-47020iGRX120,125200411-200610

main86250-47030iGRX120,125200610-200909

main86250-47040iGRX120200610-200909

86271DISC, DISC PLAYER

main86271-13063iGRX12#200411-200508

sub08664-00G16

main86271-13064iGRX12#200508-200603

sub08664-00J16

main86271-13065iGRX12#200604-200608

sub08664-00K16

main86271-13066iGRX12#200609-200610

sub08664-00L16

86290DAMPLIFIER ASSY, MICROPHONE

main86290-47010iGRX12#200411-200610

main86290-47020iGRX121..300GP200610-200909

86421BOARD, NAVIGATION MODULE

main86421-30020iGRX12#200609-200610

86730AMICROPHONE ASSY, TELEPHONE

main86730-22030iGRX120,125200411-200610

main86730-22040iGRX120200610-200909

86860ANTENNA ASSY, NAVIGATION

main86860-22070iGRX12#200411-200610

main86870-22010iGRX121200411-200610

main86870-22011iGRX121200610-200909

9015350010

main90153-50010

91511B0616

main91511-B0616

9326915010

main93269-15010

9356855016

main93568-55016

12 parts on this diagram · 2 diagrams in section
