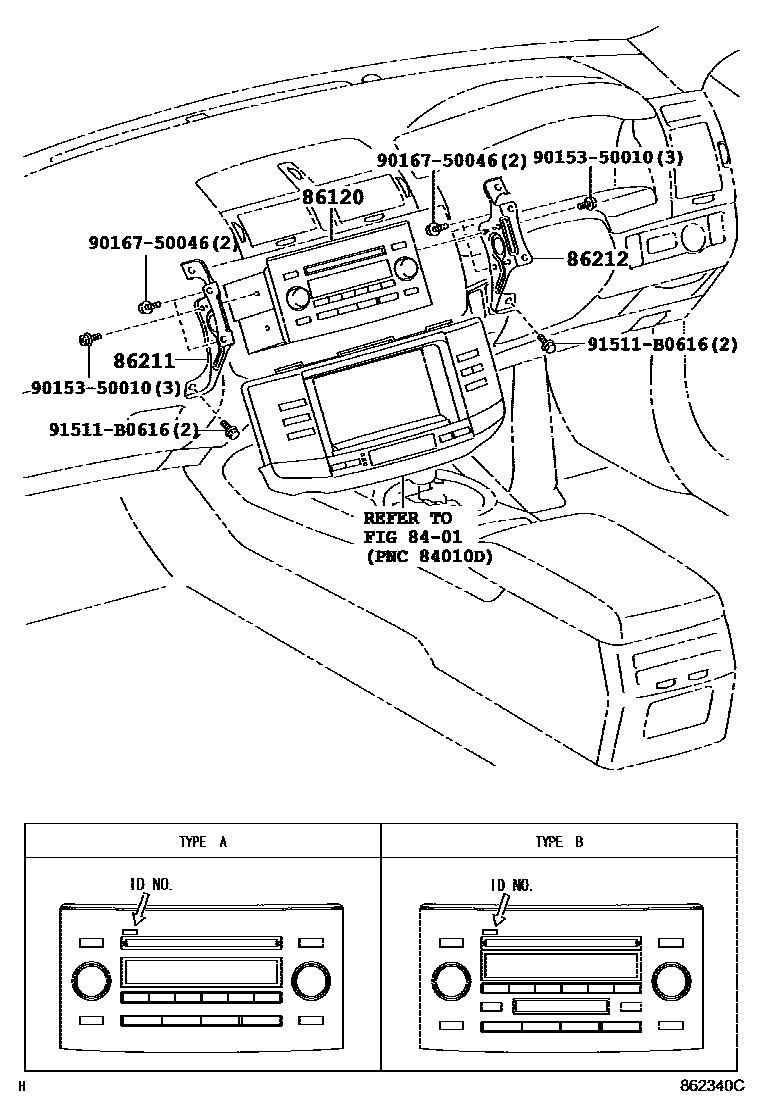

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1��(��������������) 0003 1���� & ������� & ���������

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86120RECEIVER ASSY, RADIO

main86120-22A00iGRX120,125200411-200610

main86120-22A10iGRX120,125200411-200909

main86120-22A10iGRX120,125200411-200909

main86120-22A20iGRX121200411-200610

main86120-22A20iGRX121200411-200610

main86120-22A30iGRX120,125200411-200610

main86120-22A30iGRX121200411-200610

main86120-22A40iGRX121200411-200610

main86120-22A50iGRX121..300GP200610-200909

main86120-22A60iGRX120,125200610-200611

main86120-22A60iGRX121..300G200610-200611

main86120-22A60iGRX121..300G200610-200611

main86120-22A61iGRX121..300G200611-200909

main86120-22A61iGRX121..300G200611-200909

main86120-22A61iGRX121..300G200611-200909

main86120-22A70iGRX120,125200610-200909

main86120-22A70iGRX120,125200610-200909

main86120-22A70iGRX120,125200610-200909

86211BRACKET, RADIO, NO.1

main86211-22210iGRX12#200411-200909

86212BRACKET, RADIO, NO.2

main86212-22190iGRX12#200411-200909

9015350010

main90153-50010

9016750046

main90167-50046

91511B0616

main91511-B0616

7 parts on this diagram · 3 diagrams in section
