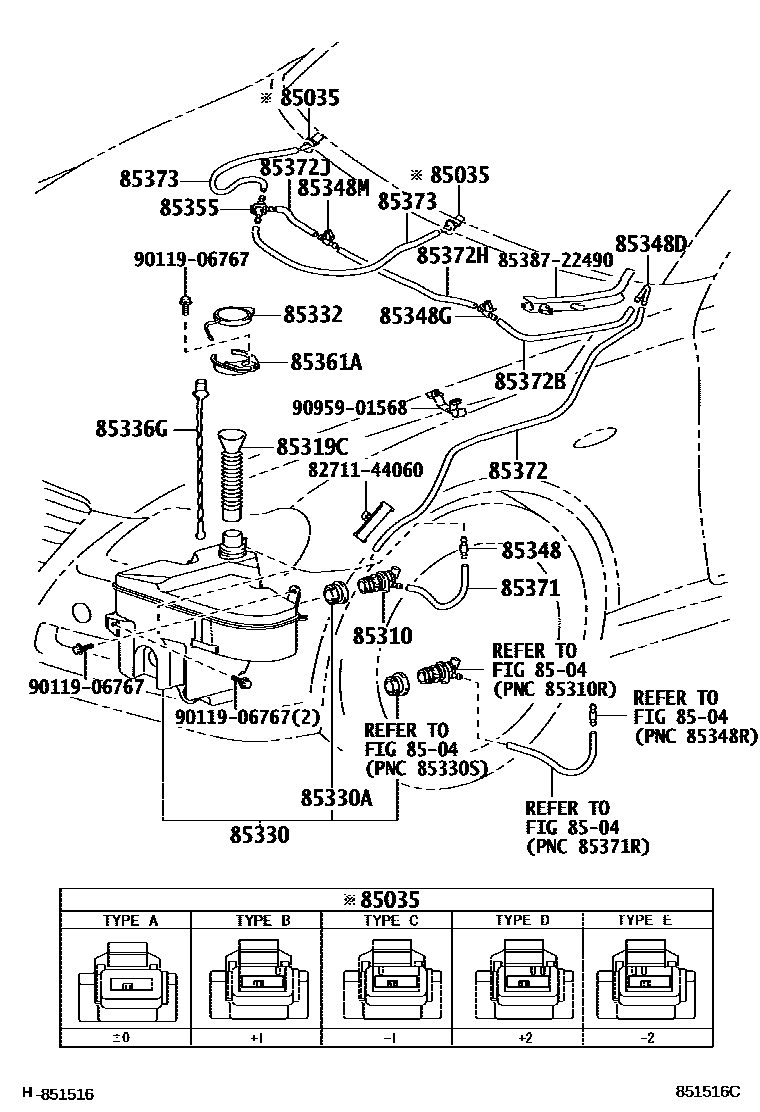

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30110×2i200411-200510

main85381-30130×2i200610

main85381-30140×2i200511-200610

main85381-30150×2i200610

main85381-30160×2i200511-200610

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i200411-200610

85319CHOSE, WASHER

main85319-22280i200411-200610

85330JAR ASSY, WINDSHIELD WASHER

main85315-22270supersedes 85315-30360i200610

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i200411-200610

85332CAP, WINDSHIELD WASHER JAR

main85316-48060i200411-200610

85336GGAGE, WATER LEVEL

main85312-30080i200411-200610

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200411-200610

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-12360i200411-200610

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-20800i200411-200610

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-17050i200411-200610

85355VALVE, WINDSHIELD WASHER HOSE

main85321-26020×2i200511-200610

main85321-30080i200411-200511

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-48060i200610

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200411-200610

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001i200502-200610

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200411-200610

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i200411-200610

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001i200411-200610

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i200411-200502

main90099-33916i200502-200511

8271144060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44060

8538722490CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22490

9011906767

main90119-06767

9095901568

main90959-01568

24 parts on this diagram · 2 diagrams in section
