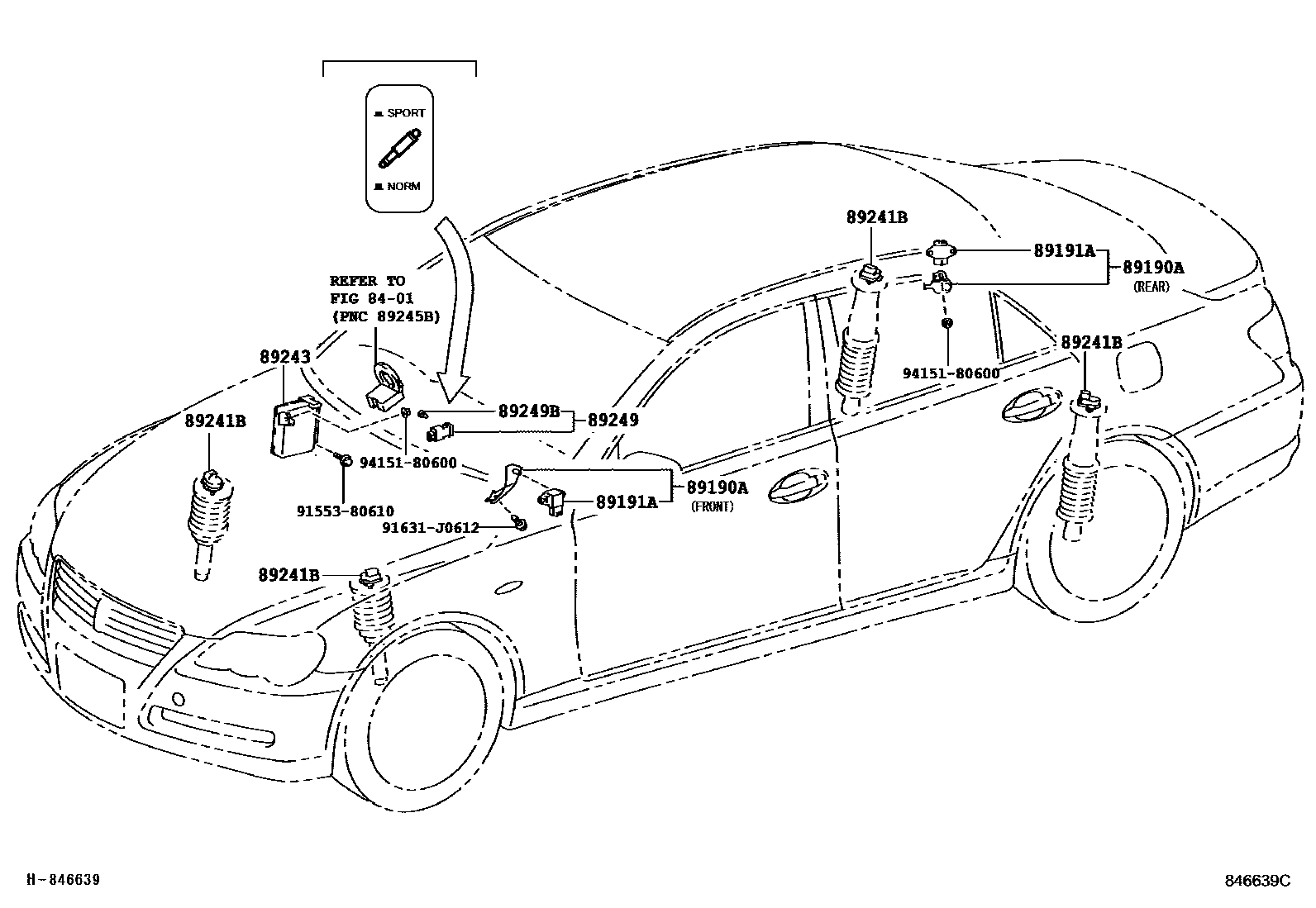

ELECTRONIC MODULATED SUSPENSION

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89190ASENSOR ASSY, ACCELERATION

main89190-22010iGRX121..300GP200610

main89190-22010iGRX121..300GP200610

main89190-30010iGRX121..300GP200610

main89190-30010iGRX121..300GP200610

89191ASENSOR, ACCELERATION

main89191-50020iGRX121..300GP200610

89241BACTUATOR, ABSORBER CONTROL

main89241-30040iGRX121..300GP200610-200909

89243COMPUTER, ABSORBER CONTROL

main89243-22150iGRX121..300GP200610-200810

main89243-22151iGRX121..300GP200811

89249SWITCH, ABSORBER CONTROL

main89249-22060iGRX121..300GP200610-200909

89249BBULB, ABSORBER CONTROL SWITCH

main90010-01062iGRX121..300GP200610

main90010-01062iGRX121..300GP200610

9155380610

main91553-80610

91631J0612

main91631-J0612

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section
