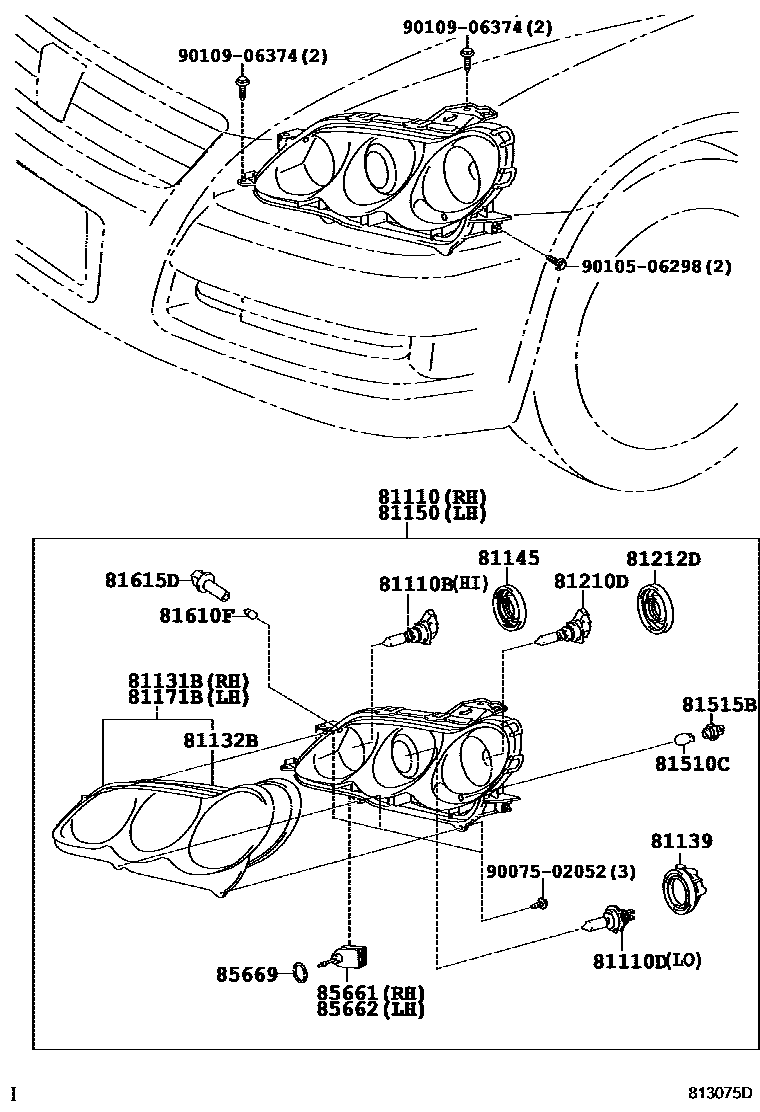

HEADLAMP

0001 1������������� 0002 1������������� 0003 1����������������� 0004 1����������������� 0005 1�����������������&��(AFS) 0006 1�����������������&��(AFS) 0007 1

81110HEADLAMP ASSY, RH

main81110-22A20iGRX121..300GP200411-200610

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iGRX12#200411-200610

81110DBULB(FOR HEADLAMP, NO.2)

81131BHEAD LAMP LENS, RH

main81131-22A20iGRX12#200411-200610

81132BGASKET, HEADLAMP LENS

main81132-2B890iGRX12#200411-200610

81139COVER, HEADLAMP SOCKET

main81139-22A20iGRX12#200411-200610

81145COVER, HEADLAMP, NO.2

main90075-99054iGRX12#200411-200610

81150HEADLAMP ASSY, LH

main81150-22A20iGRX121..300GP200411-200610

81171BHEAD LAMP LENS, LH

main81171-22A20iGRX12#200411-200610

81210DBULB, FOG LAMP

main90981-13047iGRX12#200411-200610

main90981-13083iGRX12#200610

81212DCOVER, FOG LAMP

main90075-65010iGRX12#200411-200610

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iGRX12#200411-200610

main90981-15021iGRX12#200610

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iGRX12#200411-200610

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iGRX12#200411-200610

81615DSOCKET, CLEARANCE LAMP

main90075-60046iGRX12#200411-200501

main90075-60077iGRX12#200501-200610

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12020iGRX12#..250G,300G200411-200610

main85661-48030iGRX121..300GP200411-200610

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12020iGRX12#..250G,300G200411-200610

main85661-48030iGRX121..300GP200411-200610

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iGRX12#200411-200610

9007502052

main90075-02052

9010506298

main90105-06298

9010906374

main90109-06374

21 parts on this diagram · 7 diagrams in section
