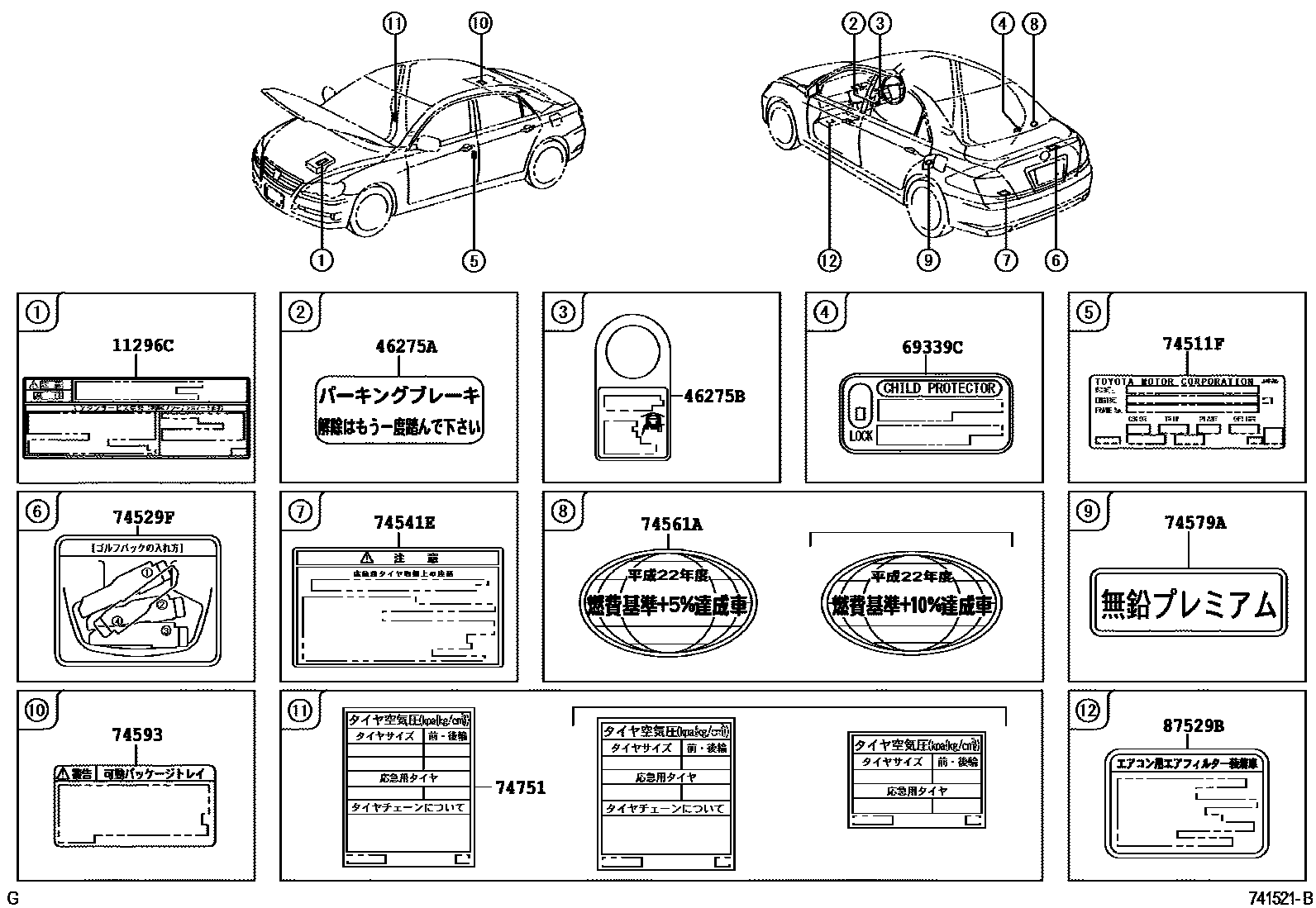

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-31010i3GRFSE,4GRFSE..GRX12#200411-200610

sub11296-31051

main11296-31130i3GRFSE,4GRFSE..GRX12#200902

46275ALABEL, PARKING BRAKE RELEASE INFORMATION, NO.1

main46275-22010-A0iGRX12#200411-200610

WHITE,TRIM0#,4#

main46275-22010-B0iGRX120,121..250G,300G200610-200909

GRAY,TRIM2#

main46275-22010-B3supersedes 46275-22010-B0iGRX120,121..250G,300GP200604-200609

46275BLABEL, PARKING BRAKE RELEASE INFORMATION, NO.2

main46275-47010iGRX12#200610-200905

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-12010×2iGRX12#200411-200610

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-2B300iGRX12#200411-200610

74529FLABEL, LUGGAGE COMPARTMENT DOOR

main74529-22010iGRX12#200411-200610

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-30010iGRX12#200610

74561ALABEL, FUEL CONSUMPTION INFORMATION

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-24010iGRX12#200610

74593LABEL, PACKAGE TRAY TRIM NOTICE

main74593-22010iGRX12#200610-200909

74751LABEL, TIRE PRESSURE INFORMATION

main42661-22A00iGRX120,121200610

main42661-22A20iGRX125200610

main42661-22A10iGRX121..300GP200610

87529BLABEL, A/C FILTER INFORMATION

main87529-50020iGRX12#200411-200610

12 parts on this diagram · 2 diagrams in section
