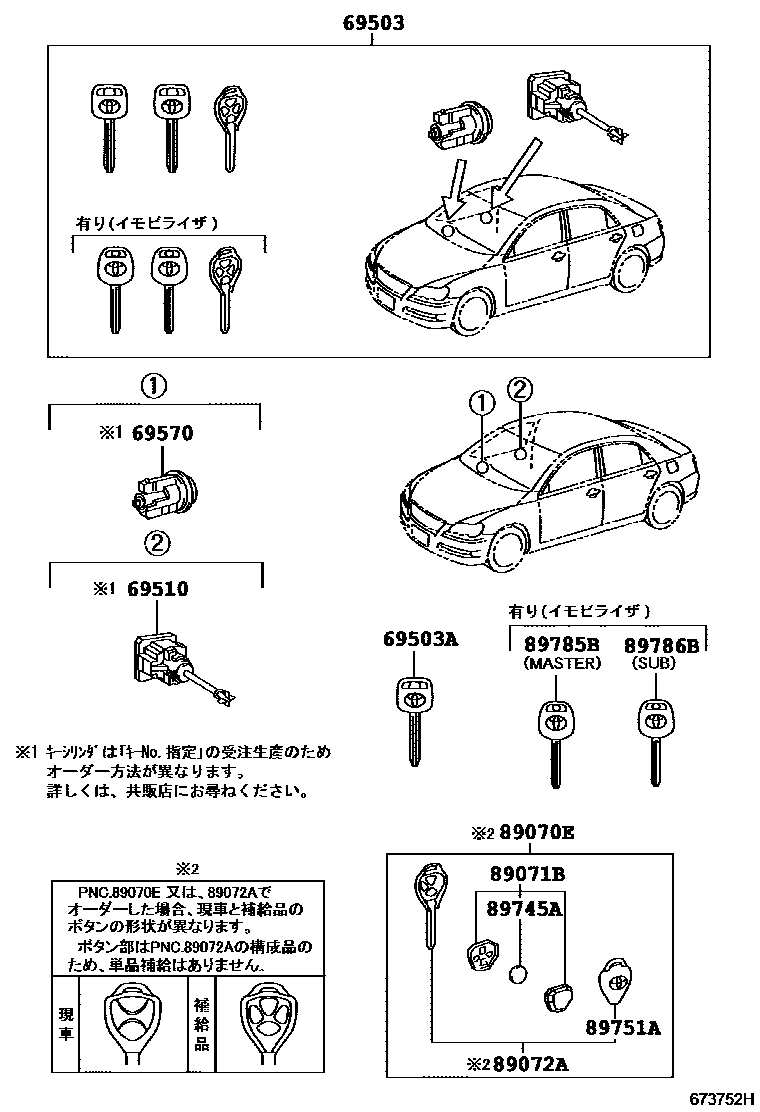

LOCK CYLINDER SET

0001 1��(�������� & ��������) 0002 1��(�������� & ��������) 0003 1��(�������� & ��������) 0004 1��(�������� & ��������)

69503CYLINDER SET, LOCK

main69005-22A30iGRX120,125200411-200610

main69005-22A40iGRX120,125200411-200610

sub69005-22A60

sub8907A-33020

main69005-22A60iGRX120,125200610

main69051-12670iGRX121200610

sub69005-12C90

main69510-20290iGRX12#..250G,300G200411-200610

69503AKEY, BLANK

main69515-47010iGRX121..300GP200411-200610

main90999-00199iGRX120,125200411-200610

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-20290iGRX12#..250G,300G200411-200610

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-22130iGRX12#..250G,300G200411-200610

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-22230iGRX121..300G200411-200610

sub89070-22310

main89070-22240iGRX120,125200411-200610

sub89070-22260

main89070-22260iGRX120,125200610

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-22100iGRX120,125200610

main89071-30080iGRX12#..250G,300G200411-200610

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-22080iGRX120,125200411-200610

main89072-22080iGRX120,125200610

main89072-33481iGRX121..300G200411-200610

main89072-33481iGRX121..300G200411-200610

89745ABATTERY, TRANSMITTER

main89745-48030iGRX12#..250G,300G200411-200610

sub89745-71010

main89745-48030iGRX120,125200610

sub89745-71010

main89745-50020iGRX121..300GP200411-200610

main89745-52020iGRX121200610

89751ACOVER, TRANSMITTER HOUSING

main89751-22050iGRX12#..250G,300G200411-200610

main89751-28070iGRX120,125200610

main89751-30080iGRX121..300GP200411-200610

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-60160iGRX121..300G200411-200610

main89785-60160iGRX121..300G200411-200610

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60170iGRX121..300G200411-200610

main89786-60170iGRX121..300G200411-200610

main89786-60170iGRX121..300G200411-200610

11 parts on this diagram · 4 diagrams in section
