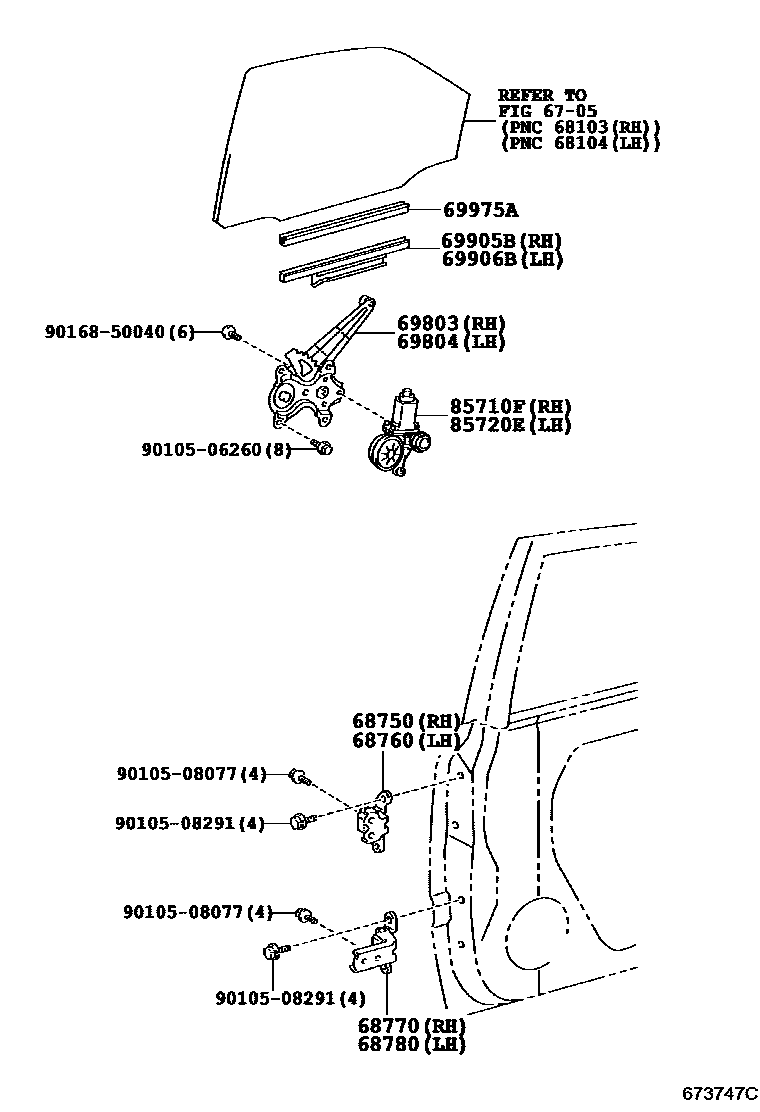

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20120iGRX12#200610-200703

main68750-20121iGRX12#200704-200909

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20120iGRX12#200411-200610

main68760-20121iGRX12#200704-200909

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52030iGRX12#200411-200610

main68770-52031iGRX12#200704-200909

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52030iGRX12#200411-200610

main68780-52031iGRX12#200704-200909

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22200iGRX12#200610

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22200iGRX12#200610

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-22060iGRX12#200610-200909

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-22050iGRX12#200411-200610

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-22030×2iGRX12#200610-200909

main69975-60040×2iGRX12#200411-200610

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-58010iGRX12#200411-200610

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-58010iGRX12#200411-200610

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
