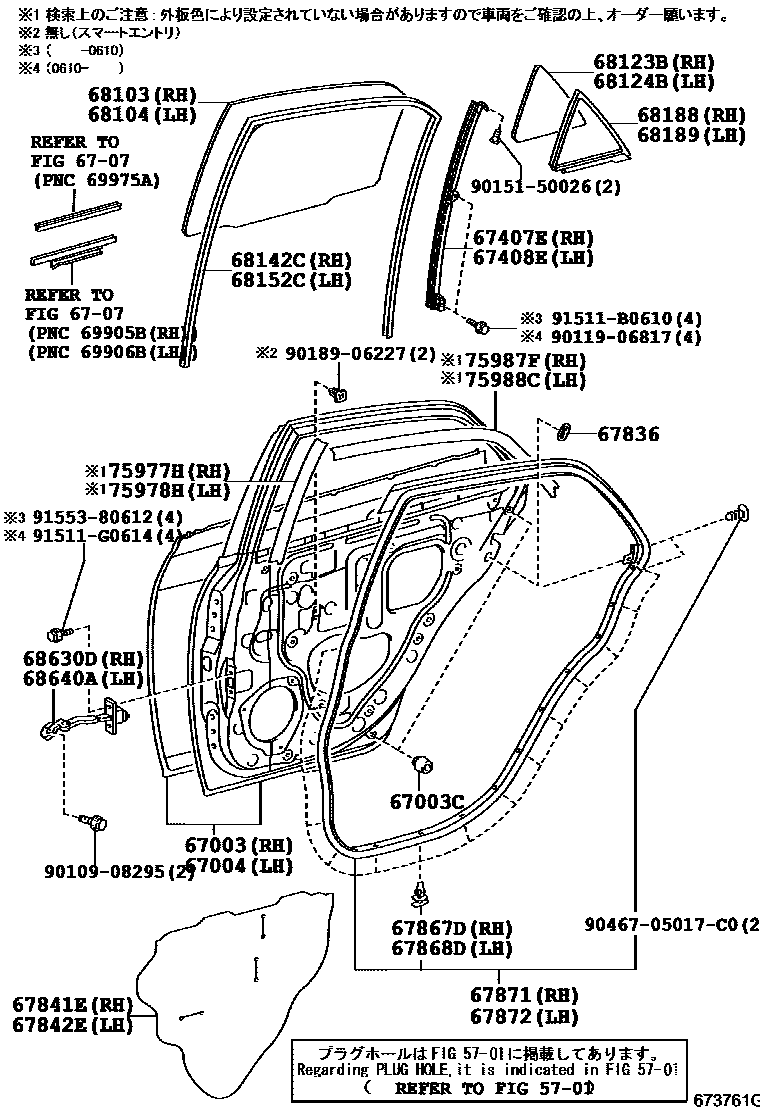

REAR DOOR PANEL & GLASS

0001 1��� ���� 0002 1��� ���

5701HOLE PLUG

→ Go to FIG 57-01

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-22450iGRX12#200411-200610

67003CCUSHION, REAR DOOR PANEL

main90541-09069×4iGRX12#200610

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-22460iGRX12#200411-200610

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-22190iGRX12#200411-200610

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-22190iGRX12#200411-200610

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010×2iGRX12#200610

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-22300iGRX12#200411-200601

main67841-22301iGRX12#200610

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-22300iGRX12#200411-200601

main67841-22301iGRX12#200601-200610

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×15iGRX12#200610

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×15iGRX12#200610

67871WEATHERSTRIP, REAR DOOR, RH

main67871-22310iGRX12#200610

67872WEATHERSTRIP, REAR DOOR, LH

main67872-22310iGRX12#200610

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-22450iGRX12#..250G,300G200610-200909

main68113-22460iGRX120,121..250G,300G; GRX121..300GP200610-200909

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-22450iGRX12#..250G,300G200610-200909

main68114-22460iGRX120,121..250G,300G; GRX121..300GP200610-200909

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-22280iGRX12#..250G,300G200610

main68123-22290iGRX120,121..250G,300G; GRX121..300GP200610

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-22280iGRX12#..250G,300G200610

main68124-22290iGRX120,121..250G,300G; GRX121..300GP200610

68142CRUN, REAR DOOR GLASS, RH

main68142-22170iGRX12#200610

68152CRUN, REAR DOOR GLASS, LH

main68152-22130iGRX12#200411-200610

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-22110iGRX12#200411-200610

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-22100iGRX12#200411-200610

68630DCHECK ASSY, REAR DOOR, RH

main68630-22160iGRX12#200411-200610

68640ACHECK ASSY, REAR DOOR, LH

main68640-22060iGRX12#200610

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-22030iGRX12#200411-200610

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-22030iGRX12#200610-200909

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-22180iGRX12#200610-200909

75988CSTRIPE, REAR DOOR, OUTSIDE LH

main75988-22140iGRX12#200610-200909

9010908295

main90109-08295

9011906817

main90119-06817

9015150026

main90151-50026

9018906227

main90189-06227

9046705017C0

main90467-05017C0

91511B0610

main91511-B0610

91511G0614

main91511-G0614

9155380612

main91553-80612

36 parts on this diagram · 2 diagrams in section
