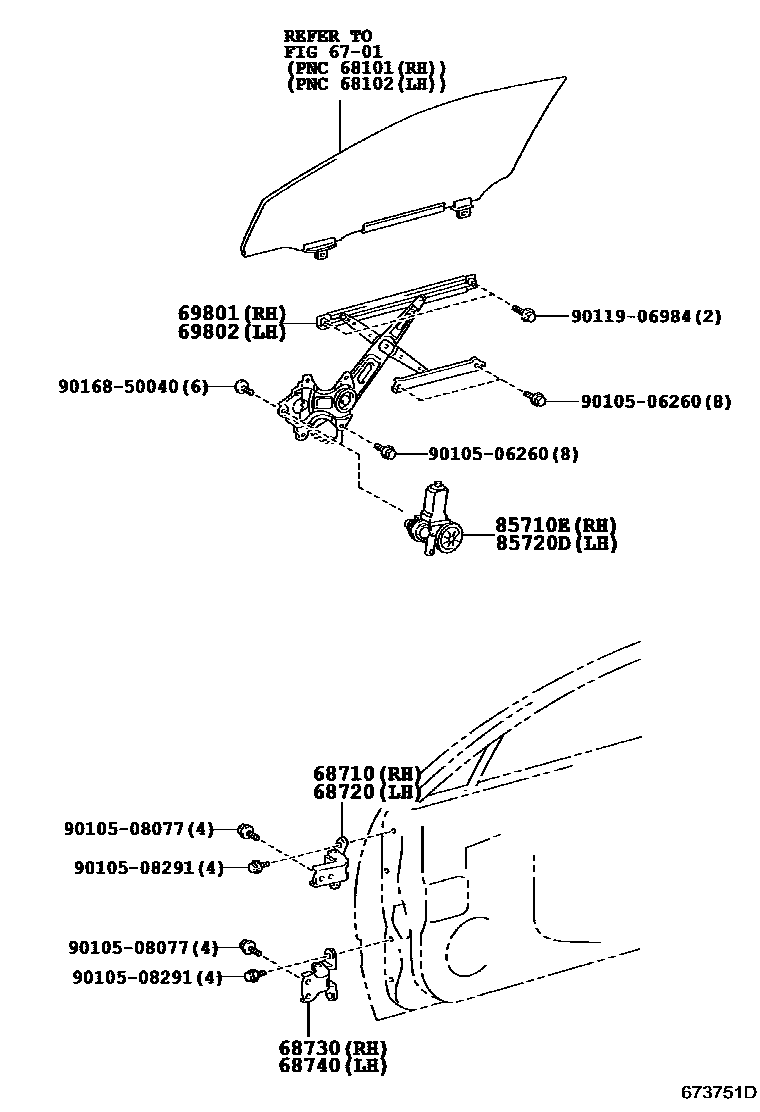

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iGRX12#200411-200610

main68710-12151iGRX12#200704-200909

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iGRX12#200411-200610

main68720-12151iGRX12#200704-200909

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iGRX12#200411-200610

main68730-33021iGRX12#200704-200909

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020iGRX12#200411-200610

main68740-33021iGRX12#200704-200909

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22190iGRX12#200411-200610

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22190iGRX12#200411-200610

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-58010iGRX12#200411-200610

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-58010iGRX12#200411-200610

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
