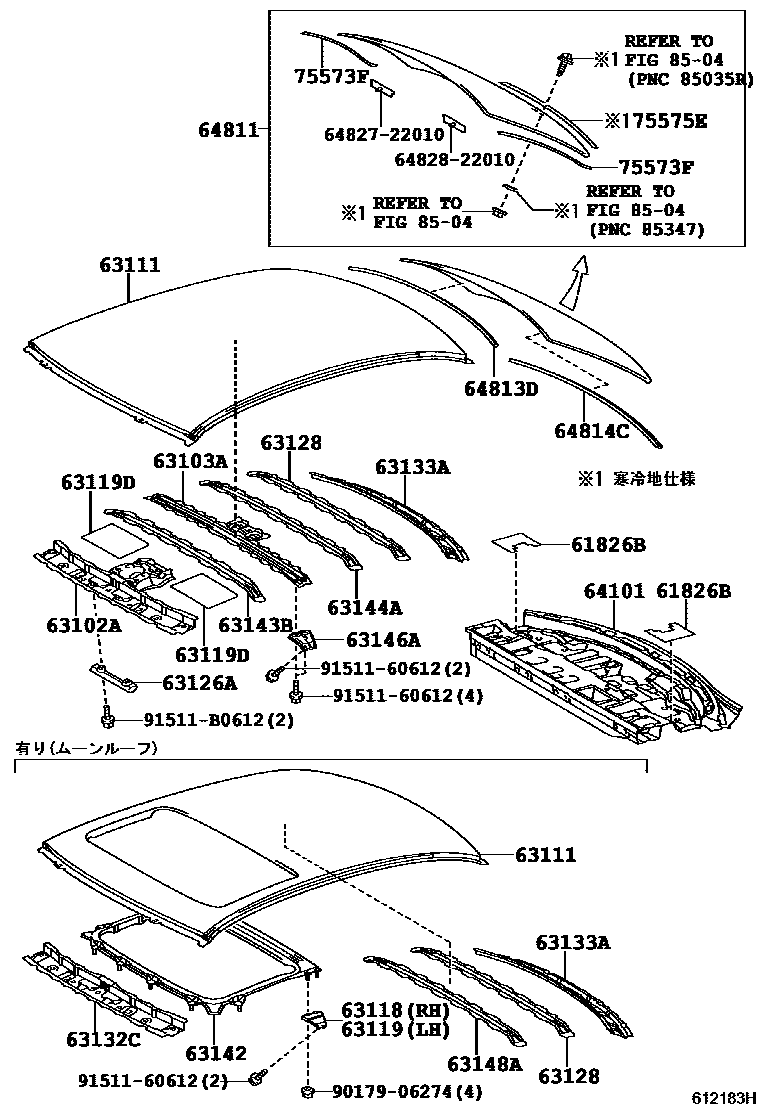

ROOF PANEL & BACK WINDOW GLASS
61826BPLATE, NOISE CONTROL, NO.3
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63119DPAD, ROOF PANEL, NO.1
63126ADAMPER, WINDSHIELD HEADER PANEL
63128REINFORCEMENT, ROOF PANEL, NO.6
63132CPANEL, WINDSHIELD HEADER, INNER
63133AFRAME, BACK WINDOW, UPPER
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1
63148AREINFORCEMENT, ROOF PANEL, NO.7
64101PANEL SUB-ASSY, UPPER BACK
64811GLASS, BACK WINDOW
64813DDAM, BACK WINDOW GLASS ADHESIVE
64814CDAM, BACK WINDOW GLASS ADHESIVE, LOWER
75573FMOULDING, BACK WINDOW, OUTSIDE
75575EMOULDING, BACK WINDOW, OUTSIDE LOWER
8504REAR WASHER
6482722010CLIP, BACK WINDOW GLASS, RH
main64827-22010
6482822010CLIP, BACK WINDOW GLASS, LH
main64828-22010
9017906274
main90179-06274
9151160612
main91511-60612
91511B0612
main91511-B0612
28 parts on this diagram · 3 diagrams in section
