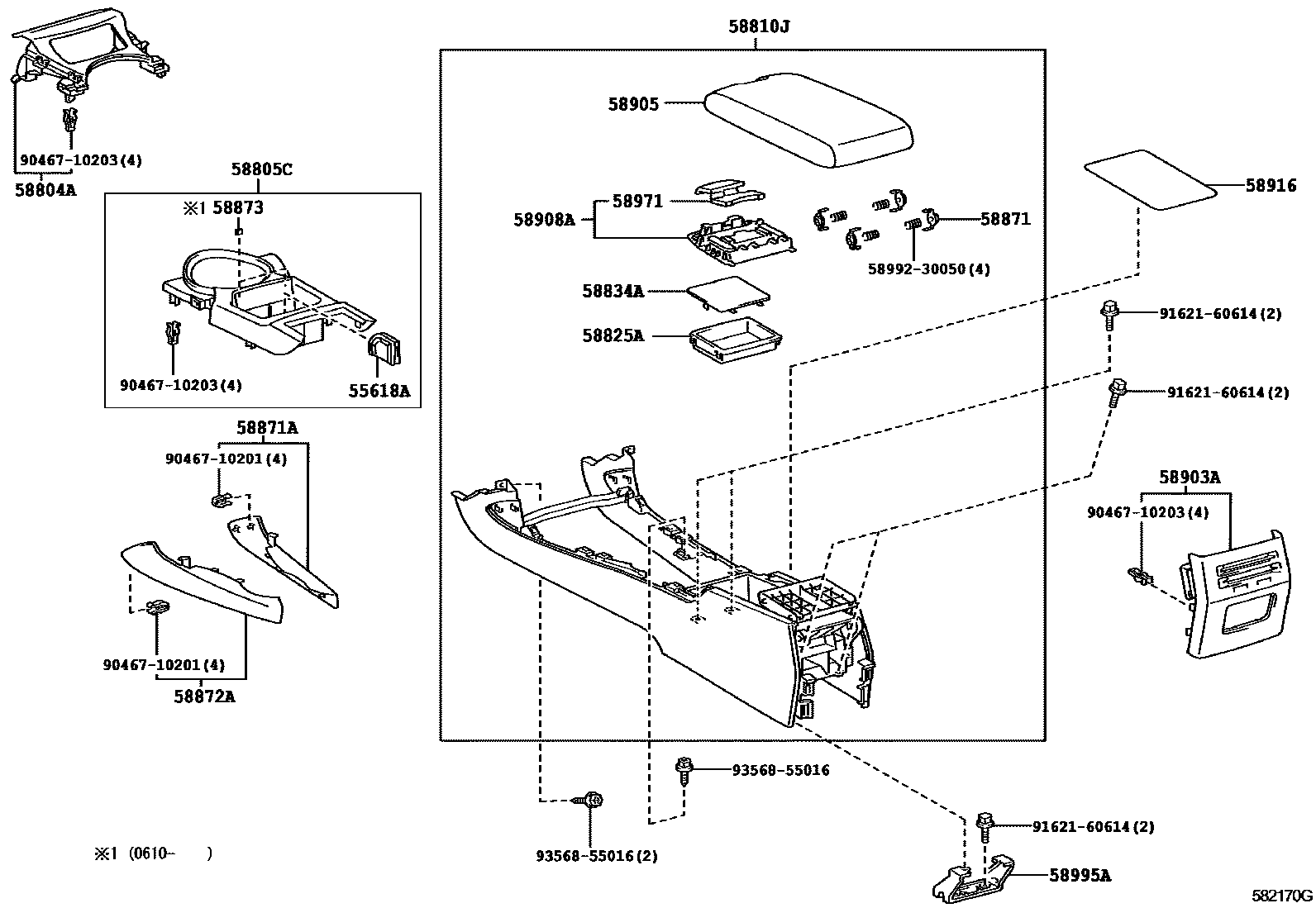

CONSOLE BOX & BRACKET
55618AHOLDER, CONSOLE BOX CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
DK.RED,TRIM4#
DK.RED,TRIM2#,4#
DK.RED,TRIM0#,4#
LT.BROWN,TRIM0#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
DK.RED,TRIM2#,4#
DK.RED,TRIM4#
DK.RED,TRIM0#,4#
LT.BROWN,TRIM0#
58810JBOX ASSY, CONSOLE
58825APOCKET, CONSOLE BOX
58834ACOVER, CONSOLE, LOWER
58871CUSHION, CONSOLE BOX
58871ACUSHION, CONSOLE BOX, NO.2
BLACK,TRIM0#,4#
BLACK,TRIM0#,2#,4#
58872ACUSHION, CONSOLE BOX, NO.2
BLACK,TRIM0#,4#
BLACK,TRIM0#,2#,4#
58873CUSHION, CONSOLE BOX, NO.3
58903APANEL SUB-ASSY, CONSOLE REAR END
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY,TRIM0#
BLACK,TRIM2#,4#
BLACK,TRIM4#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58916MAT, BOX BOTTOM
58971LOCK, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
5899230050BRACKET, CONSOLE BOX MOUNTING, UPPER LH
main58992-30050
9046710201
main90467-10201
9046710203
main90467-10203
9162160614
main91621-60614
9356855016
main93568-55016
21 parts on this diagram · 1 diagram in section
