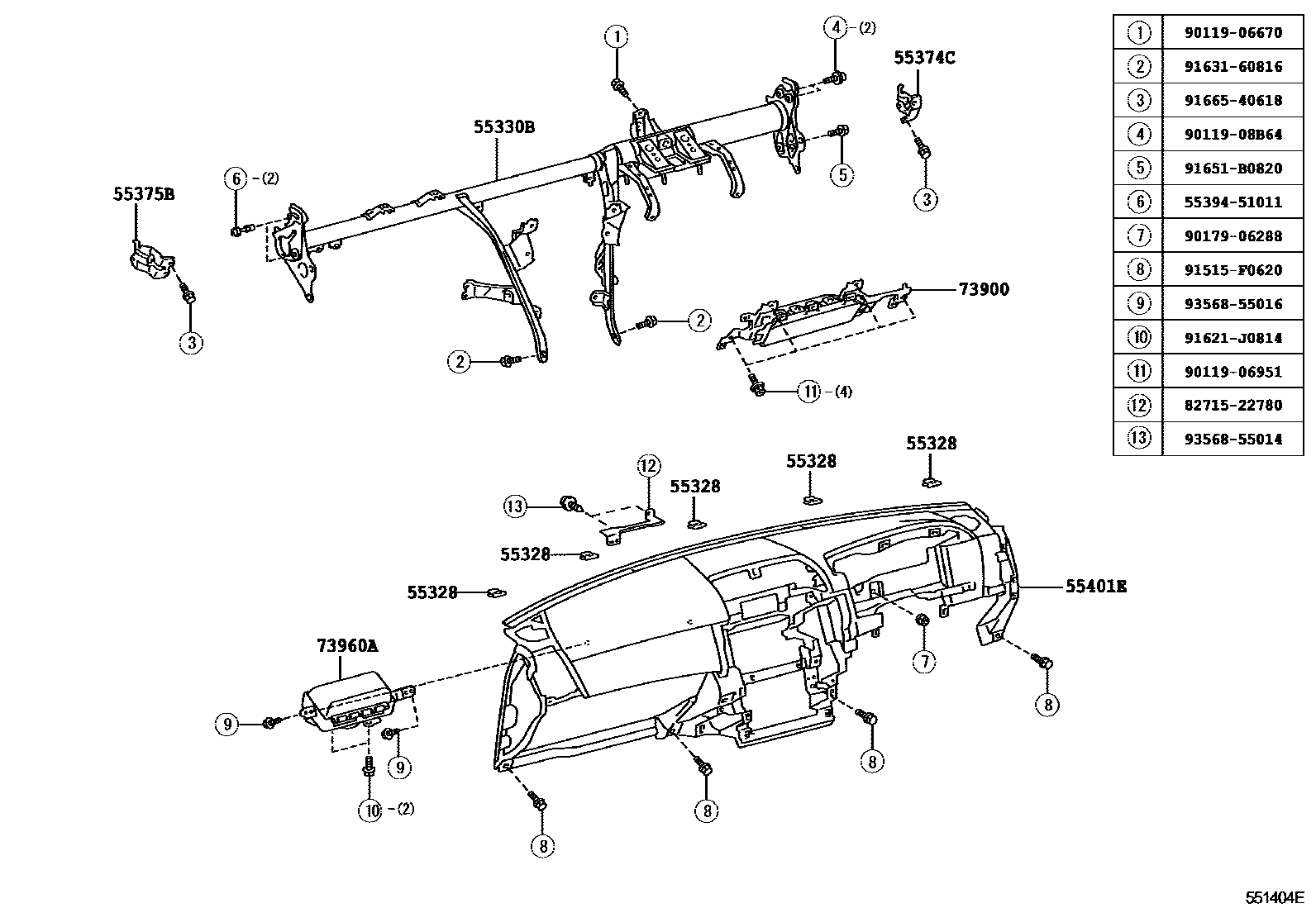

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1���������� 0005 1��������� 0006 1����� 0007 1����������

55328PIN, INSTRUMENT PANEL, NO.1

main55328-22060×5iGRX12#200610

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-22180iGRX120,121200610-200909

main55330-22190iGRX125200411-200610

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-30250iGRX12#200610

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-30140iGRX12#200411-200610

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-22050-C0iGRX121,125..250G,300G200411-200501

BLACK,TRIM0#,2#,4#

main55400-22051-C0iGRX121,125..250G,300G200501-200610

BLACK,TRIM0#,2#,4#

main55400-22052-C0iGRX12#200901

BLACK

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-22010-A0iGRX12#200411-200606

IVORY,TRIM0#

main73900-22010-C0iGRX120,121..250G,300GP200411-200606

BLACK,TRIM2#

main73900-22010-E0iGRX12#200411-200606

CLOVEBROWN,TRIM4#

main73900-22011-A0iGRX12#200610-200909

IVORY,TRIM0#

main73900-22011-C0iGRX120,121..250G,300GP200607-200610

BLACK,TRIM2#

main73900-22011-E0iGRX12#200610-200909

CLOVEBROWN,TRIM4#

main73900-22010-B0iGRX120,121..250G,300GP200604-200609

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-22030iGRX12#200610

5539451011BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-51011

8271522780BRACKET,WIRING HARNESS CLAMP

main82715-22780

9011906670

main90119-06670

9011906951

main90119-06951

9011908B64

main90119-08B64

9017906288

main90179-06288

91515F0620

main91515-F0620

91621J0814

main91621-J0814

9163160816

main91631-60816

91651B0820

main91651-B0820

9166540618

main91665-40618

9356855014

main93568-55014

9356855016

main93568-55016

20 parts on this diagram · 7 diagrams in section
