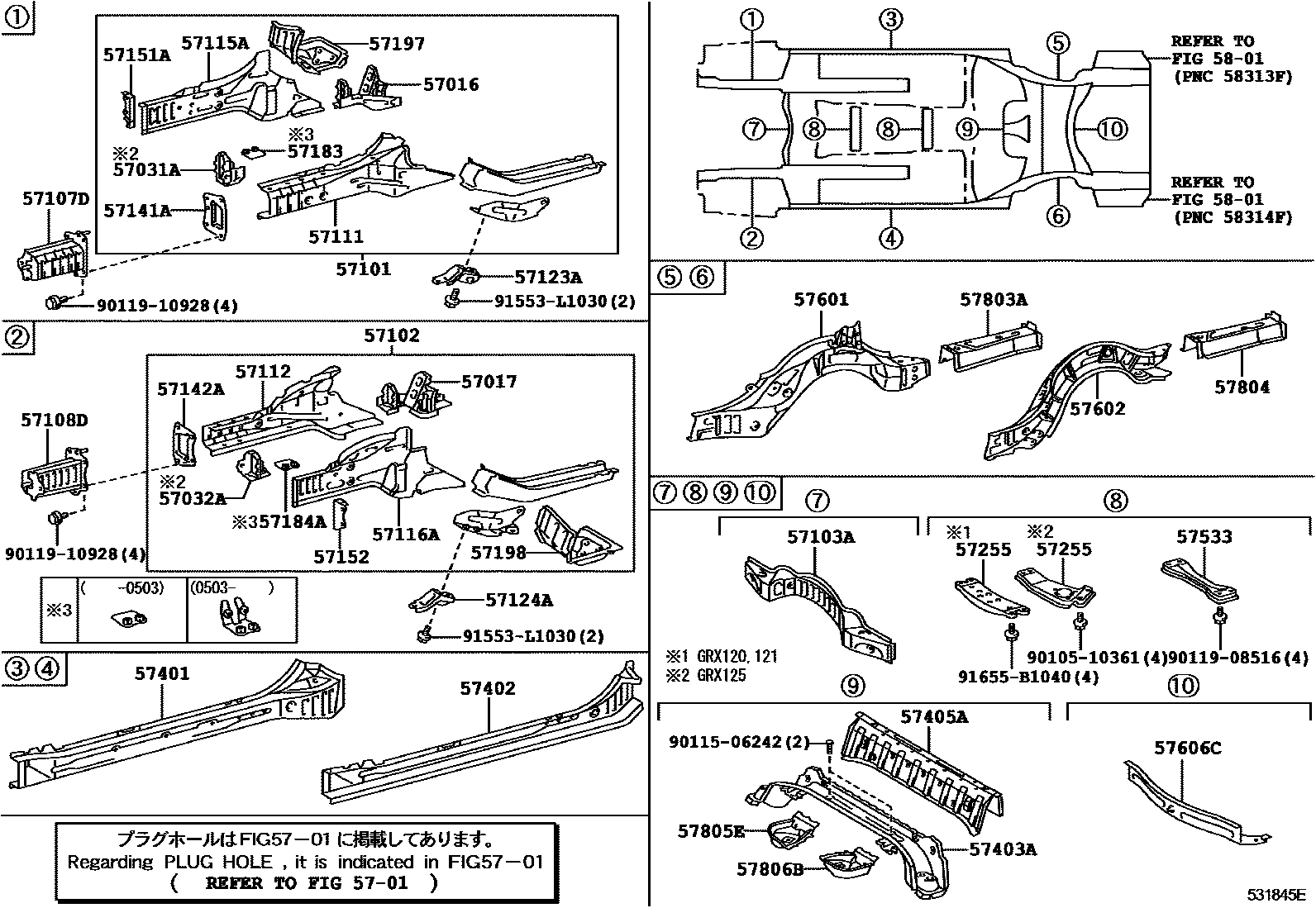

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30040i200610

main57016-30050i200411-200503

main57016-30051i200610

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30040i200411-200610

main57017-30050i200411-200503

main57017-30051i200503-200610

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-30010i200411-200610

57032ABRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH

main57032-30010i200411-200610

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30162i200411-200503

main57101-30163i200503-200610

main57101-30172i200411-200503

main57101-30174i200503-200610

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30141i200411-200503

main57102-30142i200503-200504

main57102-30143i200505-200610

main57102-30151i200411-200502

main57102-30153i200503-200504

main57102-30154i200505-200610

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-30020i200411-200412

main57103-30021i200412-200610

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-22160i200411-200610

main57107-22170i200610

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-22200i200411-200610

main57108-22210i200610

57111MEMBER, FRONT SIDE, RH

main57111-30082i200411-200610

main57111-30092i200411-200610

57112MEMBER, FRONT SIDE, LH

main57112-30081i200411-200505

main57112-30082i200505-200610

main57112-30101i200411-200503

main57112-30102i200505-200610

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-30060i200411-200610

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-30030i200411-200610

57123AREINFORCEMENT, STRUT BAR BRACKET, RH

main57305-30010i200411-200610

main57305-30020i200610

57124AREINFORCEMENT, STRUT BAR BRACKET, LH

main57306-30010i200610

main57306-30020i200610

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-30040i200411-200610

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-30040i200411-200610

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30040i200411-200610

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30040i200411-200610

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30020i200411-200503

main57183-30030i200503-200610

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57183-30020i200411-200503

main57184-30020i200503-200610

57197BOX, TORQUE, FRONT RH

main57197-30040i200411-200610

57198BOX, TORQUE, FRONT LH

main57198-30041i200411-200610

57255MEMBER, ENGINE REAR MOUNTING

main57209-30030i200610

main57255-30130i200411-200610

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-22220i200411-200610

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-22220i200411-200610

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57430-30011i200411-200610

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-22060i200411-200412

main57405-22061i200610

57533BRACE, FRONT FLOOR, CENTER

main57533-30030i200610-200801

main57533-30040i200610-200801

main57533-30050i200802

main57533-30060i200802

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-22920i200411-200610

main57601-22922i200902

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-22915i200411-200503

main57602-22916i200503-200610

main57602-22918i200902

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-30060i200411-200610

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-30040i200411-200610

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-30050i200411-200502

57805EREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-30060i200411-200610

57806BREINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-30050i200411-200610

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9010510361

main90105-10361

9011506242

main90115-06242

9011908516

main90119-08516

9011910928

main90119-10928

91553L1030

main91553-L1030

91655B1040

main91655-B1040
