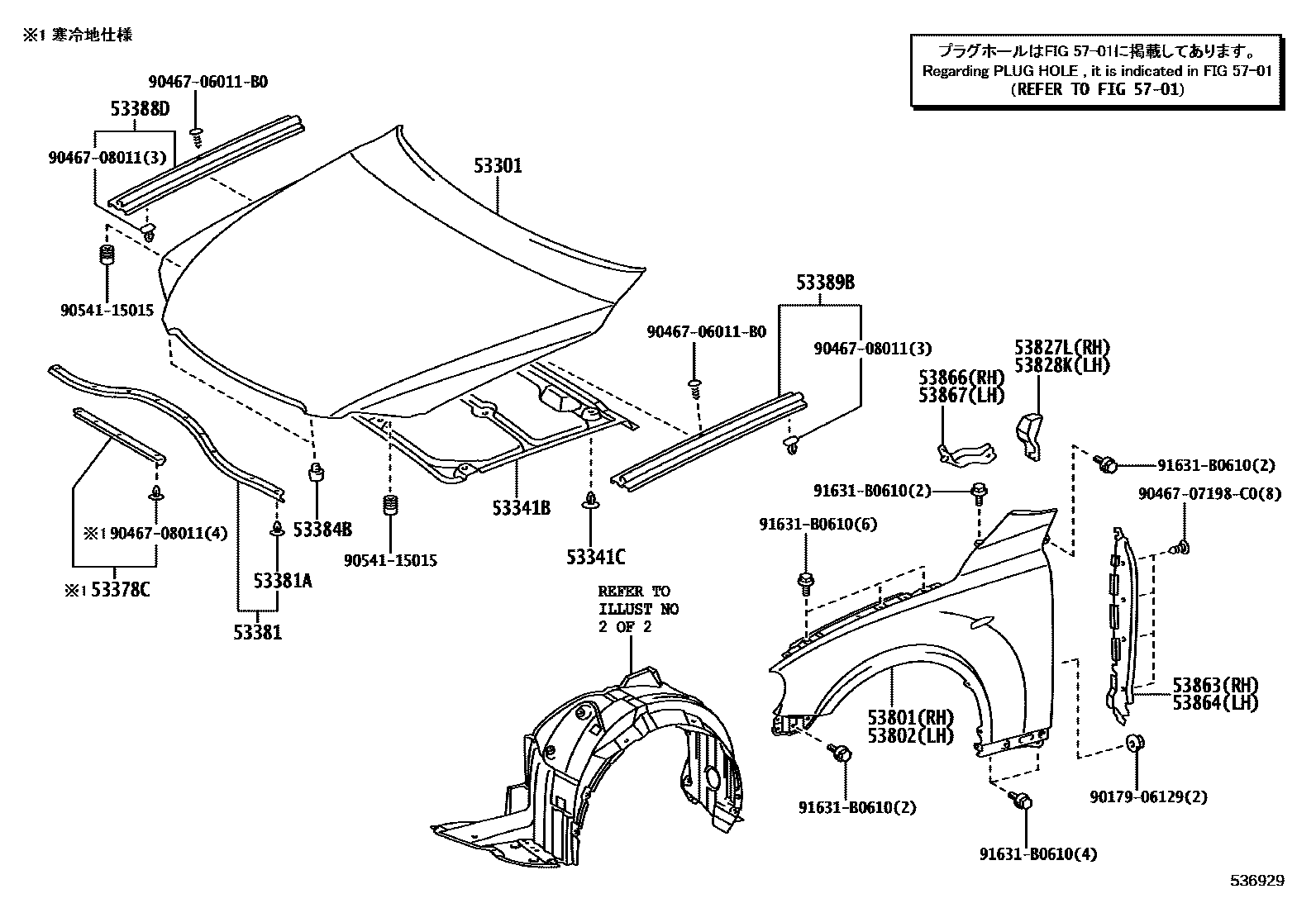

HOOD & FRONT FENDER

0001 1 0002 1��������

53301HOOD SUB-ASSY

main53301-22420iGRX12#200411-200610

53341BINSULATOR, HOOD

main53341-22180iGRX12#200411-200610

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×8iGRX12#200411-200610

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-22080iGRX12#200411-200610

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-22190iGRX12#200411-200610

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iGRX12#200411-200610

53384BCUSHION, HOOD, CENTER

main53384-22080×2iGRX12#200610

main53384-60050×2iGRX12#200411-200610

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-22070iGRX12#200411-200610

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-22060iGRX12#200411-200610

53801FENDER SUB-ASSY, FRONT RH

main53811-22A00iGRX12#200411-200610

main53811-22A10iGRX12#200610-200909

53802FENDER SUB-ASSY, FRONT LH

main53812-22A00iGRX12#200411-200610

main53812-22A10iGRX12#200610-200909

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-22040iGRX12#200411-200610

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-22040iGRX12#200411-200610

53863SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH

main53863-22040iGRX12#200411-200610

53864SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH

main53864-22050iGRX12#200411-200610

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-22120iGRX12#200411-200610

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-22120iGRX12#200411-200610

5701

9017906129

main90179-06129

9046706011B0

main90467-06011B0

9046707198C0

main90467-07198C0

9046708011

main90467-08011

9054115015

main90541-15015

91631B0610

main91631-B0610

24 parts on this diagram · 2 diagrams in section
