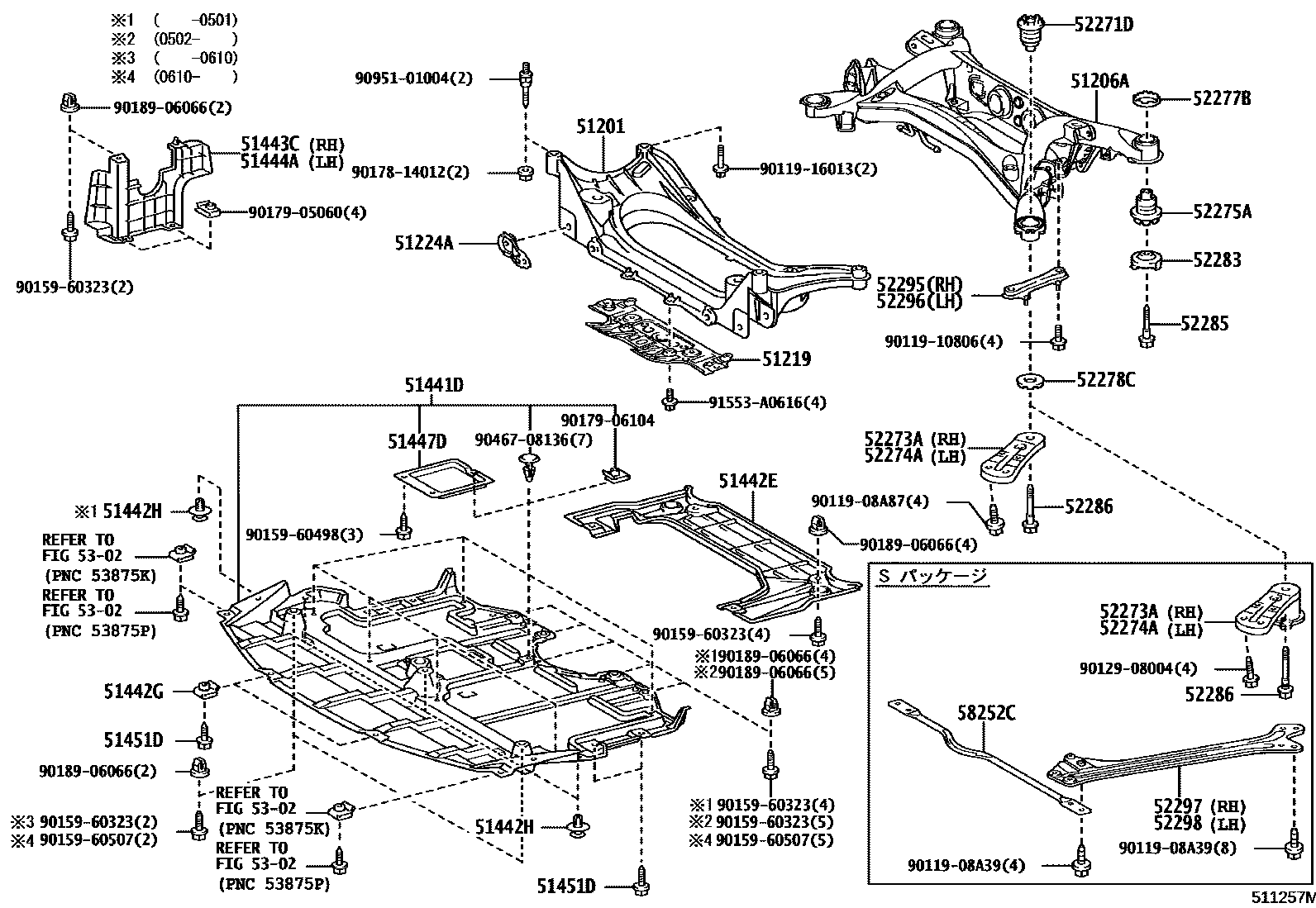

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30130iGRX120,121200411-200610

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30080iGRX12#200411-200812

main51206-30081iGRX12#200901

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30030iGRX120,121200411-200504

main51219-30031iGRX120,121200505-200610

51224APLATE, FRONT SUSPENSION MENBER BRACE

main51224-30030iGRX120,121200411-200610

51441DCOVER, ENGINE UNDER

main51410-22020iGRX120,121200411-200501

main51410-22021iGRX120,121200502-200503

main51410-22022iGRX120,121200504-200610

main51410-22030iGRX125200411-200501

main51410-22031iGRX125200502-200610

51442ECOVER, ENGINE UNDER, NO.2

main51442-30130iGRX120,121200411-200709

main51442-30180iGRX120,121200710-200907

main51442-30181iGRX120,121200908-200909

51442GCLIP, ENGINE UNDER COVER, NO.1

main90179-05025iGRX12#200411-200502

main90179-05060iGRX125200610-200909

main90467-05166iGRX12#200503-200610

51442HCLIP, ENGINE UNDER COVER, NO.2

main90467-07166iGRX12#200411-200909

51443CCOVER, ENGINE UNDER, REAR RH

main51443-30140iGRX120,121200411-200906

main51443-30141iGRX120,121200907-200909

51444ACOVER, ENGINE UNDER, REAR LH

main51444-30170iGRX120,121200411-200906

main51444-30171iGRX120,121200907-200909

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-30080iGRX120,121200411-200610

51451DSCREW, NO.1

main90159-60477iGRX12#200411-200909

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30110iGRX12#200411-200610

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-30080iGRX12#200411-200610

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-30080iGRX12#200411-200610

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30120iGRX12#200411-200610

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30060iGRX12#200411-200610

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30050iGRX12#200411-200610

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30060iGRX12#200411-200610

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-22020iGRX12#200509-200610

main52285-30021iGRX12#200411-200509

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-30010iGRX12#200411-200506

main52286-53020iGRX12#200507-200610

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30030iGRX12#200411-200610

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30030iGRX12#200411-200610

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-30010

main52297-53030

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-30010

main52298-53030

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

58252CBRACE, FLOOR PANEL, REAR NO.1

9011908A39

main90119-08A39

9011908A87

main90119-08A87

9011910806

main90119-10806

9011916013

main90119-16013

9012908004

main90129-08004

9015960323

main90159-60323

9015960498

main90159-60498

9015960507

main90159-60507

9017814012

main90178-14012

9017905060

main90179-05060

9017906104

main90179-06104

9018906066

main90189-06066

9046708136

main90467-08136

9095101004

main90951-01004

91553A0616

main91553-A0616

42 parts on this diagram · 2 diagrams in section
