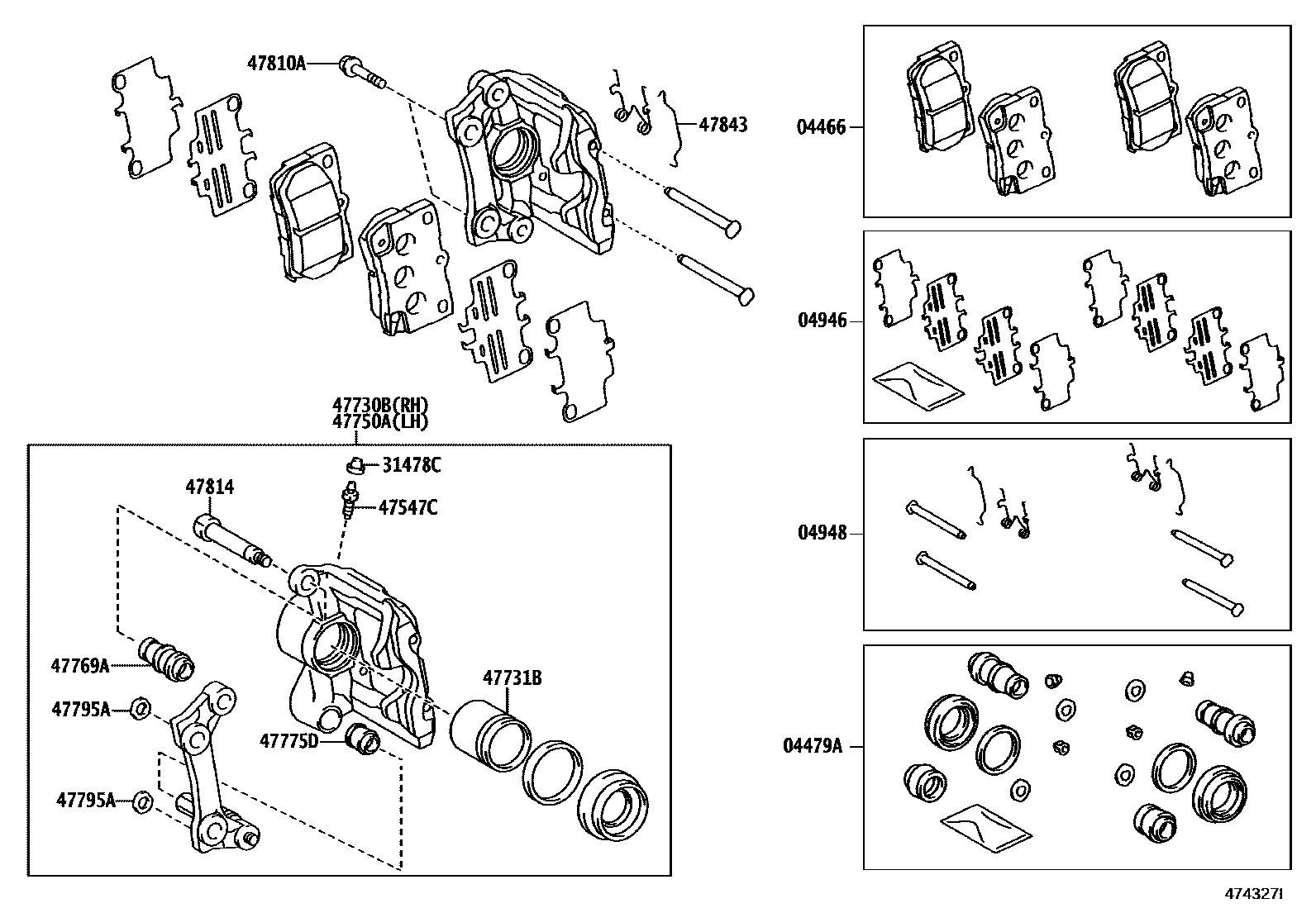

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30230iGRX12#200411-200610

main04466-53010iGRX125200610

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30340iGRX12#200411-200511

sub04479-30550

main04479-30450iGRX12#200511-200709

sub04479-30510

main04479-30510iGRX12#200709

sub04479-53070

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30110iGRX12#200411-200610

main04946-30110iGRX12#200411-200610

main04946-30110iGRX12#200610

04948FITTING KIT, DISC BRAKE, REAR

main04948-30090iGRX12#200411-200511

sub04948-30140

main04948-30140iGRX12#200511-200705

sub04948-30220

main04948-30220iGRX12#200705

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGRX12#200411-200610

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iGRX12#200411-200610

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-30300iGRX12#200411-200511

sub47830-30301

main47830-30301iGRX12#200511-200610

main47830-30301iGRX120,121200610-200906

main47830-53051iGRX125200610-200909

main47830-53051iGRX120,121200906-200909

47731BPISTON, REAR DISC BRAKE

main47831-30300iGRX12#200411-200610

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-30300iGRX12#200411-200511

sub47850-30301

main47850-30301iGRX12#200511-200610

main47850-30301iGRX120,121200610-200906

main47850-53051iGRX125200610-200909

main47850-53051iGRX120,121200906-200909

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300iGRX12#200411-200610

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-30341iGRX12#200411-200610

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300iGRX12#200411-200610

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525iGRX12#200411-200909

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iGRX12#200411-200610

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300iGRX12#200411-200704

main47843-30340iGRX12#200705-200909

15 parts on this diagram · 1 diagram in section
