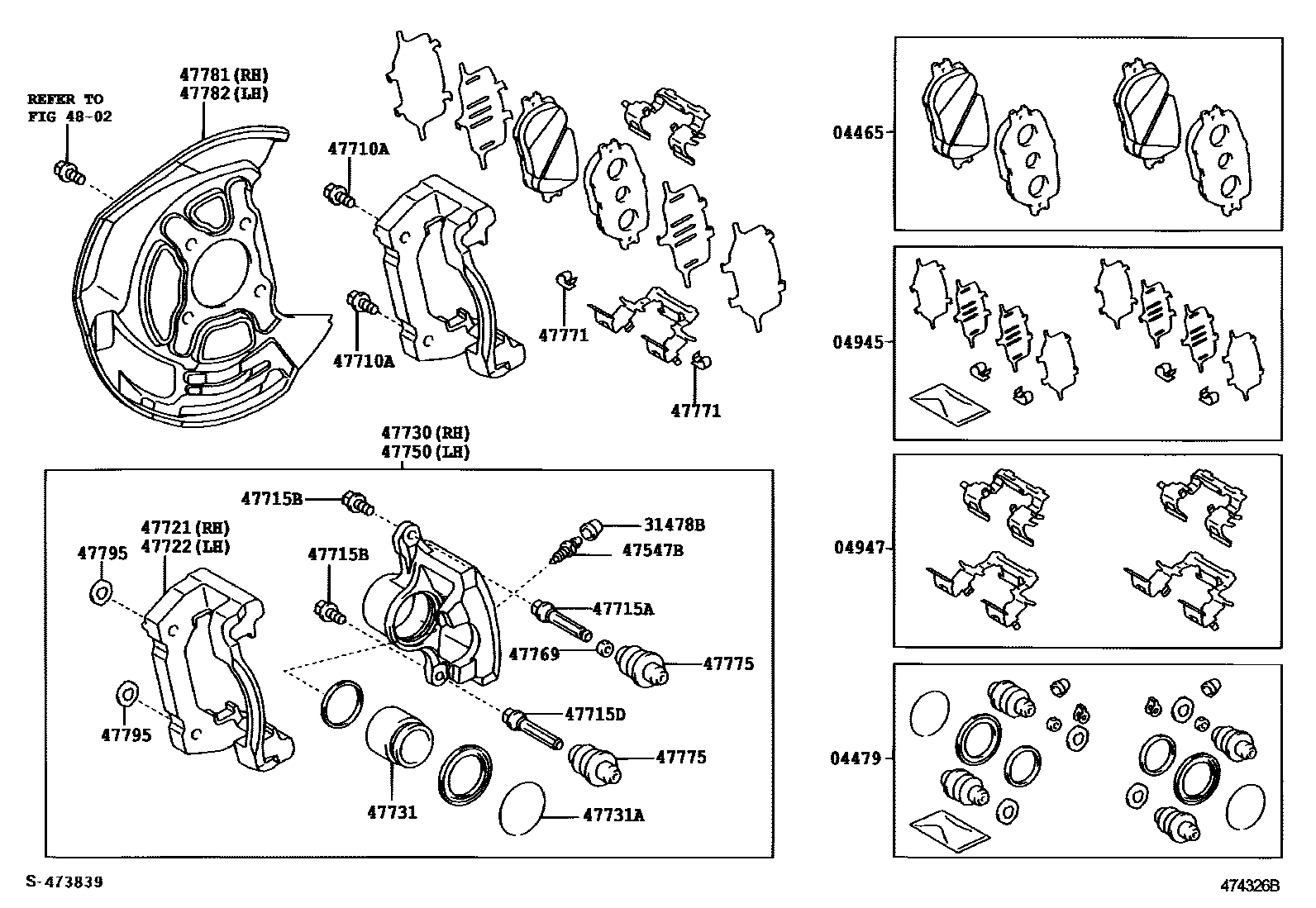

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
sub04465-30480
04479CYLINDER KIT, DISC BRAKE, FRONT
sub04478-30260
sub04478-30260
sub04478-30260
sub04478-30260
sub04478-30260
04945SHIM KIT, ANTI SQUEAL, FRONT
04947FITTING KIT, DISC BRAKE, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731PISTON, FRONT DISC BRAKE
sub47731-30570
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47771PLATE, PAD WEAR INDICATOR, NO.1
47781COVER, DISC BRAKE DUST, FRONT RH
47782COVER, DISC BRAKE DUST, FRONT LH
47795PLATE, FRONT DISC BRAKE CALIPER, NO.1
4802
23 parts on this diagram · 1 diagram in section
