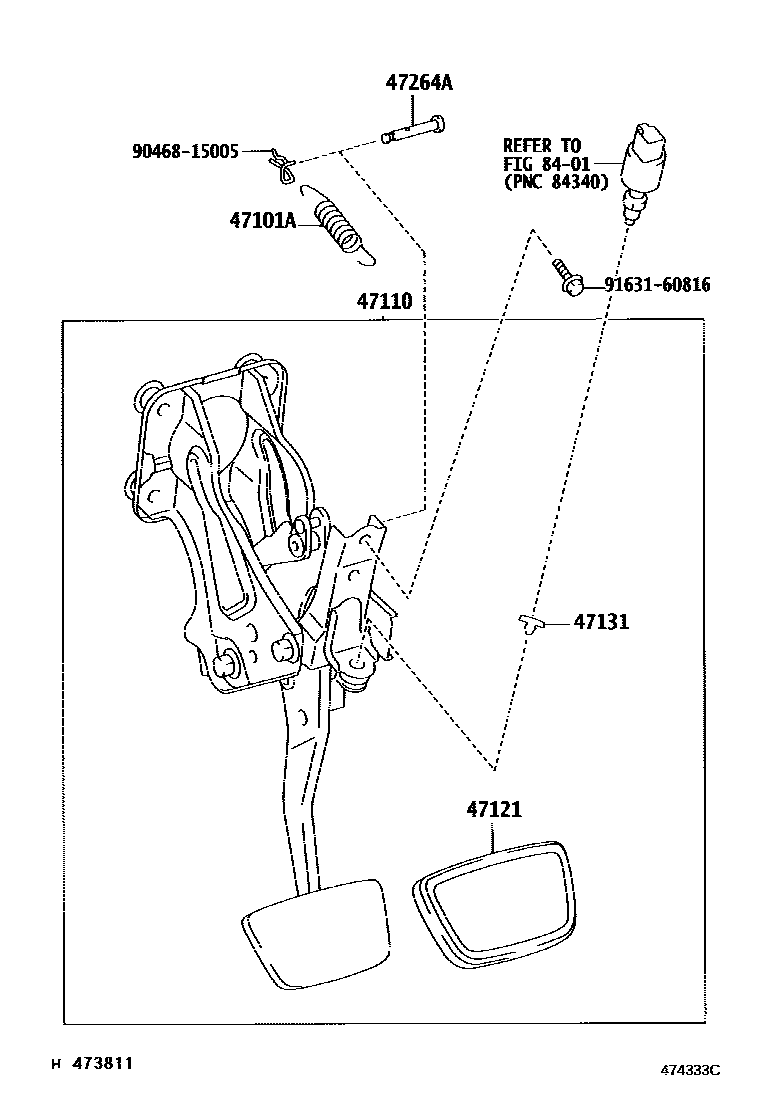

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13009iGRX12#200411-200610

47110SUPPORT ASSY, BRAKE PEDAL

main47110-22400iGRX12#..250G,300G200411-200504

main47110-22401iGRX12#..250G,300G200610-200906

main47110-22402iGRX12#..250G,300G200907

main47110-22420iGRX120; GRX121..300GP200411-200610

main47110-22421iGRX120,121..250G,300G200907

main47110-22430iGRX120,121..250G,300G; GRX121..300GP200610-200906

main47110-22431iGRX120,121..250G,300G; GRX121..300GP200907

47121PAD, BRAKE PEDAL

main47121-50020iGRX12#200610

main47121-22040iGRX120; GRX121..300GP200411-200610

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGRX12#200411-200610

47264APIN(FOR PUSH ROD)

main90249-06180iGRX12#200610

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046815005

main90468-15005

9163160816

main91631-60816

8 parts on this diagram · 1 diagram in section
