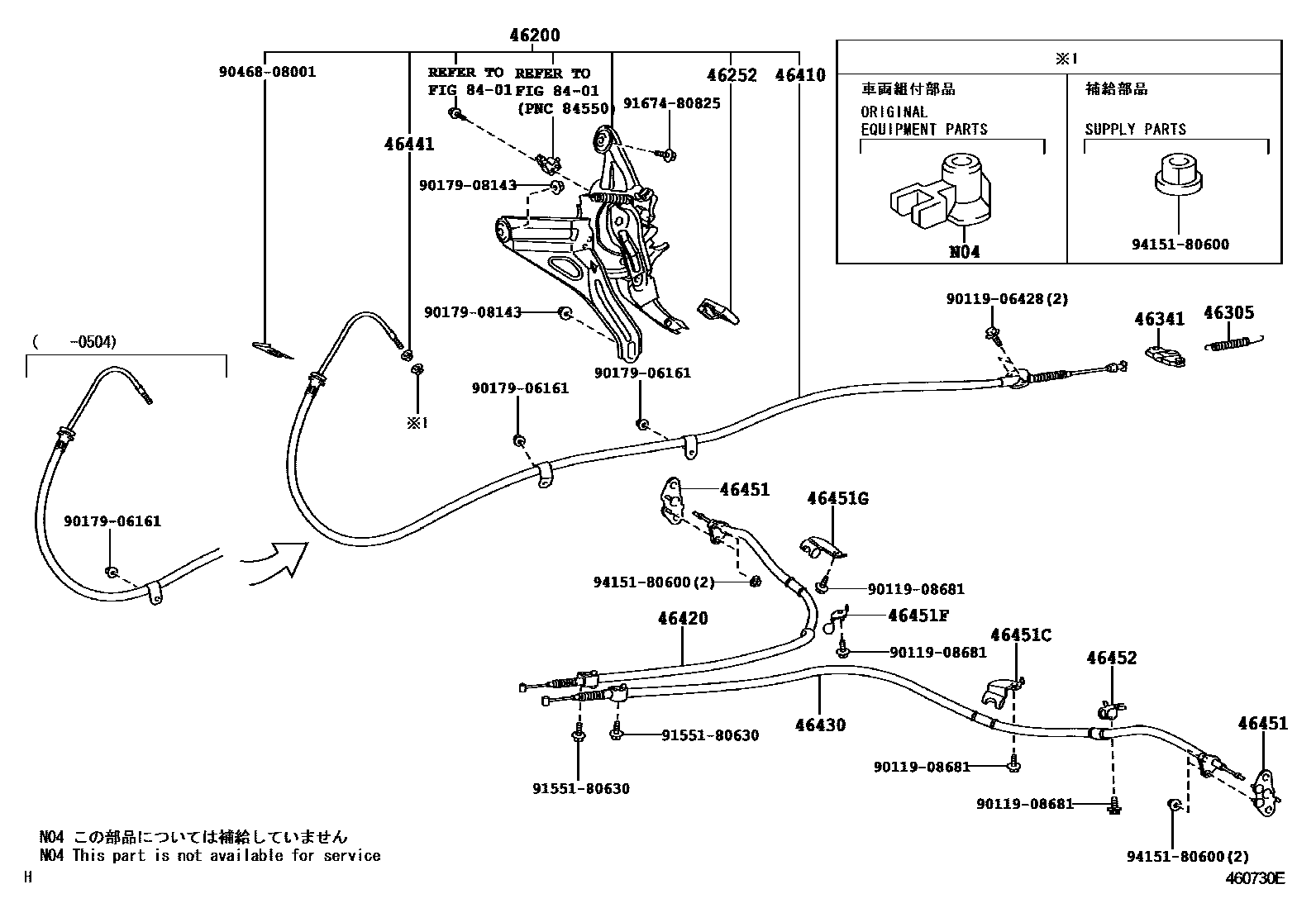

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-30410iGRX12#200411-200610

main46200-30440iGRX12#200610

sub46210-22360

sub46410-30780

sub46441-12010

sub90468-08001

46252PAD, PARKING PEDAL

main46252-22010iGRX12#200411-200610

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-50020iGRX12#200411-200610

46341EQUALIZER, PARKING BRAKE

main46341-22060iGRX12#200411-200610

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-22290iGRX12#200411-200610

main46410-30780iGRX12#200610

sub46410-30781

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-22390iGRX12#200411-200610

sub46420-22391

sub46601-30231

sub46602-30231

46430CABLE ASSY, PARKING BRAKE, NO.3

main46420-22390iGRX12#200411-200610

sub46420-22391

sub46601-30231

sub46602-30231

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGRX12#200411-200506

main46441-51010iGRX12#200507-200610

46451BRACKET, CABLE SUPPORT

main46451-50050iGRX12#200411-200909

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30180iGRX12#200411-200610

46451FBRACKET, CABLE SUPPORT

main46451-22100iGRX12#200411-200610

46451GBRACKET, CABLE SUPPORT

main46451-30190iGRX12#200411-200610

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30200iGRX12#200411-200610

8401

9011906428

main90119-06428

9011908681

main90119-08681

9017906161

main90179-06161

9017908143

main90179-08143

9046808001

main90468-08001

9155180630

main91551-80630

9167480825

main91674-80825

9415180600

main94151-80600

22 parts on this diagram · 2 diagrams in section
