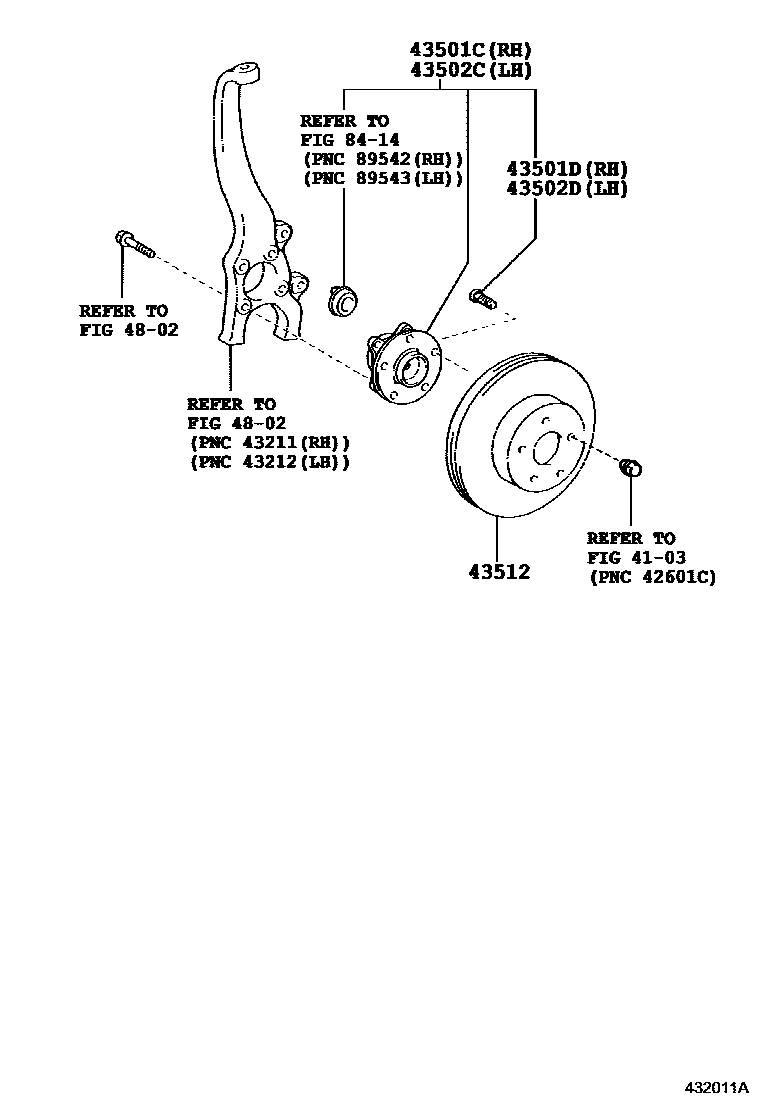

FRONT AXLE HUB

0001 1 0002 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30010iGRX120,121200411-200610

main43550-30030iGRX125200411-200610

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5iGRX12#200411-200610

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-30010iGRX120,121200411-200610

main43560-30030iGRX125200411-200610

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5iGRX12#200411-200610

43512DISC, FRONT

main43512-30310×2iGRX12#200411-200610

main43512-30320iGRX120,121..250G,300G; GRX121..300GP200610-200909

main43516-30010iGRX120,121..250G,300G; GRX121..300GP200610-200909

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

8414ABS & VSC

→ Go to FIG 84-14

8 parts on this diagram · 2 diagrams in section
