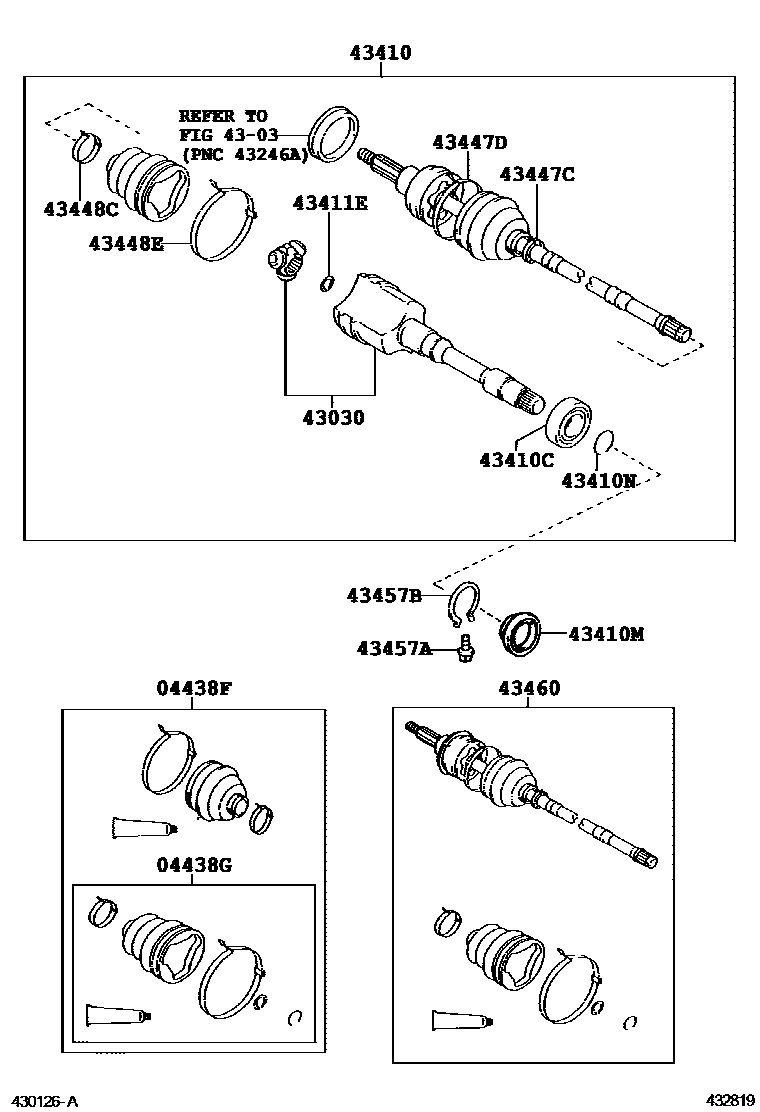

FRONT DRIVE SHAFT

0001 1��� 0002 1���

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-30010iGRX125200411-200610

sub04427-30080

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-30070iGRX125200411-200610

sub04437-30071

4303

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-30020iGRX125200411-200610

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-30020iGRX125200411-200610

sub43410-30021

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36001iGRX125200411-200610

sub90363-36004

main90363-36010iGRX125200806

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35030iGRX125200411-200610

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iGRX125200411-200610

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-20065iGRX125200411-200610

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22030iGRX125200411-200610

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22040iGRX125200411-200610

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01804iGRX125200411-200610

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01803iGRX125200411-200610

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90901-19060iGRX125200411-200610

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90520-65002iGRX125200411-200610

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39215iGRX125200411-200610

sub43460-39216

16 parts on this diagram · 2 diagrams in section
