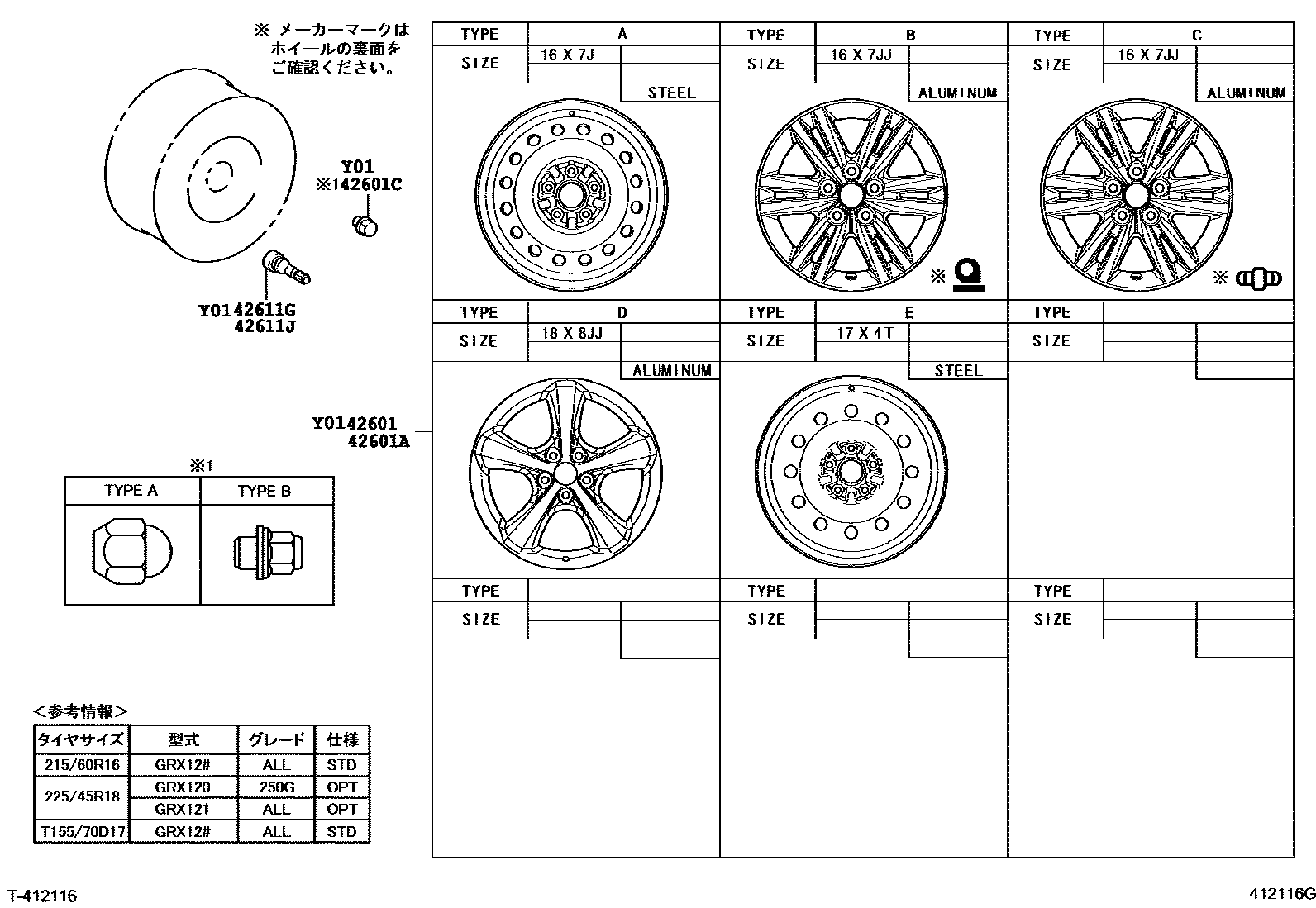

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-22A20×4iGRX12#200411-200610

main42611-22A30×4iGRX12#..250G,300G200610

main42611-22A50×4iGRX121..300GP200610

main42611-22A00×4iGRX120,121200411-200610

sub4261A-22030

main42611-22A10×4iGRX125200506-200610

42601AWHEEL, DISC (FOR SPARE)

main42611-50090iGRX12#200610

sub42611-50091

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iGRX12#200610-200909

main90942-01021×20iGRX120200411-200610

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iGRX120200411-200610

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGRX120200411-200610

5 parts on this diagram · 3 diagrams in section
