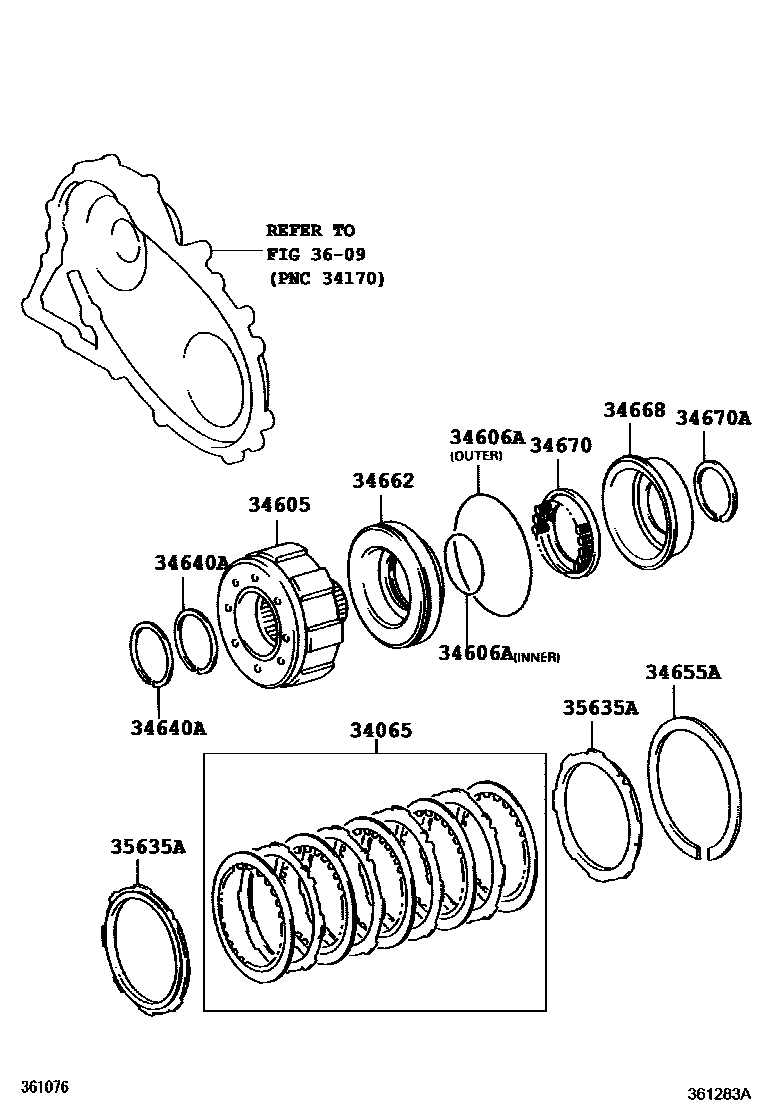

TRANSFER DIRECT CLUTCH, LOW BRAKE & SUPPORT

34065DISC SET, CENTER DIFFERENTIAL CLUTCH

main34065-30010iGRX125200411-200610

34605DRUM SUB-ASSY, TRANSFER DIRECT CLUTCH

main34605-30010iGRX125200411-200610

34606ARING, O (FOR TRANSFER DIRECT CLUTCH PISTON)

main90301-56004iGRX125200411-200610

main90301-99058iGRX125200411-200610

34640ARING, SEAL(FOR TRANSFER CENTER SUPPORT)

main35617-30030iGRX125200411-200909

34655ARING, SNAP (FOR TRANSFER DIRECT CLUTCH FLANGE)

main90521-99001iGRX125200411-200610

34662PISTON, CENTER DIFFERENTIAL CLUTCH

main34662-30010iGRX125200411-200610

34668BALANCER, CENTER DIFFERENTIAL CLUTCH PRESSURE

main34668-30010iGRX125200411-200610

34670SPRING ASSY, TRANSFER DIRECT CLUTCH RETURN

main34670-30010iGRX125200411-200610

34670ARING, SNAP (FOR TRANSFER DIRECT CLUTCH RETURN SPRING)

main90520-53002iGRX125200411-200610

35635AFLANGE, CENTER DIFFERENTIAL CLUTCH DISC

main35635-30070iGRX125200411-200610

main35635-30080iGRX125200411-200610

main35635-30090iGRX125200411-200610

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

11 parts on this diagram · 1 diagram in section
