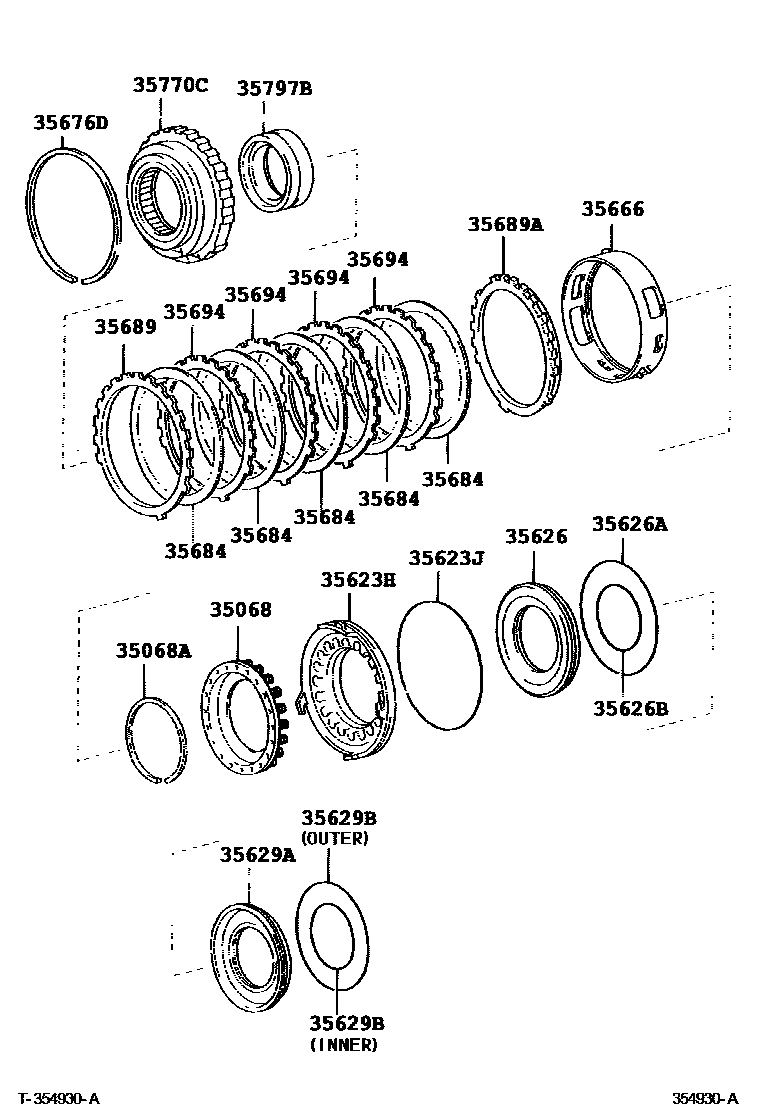

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A960E 0002 1A750H

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-22010iGRX120,121200411-200610

main35068-60010iGRX125200411-200610

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iGRX120,121200411-200610

main90520-61001iGRX125200411-200610

35623HPISTON, 1ST & REVERSE BRAKE

main35623-22030iGRX120,121200411-200610

main35623-50030iGRX125200411-200610

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGRX125200411-200610

main90301-99151iGRX120,121200411-200610

35626SLEEVE, BRAKE REACTION

main35626-22020iGRX120,121200411-200610

main35626-50010iGRX125200411-200610

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99144iGRX125200411-200610

main90301-99155iGRX120,121200411-200610

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-69009iGRX120,121200411-200610

main90301-79003iGRX125200411-200610

35629APISTON, BRAKE, NO.4

main35629-22030iGRX120,121200411-200610

main35629-50020iGRX125200411-200610

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-56007iGRX120,121200411-200610

main90301-67006iGRX125200411-200610

main90301-94004iGRX120,121200411-200610

main90301-99084iGRX125200411-200610

35666TUBE, BRAKE APPLY

main35666-22020iGRX120,121200411-200610

main35666-50010iGRX125200411-200610

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99131iGRX125200411-200610

main90521-99133iGRX120,121200411-200610

35684DISC, BRAKE, NO.4

main35684-22010×5iGRX120,121200411-200610

main35684-50010×4iGRX125200411-200610

35689FLANGE, BRAKE, NO.4

main35689-22020iGRX120,121200411-200610

main35689-22030iGRX120,121200411-200610

main35689-22040iGRX120,121200411-200610

main35689-22050iGRX120,121200411-200610

main35689-22060iGRX120,121200411-200610

main35689-22070iGRX120,121200411-200610

main35689-22080iGRX120,121200411-200610

main35689-22090iGRX120,121200411-200610

main35689-60100iGRX125200411-200610

main35689-60110iGRX125200411-200610

main35689-60120iGRX125200411-200610

main35689-60130iGRX125200411-200610

main35689-60140iGRX125200411-200610

main35689-60150iGRX125200411-200610

main35689-60160iGRX125200411-200610

main35689-60170iGRX125200411-200610

35689AFLANGE, BRAKE, NO.4

main35689-22010iGRX120,121200411-200610

35694PLATE, BRAKE, NO.4

main35694-22010×4iGRX120,121200411-200610

main35694-60011×4iGRX125200411-200610

35770CCLUTCH ASSY, 1WAY NO.3

main35770-22070iGRX120,121200411-200610

main35770-50010iGRX125200411-200610

35797BRACE, 1 WAY CLUTCH, INNER

main35797-22030iGRX120,121200411-200610

main35797-50030iGRX125200411-200601

main35797-50031iGRX125200601-200610

17 parts on this diagram · 2 diagrams in section
