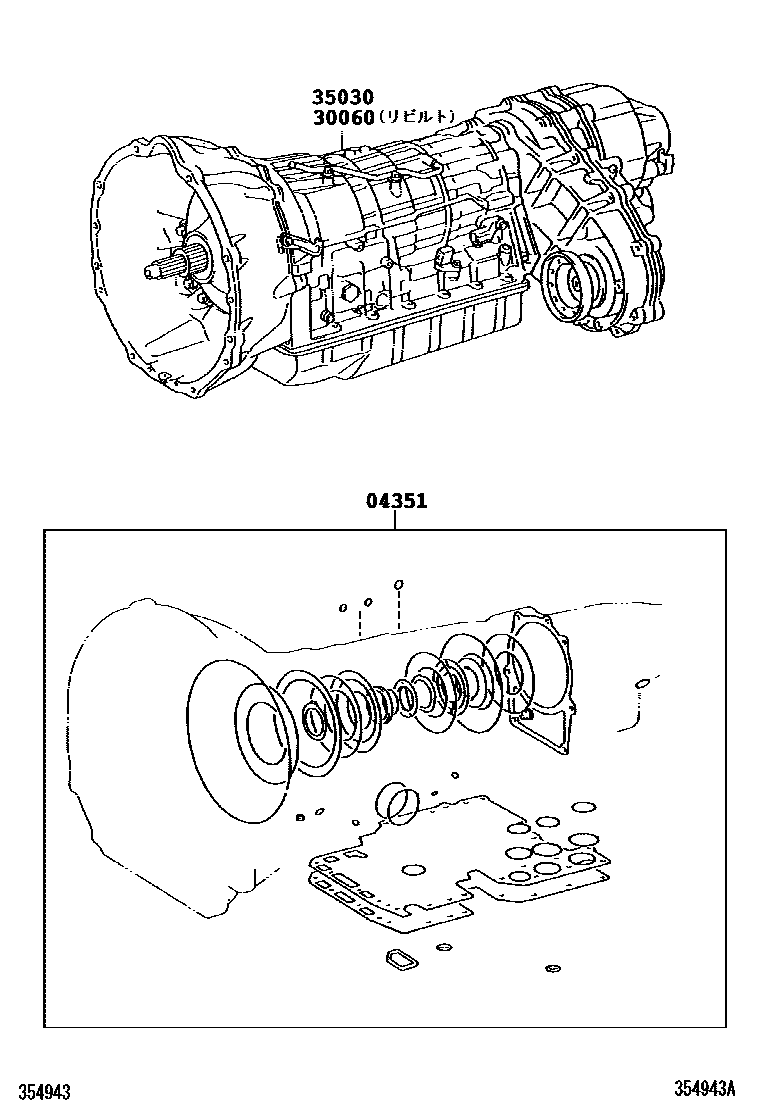

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A750H 0002 1A960E

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-22210iGRX120200411-200610

main04351-30541iGRX120,121200610-200801

main04351-30970iGRX120,121200801

main04351-30980iGRX125200610

main04351-60270iGRX121200411-200610

main04351-60280iGRX125200411-200610

30060TRANSMISSION ASSY, W/TRANSFER, REBUILT

main30060-22080iGRX125200411-200610

35030TRANSMISSION ASSY, AUTOMATIC W/TRANSFER

main35030-22080iGRX125200411-200610

3 parts on this diagram · 2 diagrams in section
