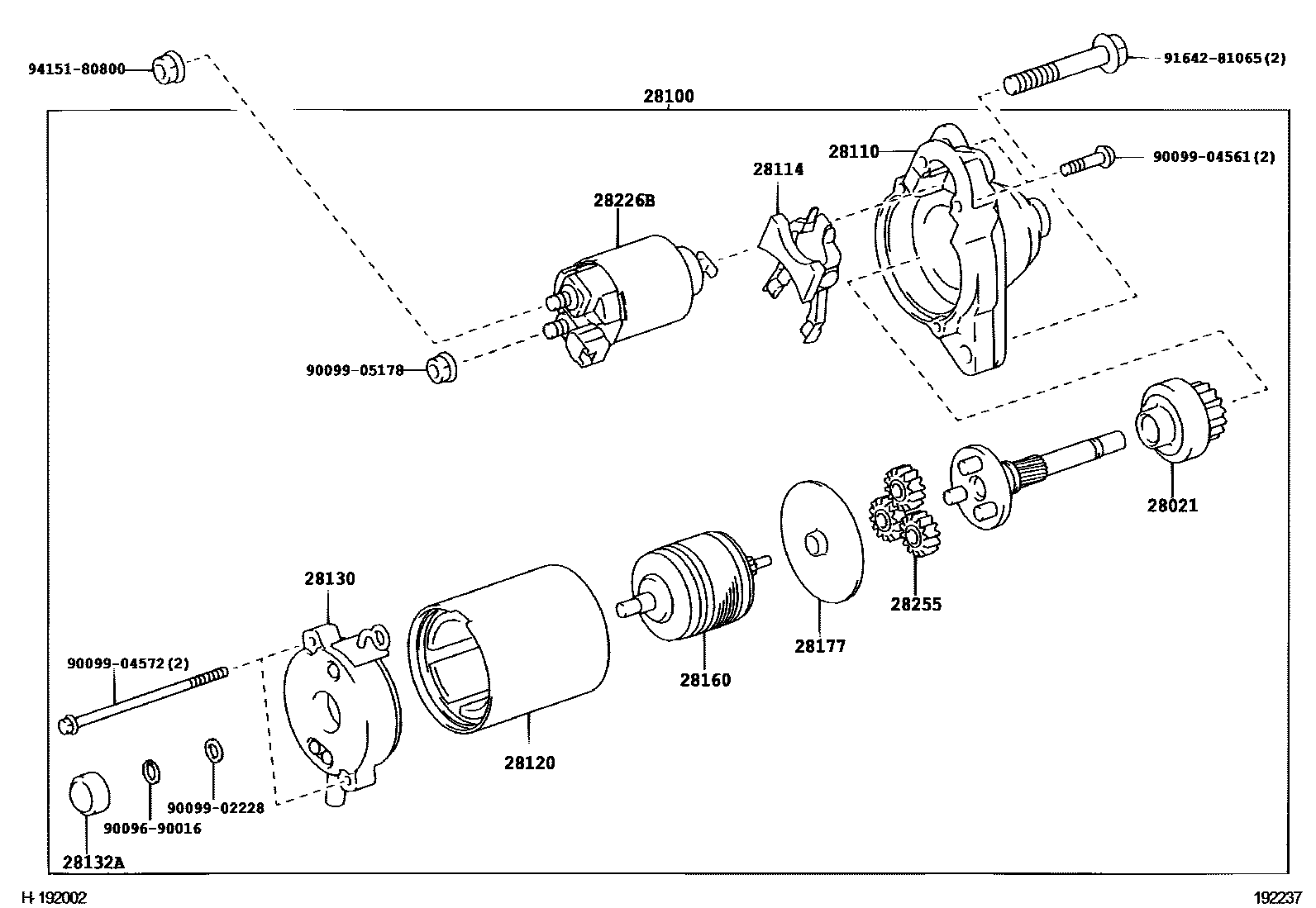

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i3GRFSE,4GRFSE..GRX12#200610-200909

28100STARTER ASSY

main28100-31070supersedes 28100-31080i3GRFSE,4GRFSE..GRX12#200610-200909

sub28100-31071

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i3GRFSE,4GRFSE..GRX12#200411-200610

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i3GRFSE,4GRFSE..GRX12#200411-200610

28120YOKE ASSY, STARTER

main28120-28040supersedes 28120-28080i3GRFSE,4GRFSE..GRX12#200411-200610

main28120-28060supersedes 28120-28080i3GRFSE,4GRFSE..GRX12#200808-200909

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31070supersedes 28130-31040i3GRFSE,4GRFSE..GRX12#200610-200909

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i3GRFSE,4GRFSE..GRX12#200411-200610

28160ARMATURE ASSY, STARTER

main28160-21060i3GRFSE,4GRFSE..GRX12#200411-200610

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i3GRFSE,4GRFSE..GRX12#200610-200909

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i3GRFSE,4GRFSE..GRX12#200411-200610

28255GEAR, PLANET

main28255-20020×3supersedes 28255-28040i3GRFSE,4GRFSE..GRX12#200411-200610

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9164281065

main91642-81065

9415180800

main94151-80800

18 parts on this diagram · 1 diagram in section
