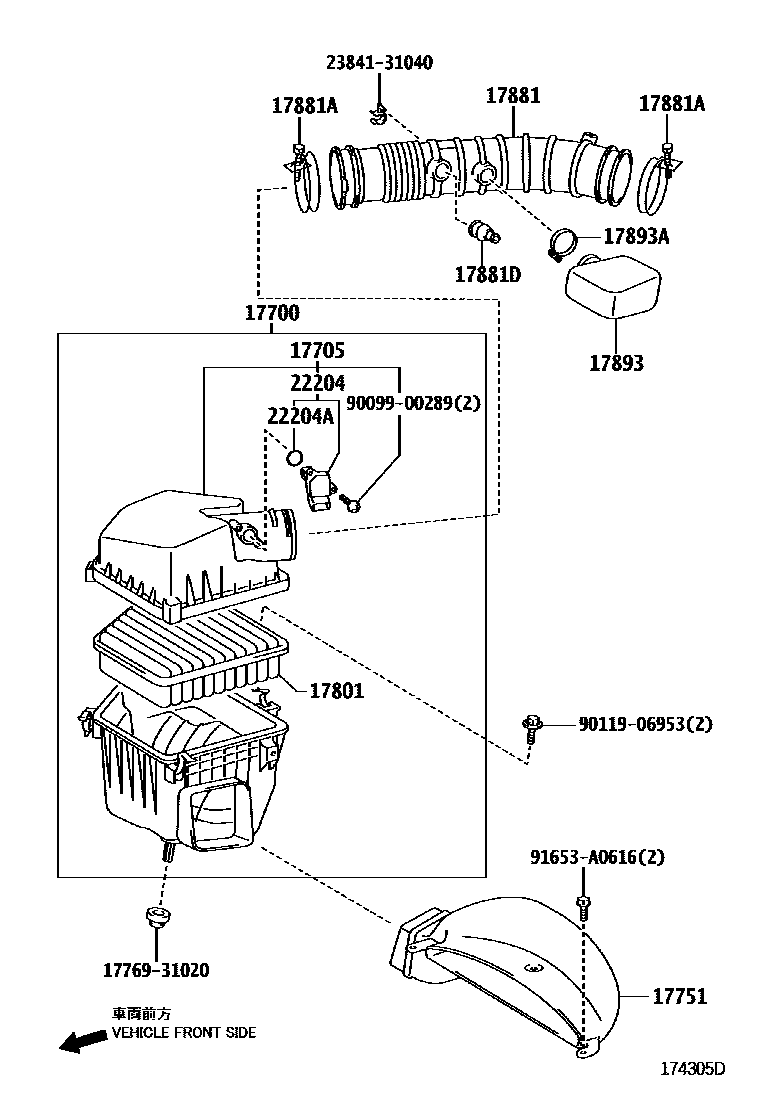

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-31560i3GRFSE,4GRFSE..GRX12#200411-200610

17705CAP SUB-ASSY, AIR CLEANER

main17705-31120i3GRFSE,4GRFSE..GRX12#200411-200610

17751INLET, AIR CLEANER, NO.1

main17751-31060i3GRFSE,4GRFSE..GRX12#200411-200610

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31110i3GRFSE,4GRFSE..GRX12#200411-200610

17881HOSE, AIR CLEANER, NO.1

main17881-31080i3GRFSE,4GRFSE..GRX12#200411-200610

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850×2i3GRFSE,4GRFSE..GRX12#200411-200610

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i3GRFSE,4GRFSE..GRX12#200411-200610

17893RESONATOR, INTAKE AIR

main17893-31020i3GRFSE,4GRFSE..GRX12#200411-200610

17893ACLAMP, HOSE

main96111-10380i3GRFSE,4GRFSE..GRX12#200411-200610

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-15010i3GRFSE,4GRFSE..GRX12#200411-200610

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i3GRFSE,4GRFSE..GRX12#200411-200610

1776931020SUPPORT, AIR CLEANER

main17769-31020

2384131040CLAMP, FUEL PIPE(HOSE), NO.1

main23841-31040

9009900289

main90099-00289

9011906953

main90119-06953

91653A0616

main91653-A0616

16 parts on this diagram · 1 diagram in section
