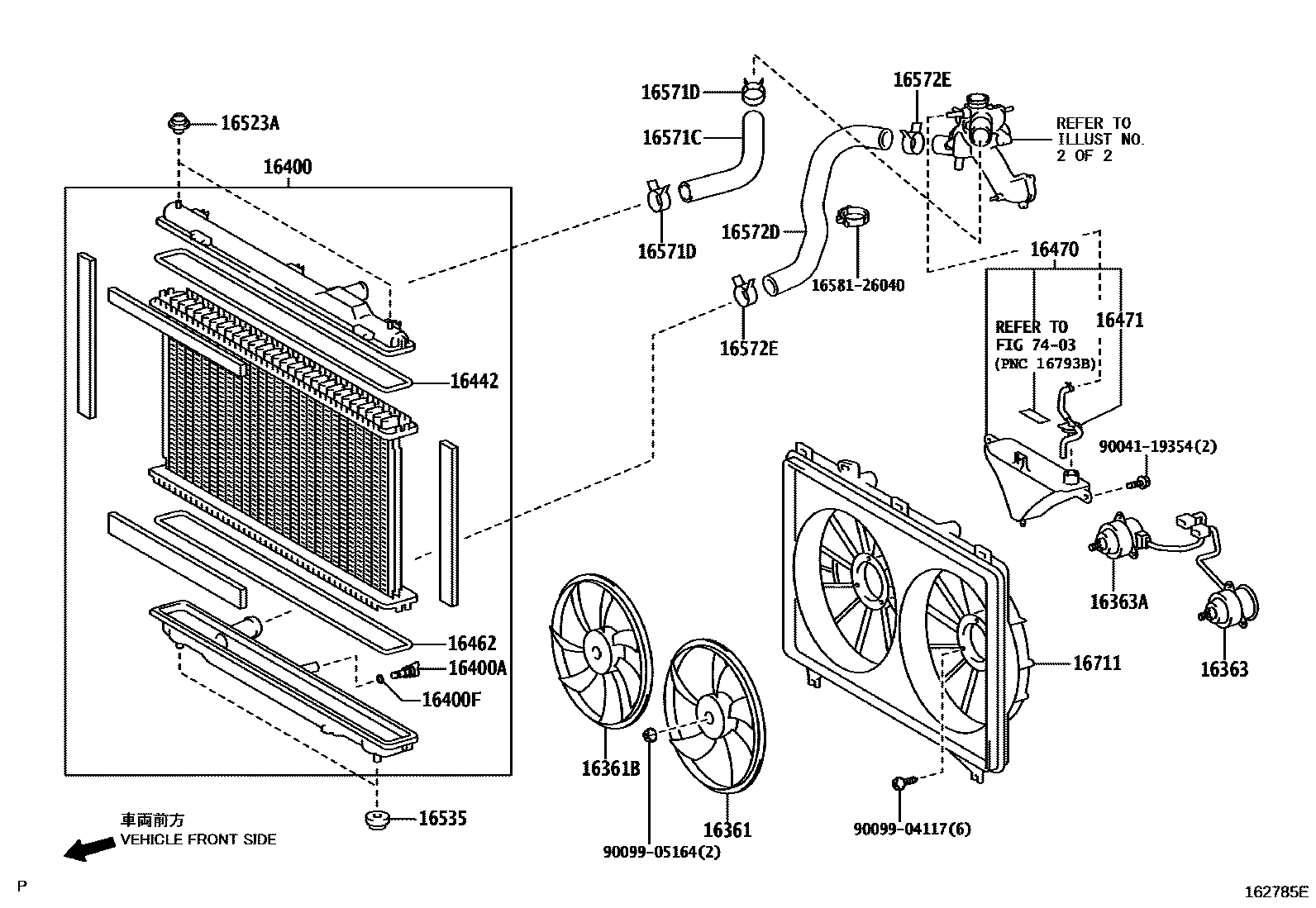

RADIATOR & WATER OUTLET

0001 1 0002 1

16361FAN

main16361-31090i3GRFSE,4GRFSE..GRX12#200411-200610

16361BFAN, NO.2

main16361-31100i3GRFSE,4GRFSE..GRX12#200411-200610

16363MOTOR, COOLING FAN

main16363-74340i3GRFSE,4GRFSE..GRX12#200411-200610

16363AMOTOR, COOLING FAN, NO.2

main16363-31040i3GRFSE,4GRFSE..GRX12#200411-200610

16400RADIATOR ASSY

main16400-31370i3GRFSE,4GRFSE..GRX12#200610

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-21280i3GRFSE,4GRFSE..GRX12#200411-200610

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i3GRFSE,4GRFSE..GRX12#200610

16442RING, O(FOR RADIATOR UPPER TANK)

main16462-46040i3GRFSE,4GRFSE..GRX12#200610

16462RING, O(FOR RADIATOR LOWER TANK)

main16462-70500i3GRFSE,4GRFSE..GRX12#200610

16470TANK ASSY, RADIATOR RESERVE

main16470-31040i3GRFSE,4GRFSE..GRX12#200411-200610

16471CAP SUB-ASSY, RESERVE TANK

main16405-31020i3GRFSE,4GRFSE..GRX12#200411-200610

sub16405-31021

16523ACUSHION, RADIATOR SUPPORT

main16523-31010×2i3GRFSE,4GRFSE..GRX12#200411-200610

16535SUPPORT, RADIATOR, LOWER

main90480-40021×2i3GRFSE,4GRFSE..GRX12#200411-200610

16571CHOSE, RADIATOR, NO.1

main16571-31150i3GRFSE,4GRFSE..GRX12#200411-200610

16571DCLIP, RADIATOR HOSE, NO.1

main96136-44801×2i3GRFSE,4GRFSE..GRX12#200908-200909

main96136-54801×2i3GRFSE,4GRFSE..GRX12#200411-200610

16572DHOSE, RADIATOR, NO.2

main16572-31191i3GRFSE,4GRFSE..GRX12#200411-200610

16572ECLIP, RADIATOR HOSE, NO.2

main96136-44801×2i3GRFSE,4GRFSE..GRX12#200908-200909

main96136-54801×2i3GRFSE,4GRFSE..GRX12#200610-200907

16711SHROUD, FAN

main16711-31220i3GRFSE,4GRFSE..GRX12#200411-200610

7403

1658126040CLAMP, HOSE(FOR WATER HOSE)

main16581-26040

9004119354

main90041-19354

9009904117

main90099-04117

9009905164

main90099-05164

23 parts on this diagram · 2 diagrams in section
