OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-31020i3GRFSE,4GRFSE..GRX120,121200411-200412

main04152-31060i4GRFSE..GRX125200411-200412

main04152-31080i3GRFSE,4GRFSE..GRX120,121200412-200610

main04152-38010i4GRFSE..GRX125200610

15609BRACKET SUB-ASSY, OIL FILTER

main15670-31020i4GRFSE..GRX125200411-200610

15609APLUG, TAPER SCREW(FOR OIL FILTER BRACKET)

main90344-54006i4GRFSE..GRX125200411-200610

15620CAP ASSY, OIL FILTER

main15620-31040i3GRFSE,4GRFSE..GRX120,121200411-200610

main15620-31050i4GRFSE..GRX125200610

15620CGASKET(FOR OIL FILTER CAP)

main90301-79004i3GRFSE,4GRFSE..GRX12#200411-200412

main90301-79005i3GRFSE,4GRFSE..GRX12#200412-200610

main90301-79006i3GRFSE,4GRFSE..GRX12#200610

15643PLUG, OIL FILTER DRAIN

main15643-31040i4GRFSE..GRX125200411-200610

main15643-31050i4GRFSE..GRX125200707

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main90301-27012i4GRFSE..GRX125200411-200412

main96723-35028i4GRFSE..GRX125200412-200610

15671BRACKET, OIL FILTER

main15671-31020i4GRFSE..GRX125200411-200610

15692GASKET, OIL FILTER BRACKET

main15692-31020i4GRFSE..GRX125200411-200610

9012608050

main90126-08050

9017908025

main90179-08025

9034455002

main90344-55002

9155180830

main91551-80830

9415180800

main94151-80800

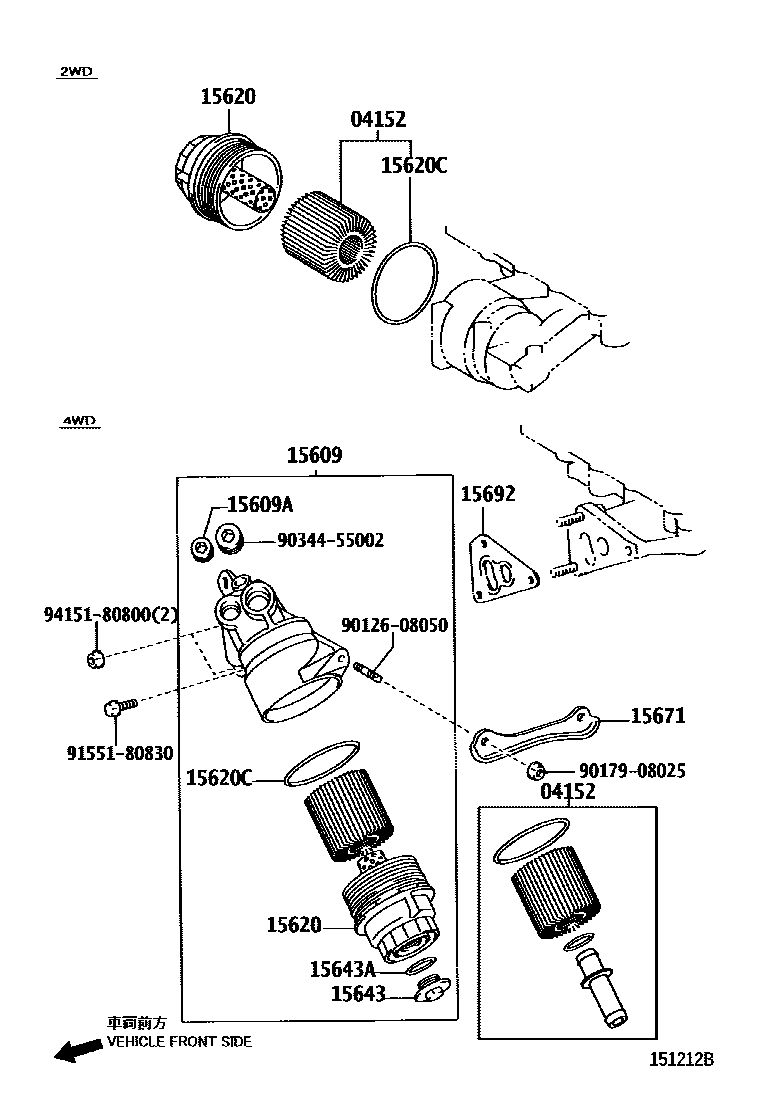

14 parts on this diagram · 1 diagram in section
