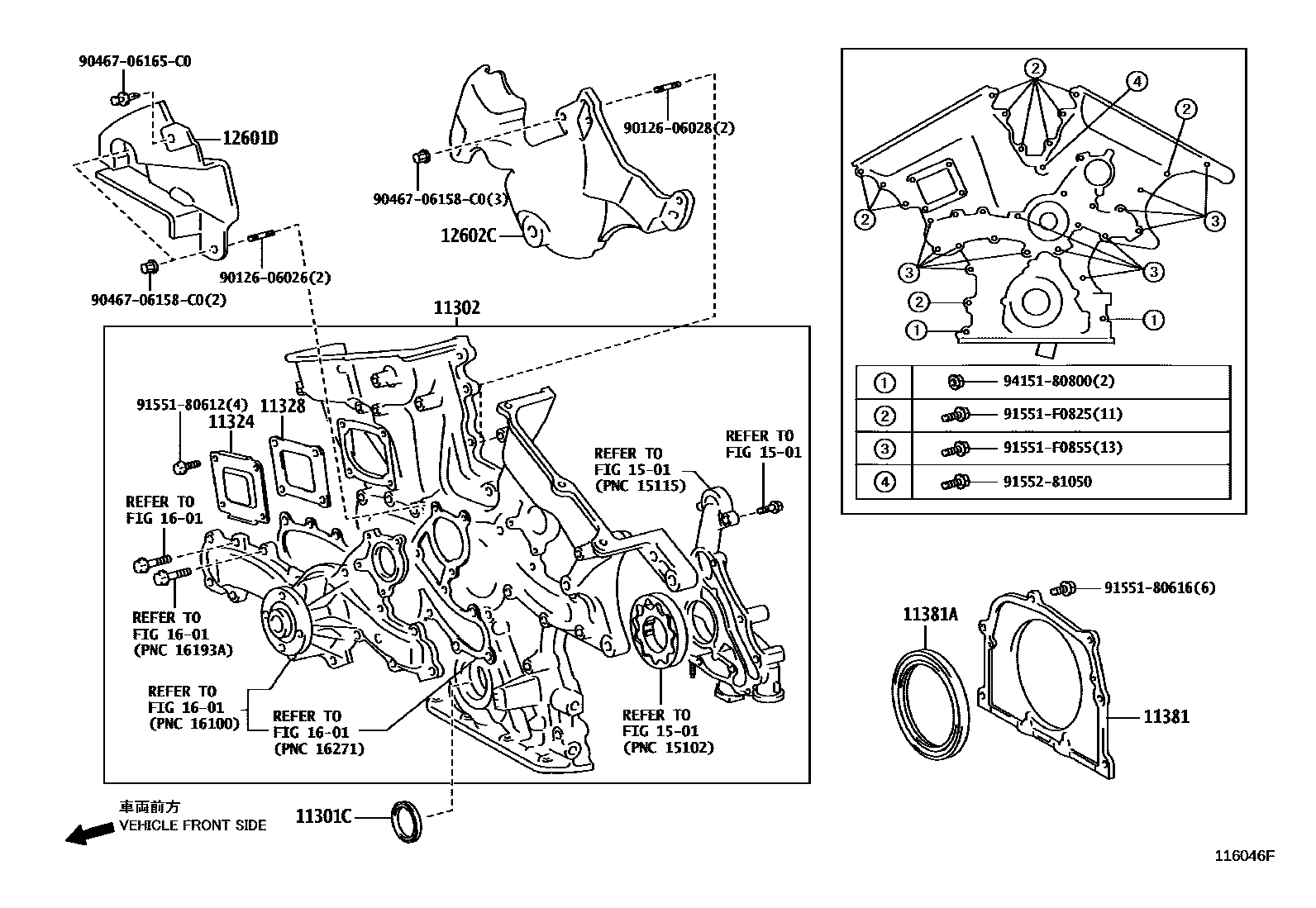

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42037i3GRFSE,4GRFSE..GRX12#200411-200905

main90311-42045i3GRFSE,4GRFSE..GRX12#200905

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31041i3GRFSE,4GRFSE..GRX12#200411-200508

main11310-31042i3GRFSE,4GRFSE..GRX12#200508-200909

11324PLATE, TIMING CHAIN COVER

main11324-31020i3GRFSE,4GRFSE..GRX12#200411-200909

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i3GRFSE,4GRFSE..GRX12#200411-200909

11381RETAINER, ENGINE REAR OIL SEAL

main11381-31020i3GRFSE,4GRFSE..GRX12#200411-200506

main11381-31021i3GRFSE,4GRFSE..GRX12#200506-200610

11381ASEAL, ENGINE REAR OIL

main90311-92006i3GRFSE,4GRFSE..GRX12#200411-200802

main90311-92009i3GRFSE,4GRFSE..GRX12#200802

12601DCOVER, ENGINE, NO.1

main12601-31010i3GRFSE,4GRFSE..GRX12#200411-200610

12602CCOVER, ENGINE, NO.2

main12602-31012i3GRFSE,4GRFSE..GRX12#200411-200610

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1601WATER PUMP

→ Go to FIG 16-01

9012606026

main90126-06026

9012606028

main90126-06028

9046706158C0

main90467-06158C0

9046706165C0

main90467-06165C0

9155180612

main91551-80612

9155180616

main91551-80616

91551F0825

main91551-F0825

91551F0855

main91551-F0855

9155281050

main91552-81050

9415180800

main94151-80800

20 parts on this diagram · 1 diagram in section
