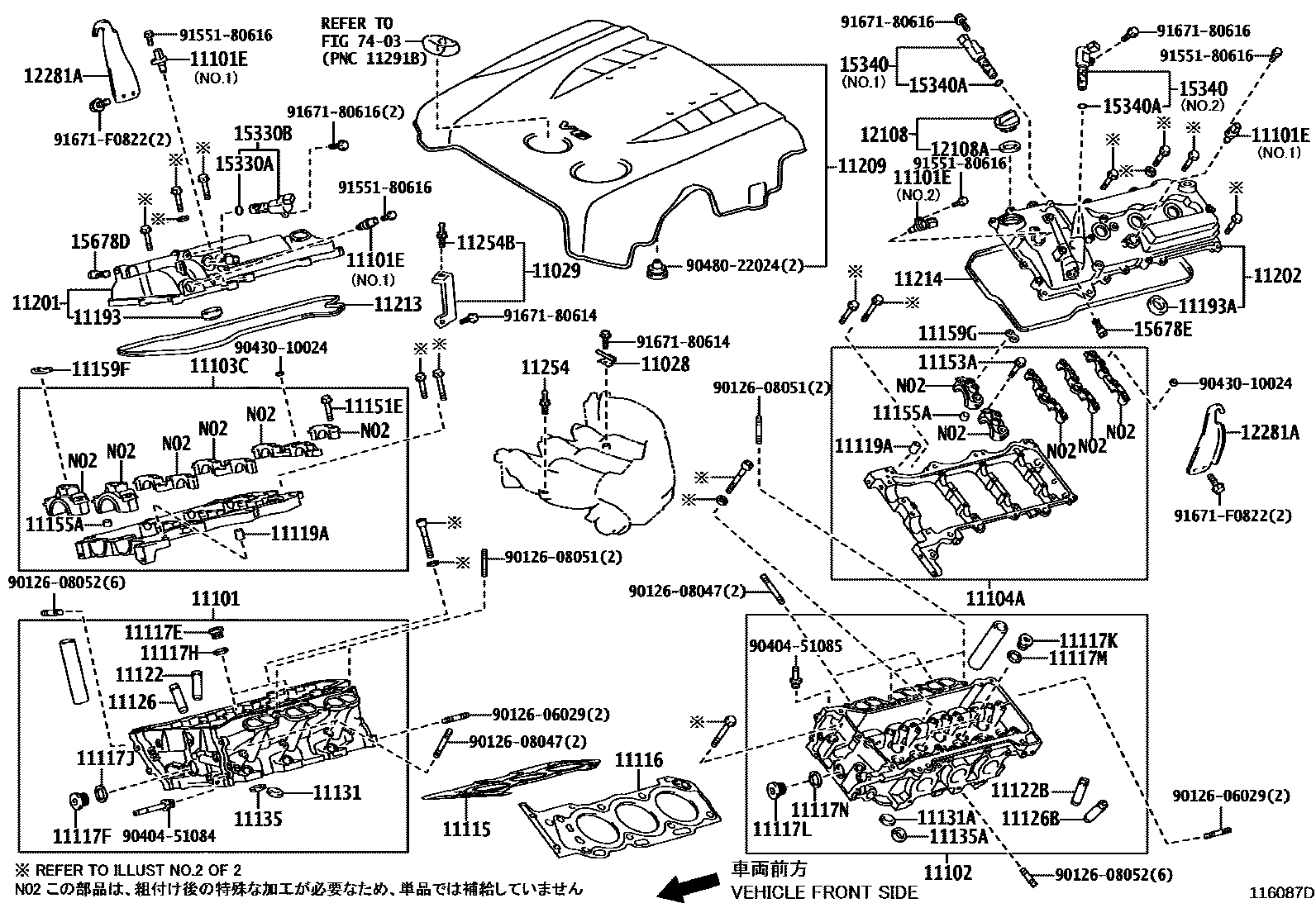

11028BRACKET SUB-ASSY, V-BANK COVER, NO.2

main11028-31010i200610

11029BRACKET SUB-ASSY, V-BANK COVER

main11029-31020i200411-200610

main11029-31040i200712-200902

main11029-31050i200902

11101HEAD SUB-ASSY, CYLINDER

main11101-39515i200411-200506

main11101-39525i200411-200610

sub11101-39526

main11101-39595i200506-200610

sub11101-39596

11101ESENSOR, CAM POSITION

main90919-05060×3i200610-200909

main90919-05061i200411-200610

11102HEAD, CYLINDER, LH

main11102-39035i200411-200501

main11102-39036i200501-200610

sub11102-39037

main11102-39045i200411-200501

main11102-39046i200501-200610

sub11102-39047

11103CHOUSING SUB-ASSY, CAMSHAFT, RH

main11103-31010i200411-200605

main11103-31011i200605-200610

main11103-31012i200801

11104AHOUSING SUB-ASSY, CAMSHAFT, LH

main11104-31010i200411-200501

sub11104-31080

main11104-31020i200501-200605

main11104-31021i200605-200610

main11104-31022i200801-200901

main11104-31042i200901-200907

main11104-31043i200907

11115GASKET, CYLINDER HEAD

main11115-31041i200610

main11115-31051i200610

11116GASKET, CYLINDER HEAD, NO.2

main11116-31021i200411-200610

main11116-31031i200411-200610

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-20012×2i200411-200610

11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2

main90341-27006i200411-200610

11117HGASKET(FOR WATER HOLE)

main90430-20004×2i200411-200610

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-27005i200610

11117KPLUG, W/HEAD STRAIGHT SCREW, LH NO.1

main90341-20012×2i200411-200610

11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2

main90341-27006i200411-200610

11117MGASKET(FOR WATER HOLE NO.2)

main90430-20004×2i200411-200610

11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)

main90430-27005i200411-200610

11119APIN, STRAIGHT, NO.1

main90250-05021×3i200411-200610

11122BUSH, INTAKE VALVE GUIDE

main11122-31041×6i200411-200610

sub11122-47010

main11123-31041×6i200411-200610

sub11123-47010

11122BBUSH, INTAKE VALVE GUIDE, NO.2

main11122-31041×6i200411-200610

sub11122-47010

main11123-31041×6i200610

sub11123-47010

11126BUSH, EXHAUST VALVE GUIDE

main11126-31030×6i200610

sub11126-31040

main11127-31030×6i200411-200610

sub11127-31040

11126BBUSH, EXHAUST VALVE GUIDE, NO.2

main11126-31030×6i200411-200610

sub11126-31040

main11127-31030×6i200610

sub11127-31040

11131SEAT, INTAKE VALVE

main11131-31020×6i200411-200610

main11131-31030×6i200610

main11132-31020×6i200411-200610

main11132-31030×6i200411-200610

11131ASEAT, INTAKE VALVE, NO.2

main11131-31020×6i200411-200610

main11131-31030×6i200411-200610

main11132-31020×6i200610

main11132-31030×6i200411-200610

11135SEAT, EXHAUST VALVE

main11135-31040×6i200610

main11135-31050×6i200411-200610

main11136-31040×6i200411-200610

main11136-31050×6i200610

11135ASEAT, EXHAUST VALVE, NO.2

main11135-31040×6i200610

main11135-31050×6i200411-200610

main11136-31040×6i200411-200610

main11136-31050×6i200610

11151EBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)

main90119-07009×9i200411-200610

11153ABOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)

main90119-07009×8i200610

11155APIN, RING W/HEAD

main90253-11021×11i200411-200610

11159FGASKET, CAMSHAFT BEARING CAP OIL HOLE, RH

main11159-31010×2i200411-200610

11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH

main11159-31010×2i200610

11193GASKET, SPARK PLUG TUBE

main11193-70010×3i200411-200610

11193AGASKET, SPARK PLUG TUBE, LH

main11193-70010×3i200411-200610

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-31230i200411-200508

main11201-31231i200508-200610

main11201-31232i200711

11202COVER SUB-ASSY, CYLINDER HEAD, LH

main11202-31021i200411-200507

main11202-31022i200507-200610

11209COVER SUB-ASSY, V-BANK

main11209-31020i200411-200503

main11209-31021i200504-200508

main11209-31200i200509-200610

main11209-31201i200907

11213GASKET, CYLINDER HEAD COVER

main11213-31040i200411-200610

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-31020i200411-200610

11254BRACKET, V-BANK COVER, NO.1

main11254-31020i200411-200610

11254BBOLT, V-BANK COVER

main11254-31020i200610

main90109-06385i200902

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i200411-200610

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i200411-200610

12281AHANGER, ENGINE, NO.1

main12281-31070×2i200411-200610

sub12281-31071

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90099-14137×2i200411-200610

15330BVALVE ASSY, CAM TIMING OIL CONTROL, RH

main15330-31020×2i200411-200610

main15330-38010×2i200802

15340VALVE ASSY, CAM TIMING OIL CONTROL, LH

main15330-31020i200411-200610

main15330-38010i200803

main15340-31020i200411-200610

15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90099-14137×2i200411-200610

15678DFILTER, OIL CONTROL VALVE, RH

main15678-46020i200411-200610

15678EFILTER, OIL CONTROL VALVE, LH

main15678-46020i200411-200610

7403

9012606029

main90126-06029

9012608047

main90126-08047

9012608051

main90126-08051

9012608052

main90126-08052

9040451084

main90404-51084

9040451085

main90404-51085

9043010024

main90430-10024

9048022024

main90480-22024

9155180616

main91551-80616

9167180614

main91671-80614

9167180616

main91671-80616

91671F0822

main91671-F0822
