ENGINE OVERHAUL GASKET KIT

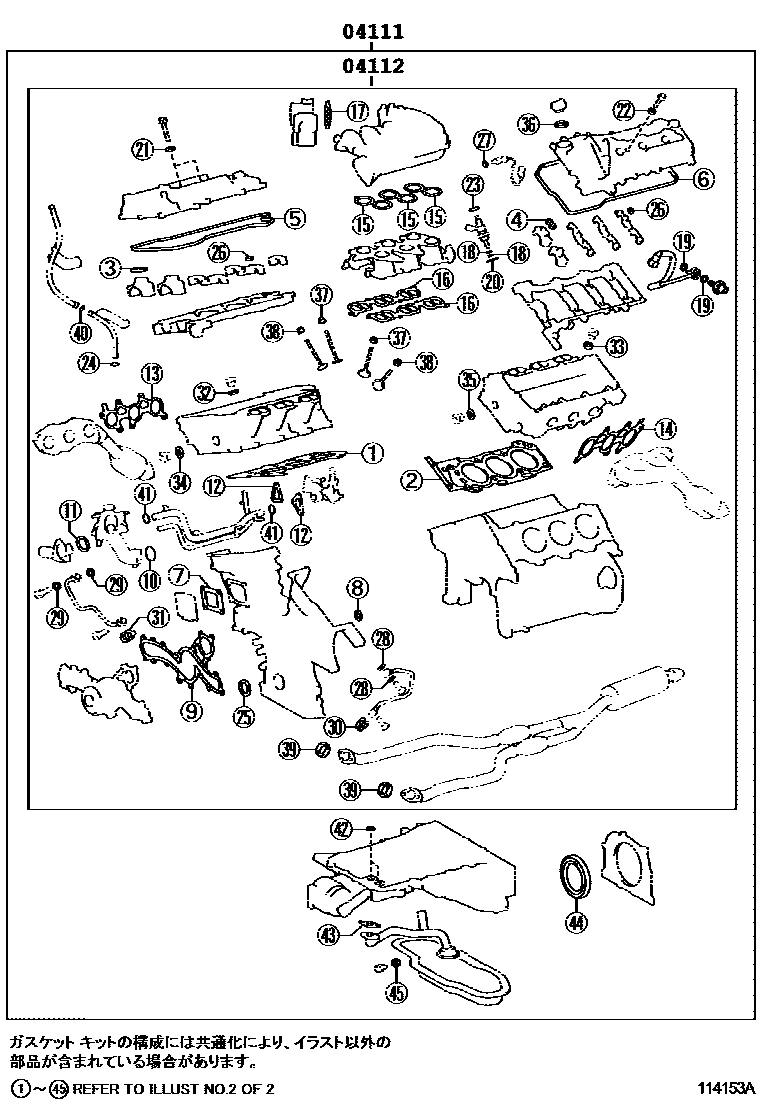

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-31220i200411-200509
main04111-31230i200411-200509
main04111-31240i200411-200509
main04111-31530i200509-200610
main04111-31550i200610
main04111-31780i200802
sub04111-31781
04112GASKET KIT, ENGINE VALVE GRIND
main04112-31140i200411-200509
main04112-31150i200411-200509
main04112-31330i200509-200610
sub04112-31331
main04112-31340i200509-200610

2 parts on this diagram · 4 diagrams in section
