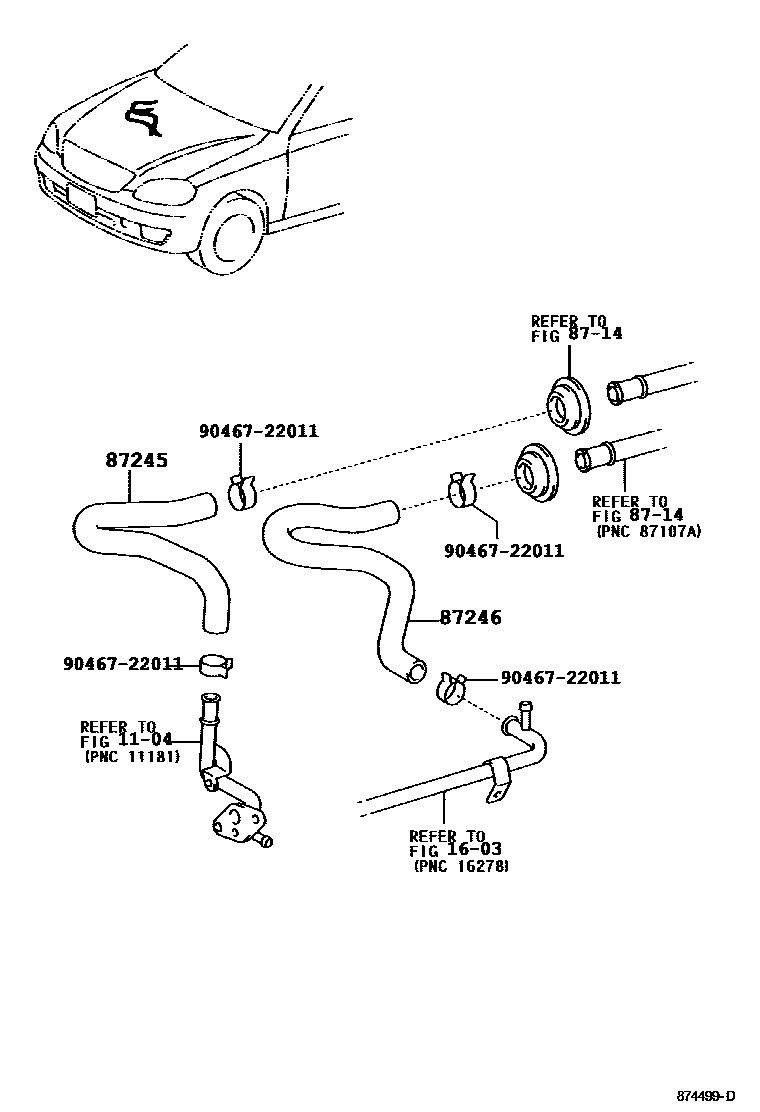

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-2A730iJZX110..GD,GDG,GDS,IRS200010

main87245-2A770iJZX110..5F200010-200210

main87245-2A771iJZX110..5F200210

main87245-3F520iJZX110..4FC..(GDGT,GDV,IRV)200010-200210

main87245-3F521iJZX110..IRV200210-200604

main87245-51010iJZX115200010

main87245-53030iGX11#..SED200210

87246HOSE, HEATER WATER, OUTLET

main87245-2A710iJZX110..5F200010-200210

main87245-2A740iJZX110..GD,GDG,GDS200210-200411

main87245-3F530iJZX110..4FC..(GDGT,GDV,IRV)200010-200604

main87245-3F550iJZX115200010

main87245-51010iJZX115..GDG200210-200411

main87245-53040iGX11#..GD,IR200010

9046722011

main90467-22011

6 parts on this diagram · 3 diagrams in section
