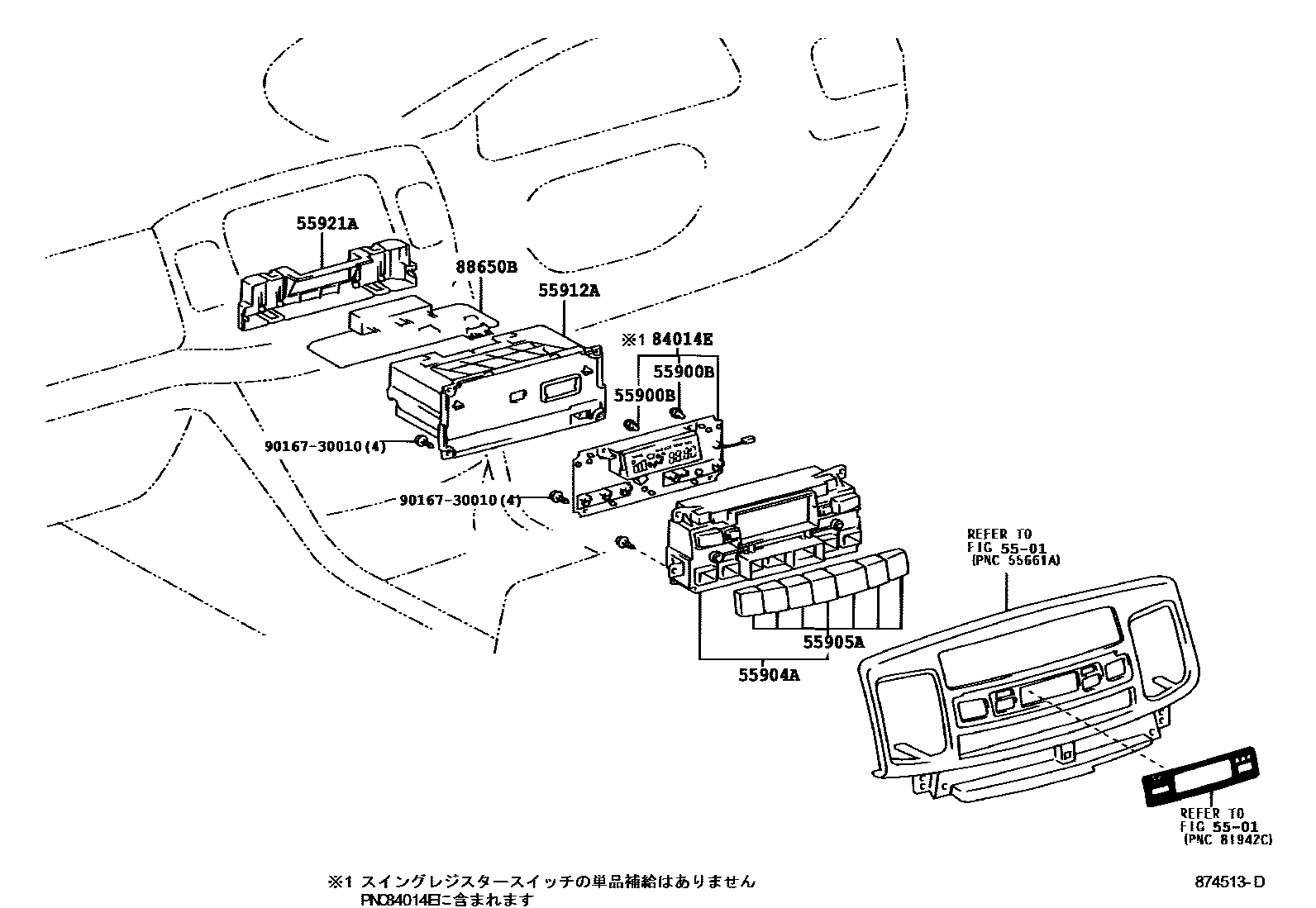

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1����-� ���� 0002 1����-� ����--��(����� ��� ���0003 1�� ���� 0004 1���

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55900BBULB, AIR CONDITIONER CONTROL

main90010-05101iGX11#,JZX11#..SED200210

main90010-05101iGX11#,JZX11#..SED200010-200210

main90010-05101iGX11#,JZX11#..SED200010-200210

main90010-05118iGX11#,JZX11#..WG200201

main90010-05118iGX11#,JZX110..IR,IRS200305-200404

main90010-05118iGX11#,JZX11#..WG200201

main90010-05118iGX11#200501

main90010-05134iGX11#,JZX11#..SED200010-200210

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-22040iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

main55904-22040iGX11#,JZX110..GD200404-200410

main55904-22050iJZX110..IRS200010-200501

main55904-22050iGX11#200501

main55904-22060iJZX11#..GDG200010

main55904-22060iGX11#,JZX110..GD200404-200410

55905AKNOB, HEATER CONTROL

main55905-22440iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

main55905-22440iGX11#,JZX110..IR,IRS200305-200404

main55905-22450iGX11#200501

main55905-22450iJZX110..IRS200010-200501

main55905-22460iJZX11#..GDG,GDGT,IRS,IRV200010

main55905-22460iGX11#,JZX110..GD200404-200410

55912AHOUSING, HEATER CONTROL

main55912-22030iGX11#,JZX110..IR,IRS200305-200404

main55912-22030iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

main55912-22040iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

main55912-22040iGX11#200501

55921ARETAINER, HEATER CONTROL

main55921-22080iGX11#,JZX110..IR,IRS200305-200404

main55921-22080iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

84014EBOARD SUB-ASSY, PRINTED WIRE INTEGRATION

main84014-22010iGX11#,JZX110..GD,GDS,GDV200010-200210

main84014-22020iJZX11#..GDG,GDGT200010-200411

main84014-22020iGX11#,JZX110..GD200404-200410

main84014-22030iGX11#,JZX110..GD,GDS,GDV200010-200411

main84014-22040iJZX11#..GDG,GDGT200010-200411

main84014-22040iGX11#,JZX110..GD200404-200410

main84014-22050iGX11#..IR200201-200501

main84014-22050iGX11#,JZX110..IR,IRS200305-200404

main84014-22060iJZX11#..WG200201

main84014-22070iJZX110..IRS200201-200501

main84014-22070iGX11#200501

main84014-22080iJZX11#..WG200201

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-22650iGX11#,JZX11#..SED200010

main88650-22650iGX11#,JZX110..IR,IRS200305-200404

main88650-22660iGX11#,JZX11#200010-200108

main88650-22661iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200108

main88650-22661iGX11#200501

9016730010

main90167-30010

9 parts on this diagram · 4 diagrams in section
