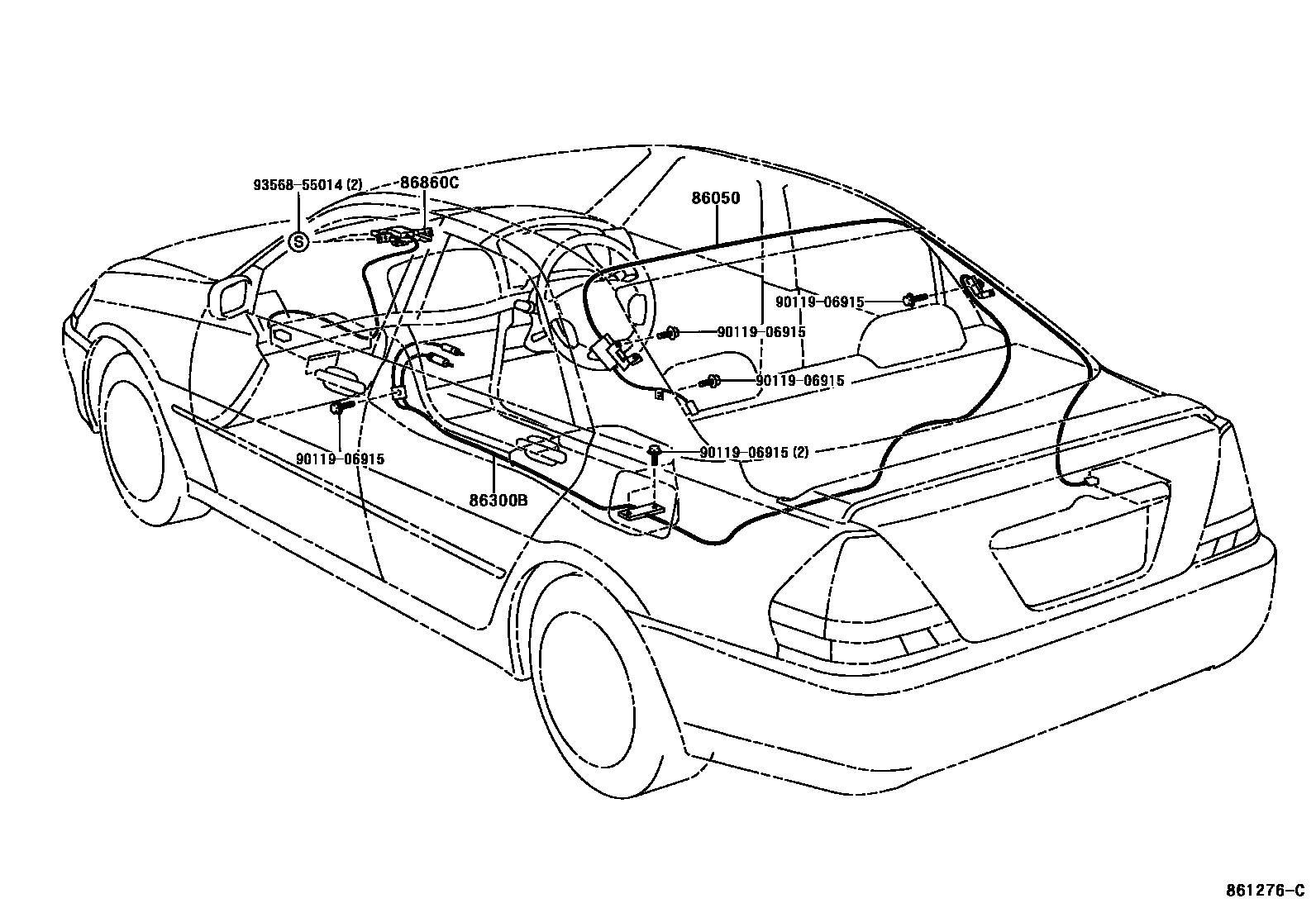

ANTENNA

0001 1 0002 1

86050ANTENNA ASSY, TELEVISION

main86050-22250iGX11#,JZX11#..SED200210

main86050-22270iGX11#,JZX11#..WG200201

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-22610iGX11#,JZX11#..WG200201

main86300-22620iGX11#,JZX11#..GD,GDG200210-200305

main86300-22630iGX11#,JZX11#..SED..ATM200010-200210

main86300-22640iJZX110..5F200010-200210

main86300-22650iGX11#,JZX11#..WG200305

main86300-22660iJZX110..5F200305

86860CANTENNA ASSY, NAVIGATION

main86860-22040iGX11#,JZX11#..SED200010-200210

main86860-22050iGX11#,JZX11#..SED200210

main86860-22051iGX11#,JZX11#..WG200312

9011906915

main90119-06915

9356855014

main93568-55014

5 parts on this diagram · 2 diagrams in section
