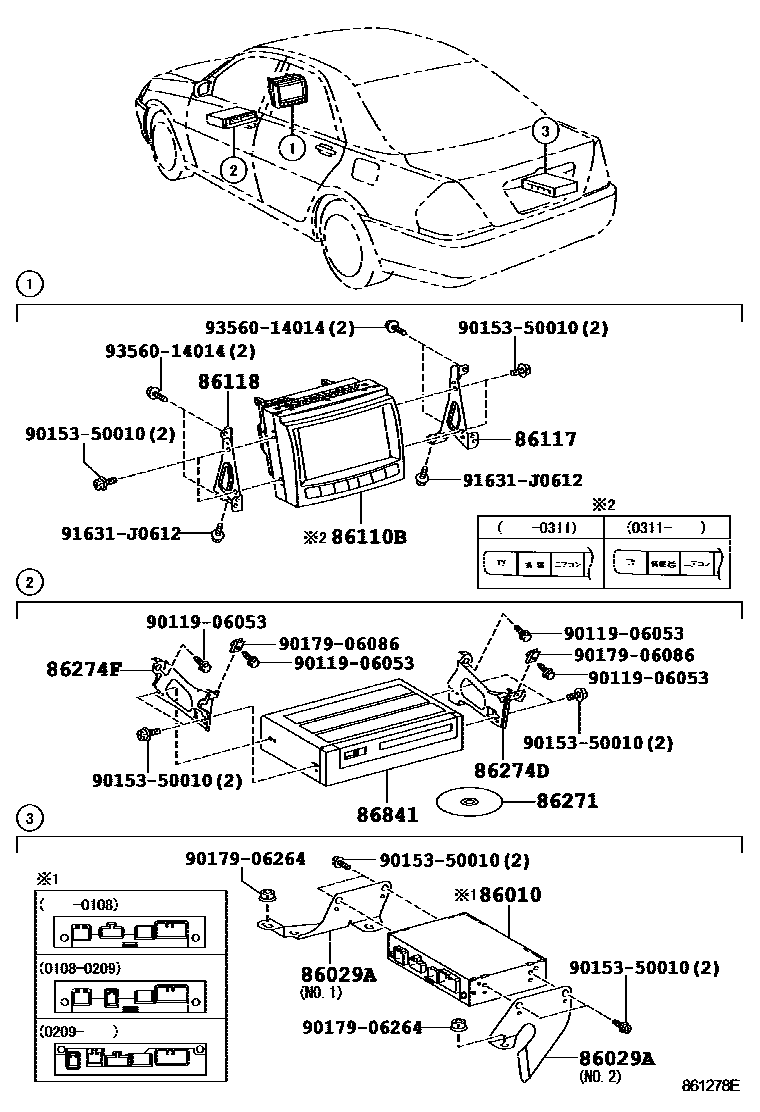

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1���� ��� & �����-� 0004 1

86010TUNER ASSY, TELEVISION

main86010-20020iGX11#,JZX11#200010-200108

main86010-22020iGX11#,JZX11#..WG200201-200209

main86010-53040iGX11#,JZX11#..SED200108-200209

main86016-48030iGX11#,JZX11#..WG200209

main86016-53010iGX11#,JZX11#..SED200210

86029ABRACKET SET, TELEVISION, NO.1

main86029-30020iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

main86029-30030iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

86110BMULTI-DISPLAY ASSY

main86110-22050iGX11#,JZX11#200010-200108

main86110-22060iGX11#,JZX11#..WG200201-200312

main86110-22061iGX11#,JZX11#..WG200312-200706

main86110-22080iGX11#,JZX11#..SED200108-200210

main86110-22081iGX11#,JZX11#..SED200311-200411

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-22030iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-22030iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

86271DISC, DISC PLAYER

main86271-13030iGX11#,JZX11#..SED200210-200310

main86271-13031iGX11#,JZX11#..SED200310-200311

main86271-13061iGX11#,JZX11#..SED200311-200404

main86271-13062iGX11#,JZX11#..SED200404-200410

main86271-13063iGX11#,JZX11#..SED200410-200411

main86271-33020iGX11#,JZX11#200010-200107

main86271-44020iGX11#,JZX11#200107-200108

main86271-52041iGX11#,JZX11#..WG200312-200404

main86271-52042iGX11#,JZX11#..WG200404-200410

main86271-52043iGX11#,JZX11#..WG200410-200508

main86271-52044iGX11#,JZX11#200508-200509

main86271-52045iGX11#,JZX11#200510-200604

main86271-52046iGX11#,JZX11#200604-200609

main86271-52047iGX11#,JZX11#200609-200612

main86271-52048iGX11#,JZX11#200701

86274DBRACKET, DISC PLAYER

main86274-22050iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

86274FBRACKET, DISC PLAYER, NO.2

main86274-22060iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

86841COMPUTER, NAVIGATION

main86841-13010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200108-200312

main86841-13031iGX11#,JZX11#..SED200311-200411

main86841-22040iJZX110..5FC200010-200107

main86841-22041iJZX110..5FC200107-200108

main86841-22050iGX11#,JZX11#..4FC,5F200010-200107

main86841-22051iGX11#,JZX11#..4FC,5F200107-200108

main86841-48010iGX11#,JZX11#..IR,IRS200404-200612

main86841-52020iGX11#,JZX11#..WG200312-200404

9011906053

main90119-06053

9015350010

main90153-50010

9017906086

main90179-06086

9017906264

main90179-06264

91631J0612

main91631-J0612

9356014014

main93560-14014

15 parts on this diagram · 3 diagrams in section
