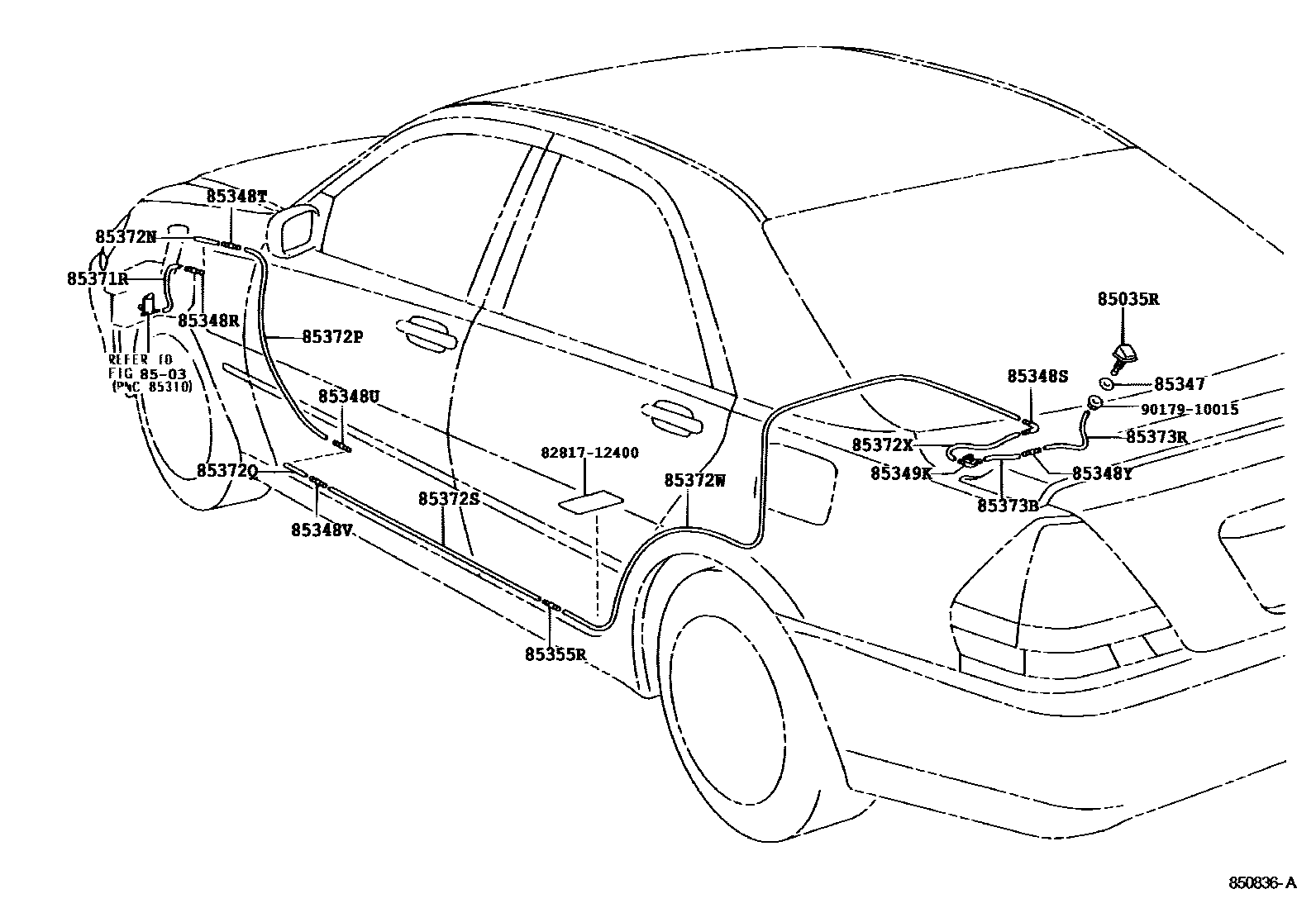

REAR WASHER
8503
85035RNOZZLE SUB-ASSY, REAR WASHER
sub85391-22060
85347PACKING, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349KJOINT, REAR WASHER ELBOW, NO.2
85355RVALVE, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
8281712400PROTECTOR, WIRING HARNESS, NO.1
main82817-12400
9017910015
main90179-10015
22 parts on this diagram · 2 diagrams in section
