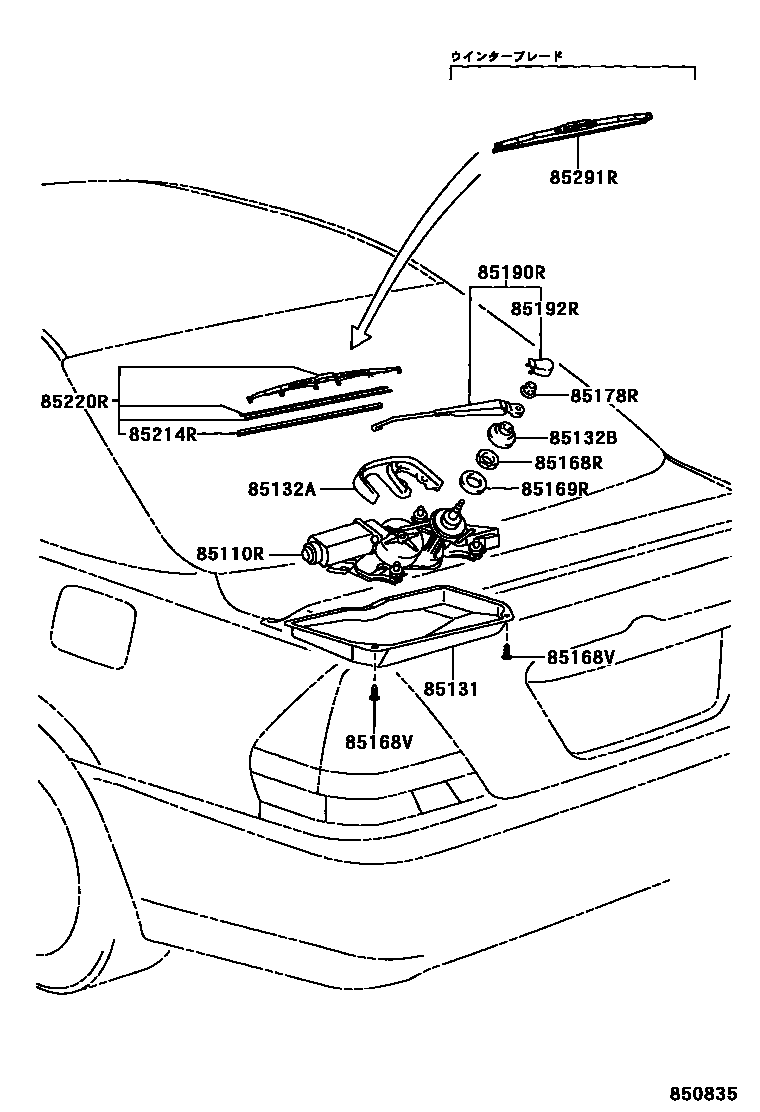

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85130-22580iGX11#,JZX11#..SED200010-200210

main85130-22590iGX11#,JZX11#..WG200201

85131COVER, REAR WIPER MOTOR

main85131-22510iGX11#,JZX11#..SED200010-200210

85132ACOVER, REAR WIPER SHAFT

main85132-22520-A0iGX11#,JZX11#..GD,GDG200210-200411

IVORY,TRIM0#

main85132-22520-B1iGX11#,JZX11#..GD,GDG,GDGT200010-200210

MD.CHARCOAL,TRIM1#

main85132-22520-C0iJZX110..GDS,GDV200010-200210

BLACK,TRIM2#

85132BCAP, REAR WIPER SHAFT

main85132-22530iGX11#,JZX11#..SED200010-200210

main85132-22540iGX11#,JZX11#..WG200201

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iGX11#,JZX11#..SED200210

85168VCLIP, WIPER LINK COVER

main90467-08186-C0×2iGX11#,JZX11#..GD,GDG,GDGT; JZX110..GDS,GDV200010-200210

BLACK,TRIM0#,1#; BLACK,TRIM2#

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-22510iGX11#,JZX11#..SED200010-200210

main85134-53010iGX11#,JZX11#..WG200201

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

85190RARM ASSY, REAR WIPER

main85241-22060iGX11#,JZX11#..SED200010-200210

main85241-42040iGX11#,JZX11#..WG200201

main85241-42050iGX11#,JZX11#..WG200201

85192RCOVER, REAR WIPER ARM

main85192-13060iGX11#,JZX11#..SED200010-200210

main85292-28030iGX11#,JZX11#..WG200201

85214RRUBBER, REAR WIPER

main85214-31010iGX11#,JZX11#..WG200201

main85214-42040iGX11#,JZX11#..WG200201

main85214-48020iGX11#,JZX11#..SED200010-200210

main85214-53040iGX11#,JZX11#..SED200406-200411

85220RBLADE ASSY, REAR WIPER

main85222-48030iGX11#,JZX11#..SED200406-200411

main85242-22050iGX11#,JZX11#..SED200210-200406

main85242-42020iGX11#,JZX11#..WG200201

85291RBLADE,REAR WIPER, WINTER

main85291-33020iGX11#,JZX11#..WG200201

main85291-33050iGX11#,JZX11#..SED200010-200210

main85291-42020iGX11#,JZX11#..WG200201

13 parts on this diagram · 2 diagrams in section
