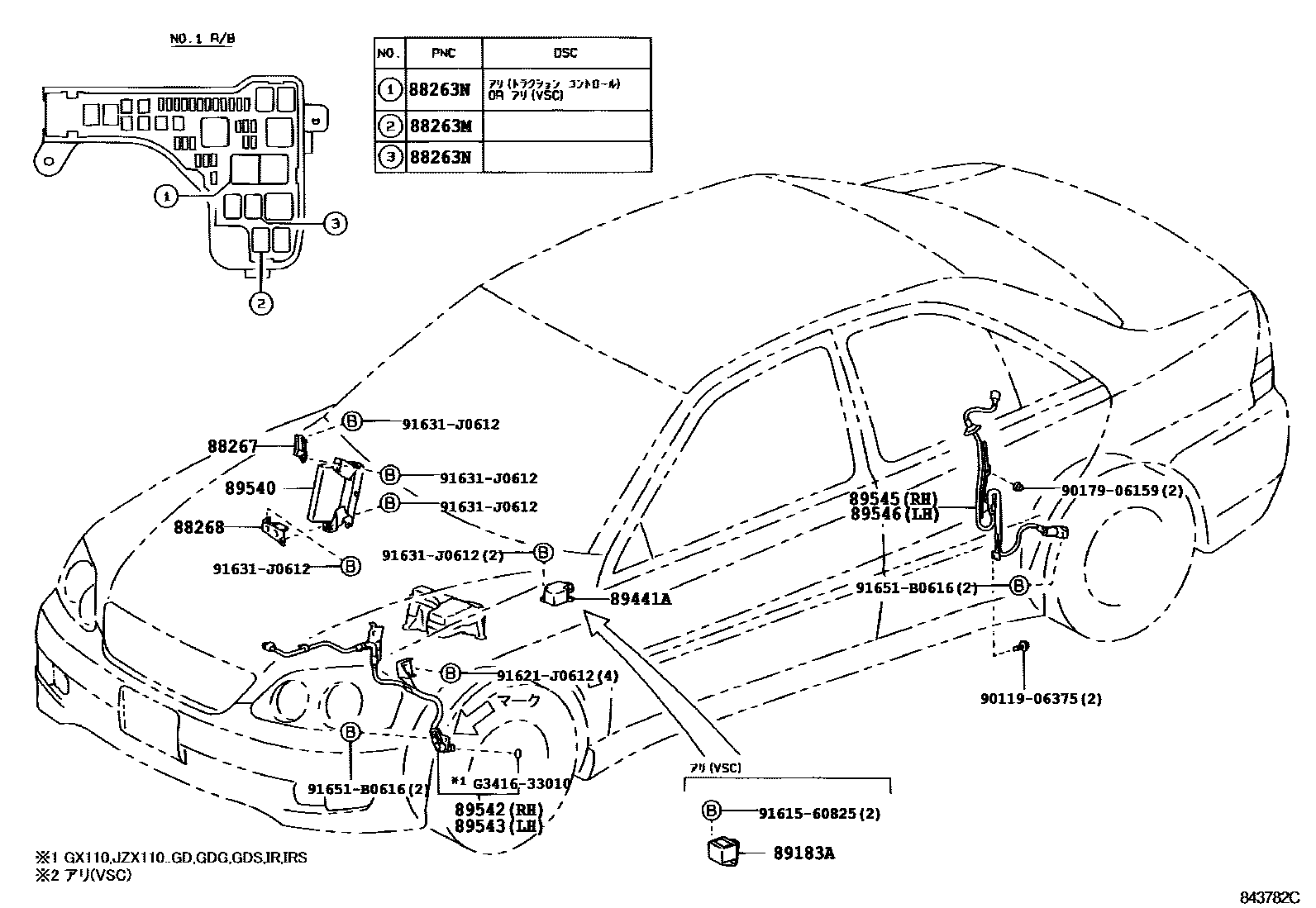

ABS & VSC

88263MRELAY, ABS SOLENOID

main88263-32070×2iGX110..IR200201

88263NRELAY, ABS MOTOR

main88263-30150iJZX110..GD,GDG; JZX110..GDS; JZX110..GDV200210

main88263-32070iGX11#,JZX11#..GD,GDG,GDS200210

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-22220iGX11#,JZX11#..SED200210

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-22180iGX11#,JZX11#..SED200210

89183ASENSOR, YAWRATE

main89183-22020iJZX110..GD,GDG200210

89441ASENSOR, DECELERATION

main89441-30040iGX115,JZX115..SED200010-200210

89540COMPUTER ASSY, SKID CONTROL

main89540-22390iGX110..SED200210

main89540-22400iJZX110..GD,GDG,GDS,IRS200010

main89540-22410iJZX110..GDGT200010-200210

main89540-22420iJZX110..GD,GDG,GDGT200010-200210

main89540-22430iGX115,JZX115..SED200210

main89540-22440iJZX110..GDS,IRS; JZX110..GDV,IRV200010-200210

main89540-22450iJZX110..IRS; JZX110..IRV200201-200210

main89540-22460iGX110..IR200201

main89540-22490iJZX110..GDS,GDV200210

main89540-22530iJZX110..IRS200210-200501

main89540-22540iJZX110..WG200210

89542SENSOR, SPEED, FRONT RH

main89542-30230iGX110,JZX110..GD,GDG,GDS200210-200306

main89542-30240iGX115,JZX115200010-200104

main89542-30241iGX115,JZX115..SED200210-200411

main89542-51010iGX110,JZX110..IR,IRS200307-200706

89543SENSOR, SPEED, FRONT LH

main89543-30230iGX110..GD,IR;JZX110..GD,GDG,GDS,IRS200010-200308

main89543-30240iGX115,JZX115200010-200104

main89543-30241iGX115,JZX115..SED200210-200411

main89543-53010iGX110,JZX110..IR,IRS200308-200706

89545SENSOR, SPEED, REAR RH

main89545-30060iGX115,JZX11#200010

89546SENSOR, SPEED, REAR LH

main89546-30060iGX115,JZX11#200010

9011906375

main90119-06375

9017906159

main90179-06159

9161560825

main91615-60825

91621J0612

main91621-J0612

91631J0612

main91631-J0612

91651B0616

main91651-B0616

G341633010

mainG3416-33010

18 parts on this diagram · 1 diagram in section
