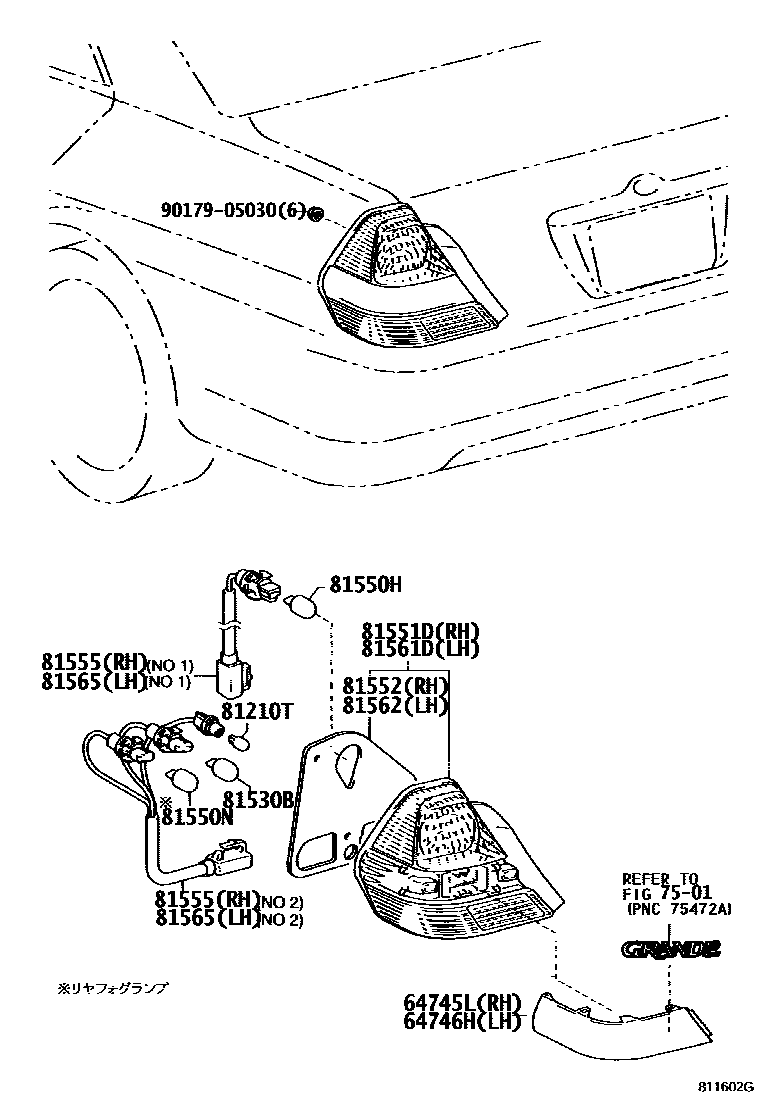

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

64745LCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-22010iGX11#,JZX11#..SED200010-200210

main64745-22020-A0iGX11#,JZX11#..GD,GDG200210-200411

SUPER WHITE 2,040

main64745-22020-A1iGX11#,JZX11#..GD,GDG200210-200411

WHITE PEARL CS.,065 ,2HF

main64745-22020-B0iGX11#,JZX11#..GD,GDG200210-200411

SILVER ME.,1C0

main64745-22020-C0iGX11#,JZX11#..GD,GDG200210-200411

BLACK MC.,211

main64745-22020-D0iGX11#,JZX11#..GD,GDG200210-200411

BLACKISH RED MC.,3P6

main64745-22020-J0iGX11#,JZX11#..GD,GDG200210-200411

DARK BLUE MC.,8P8

main64745-22030-A0iGX110,JZX110..GDS,GDV200210-200411

SUPER WHITE 2,040

main64745-22030-A1iGX110,JZX110..GDS,GDV200210-200411

WHITE PEARL CS.,065 ,2HF

main64745-22030-B0iGX110,JZX110..GDS,GDV200210-200411

SILVER ME.,1C0

main64745-22030-C0iGX110,JZX110..GDS,GDV200210-200411

BLACK MC.,211

main64745-22030-D0iGX110,JZX110..GDS,GDV200210-200411

BLACKISH RED MC.,3P6

main64745-22030-J0iGX110,JZX110..GDS,GDV200210-200411

DARK BLUE MC.,8P8

64746HCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-22010iGX11#,JZX11#..SED200010-200210

main64746-22020-A0iGX11#,JZX11#..GD,GDG200210-200411

SUPER WHITE 2,040

main64746-22020-A1iGX11#,JZX11#..GD,GDG200210-200411

WHITE PEARL CS.,065 ,2HF

main64746-22020-B0iGX11#,JZX11#..GD,GDG200210-200411

SILVER ME.,1C0

main64746-22020-C0iGX11#,JZX11#..GD,GDG200210-200411

BLACK MC.,211

main64746-22020-D0iGX11#,JZX11#..GD,GDG200210-200411

BLACKISH RED MC.,3P6

main64746-22020-J0iGX11#,JZX11#..GD,GDG200210-200411

DARK BLUE MC.,8P8

main64746-22030-A0iGX110,JZX110..GDS,GDV200210-200411

SUPER WHITE 2,040

main64746-22030-A1iGX110,JZX110..GDS,GDV200210-200411

WHITE PEARL CS.,065 ,2HF

main64746-22030-B0iGX110,JZX110..GDS,GDV200210-200411

SILVER ME.,1C0

main64746-22030-C0iGX110,JZX110..GDS,GDV200210-200411

BLACK MC.,211

main64746-22030-D0iGX110,JZX110..GDS,GDV200210-200411

BLACKISH RED MC.,3P6

main64746-22030-J0iGX110,JZX110..GDS,GDV200210-200411

DARK BLUE MC.,8P8

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

81210TBULB, REAR FOG LAMP

main90981-11059×2iGX11#,JZX11#..WG200201-200501

main90981-13043×2iGX11#,JZX11#..SED200010-200210

81530BBULB, REAR TURN SIGNAL LAMP

main90981-13043×2iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

main90981-15021×2iGX11#,JZX11#..SED200210-200411

81550HBULB, TAIL & STOP LAMP

main90981-11048×4iGX11#,JZX11#..WG200201-200501

main90981-13044×2iGX11#,JZX11#..SED200210-200411

81550NBULB, BACK UP LAMP

main90981-11059×2iGX11#,JZX11#..SED200010-200210

81551LENS, REAR COMBINATION LAMP, RH

main81551-22A10iGX11#,JZX11#200501

main81551-2A130iGX11#,JZX11#..WG200201-200501

main81551-2A140iGX11#,JZX11#..WG200201-200501

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-2A090iGX11#,JZX11#200010-200112

main81551-2A091iGX11#,JZX11#..SED200112-200210

main81551-2A100iGX11#,JZX11#200010-200112

main81551-2A101iGX11#,JZX11#..SED200112-200210

main81551-2A150iGX11#,JZX11#..GD,GDG200210-200411

main81551-2A160iGX11#,JZX11#..GD,GDG200210-200411

main81551-2A170iGX110,JZX110..GDS,GDV200210-200411

main81551-2A180iGX110,JZX110..GDS,GDV200210-200411

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-2A090iGX11#,JZX11#200010-200112

main81552-2A091iGX11#,JZX11#..SED200112-200210

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-22A10iGX11#,JZX11#200501

main81555-2A090iGX11#,JZX11#200010-200112

main81555-2A091iGX11#,JZX11#..SED200210-200411

main81555-2A130iGX11#,JZX11#..WG200201-200501

main81555-2A140iGX11#,JZX11#..WG200201-200501

main81555-2A160iGX11#,JZX11#..SED200210-200411

main81559-2A090iGX11#,JZX11#200010-200112

main81559-2A091iGX11#,JZX11#..SED200112-200210

main81559-2A100iGX11#,JZX11#200010-200112

main81559-2A101iGX11#,JZX11#..SED200112-200210

81561LENS, REAR COMBINATION LAMP, LH

main81561-22A10iGX11#,JZX11#200501

main81561-2A130iGX11#,JZX11#..WG200201-200501

main81561-2A140iGX11#,JZX11#..WG200201-200501

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-2A090iGX11#,JZX11#200010-200112

main81561-2A091iGX11#,JZX11#..SED200112-200210

main81561-2A100iGX11#,JZX11#200010-200112

main81561-2A101iGX11#,JZX11#..SED200112-200210

main81561-2A150iGX11#,JZX11#..GD,GDG200210-200411

main81561-2A160iGX11#,JZX11#..GD,GDG200210-200411

main81561-2A170iGX110,JZX110..GDS,GDV200210-200411

main81561-2A180iGX110,JZX110..GDS,GDV200210-200411

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-2A090iGX11#,JZX11#200010-200112

main81562-2A091iGX11#,JZX11#..SED200112-200210

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-22A10iGX11#,JZX11#200501

main81555-2A090iGX11#,JZX11#200010-200112

main81555-2A091iGX11#,JZX11#..SED200112-200210

main81555-2A130iGX11#,JZX11#..WG200201-200501

main81555-2A140iGX11#,JZX11#..WG200201-200501

main81555-2A160iGX11#,JZX11#..SED200210-200411

main81559-2A090iGX11#,JZX11#200010-200112

main81559-2A091iGX11#,JZX11#..SED200112-200210

main81559-2A100iGX11#,JZX11#200010-200112

main81559-2A101iGX11#,JZX11#..SED200112-200210

9017905030

main90179-05030

16 parts on this diagram · 4 diagrams in section
