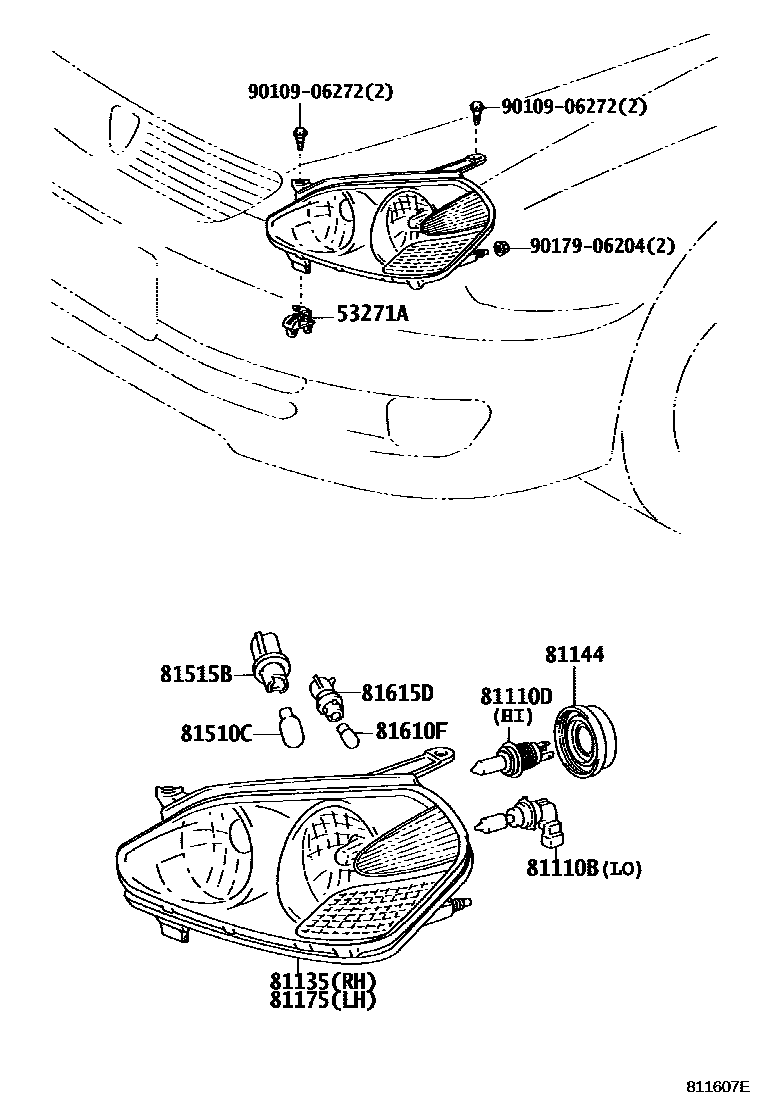

HEADLAMP

0001 1����� �������� 0002 1������-�� �������� 0003 1����� �������� 0004 1������-�� �������� 0005 1����� �������� 0006 1������-�� �������� 0007 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010×2iGX11#,JZX11#..SED200210

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13047×2iGX11#,JZX110..GD200010-200210

main90981-13063×2iGX11#,JZX110..IR,IRS200201-200501

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2iGX11#,JZX11#..WG200201-200501

main90981-13046×2iGX11#,JZX11#200501-200706

main90981-13055×2iGX11#,JZX11#..SED200010-200210

main90981-13058×2iGX11#,JZX11#..SED200210

81135UNIT ASSY, HEADLAMP, RH

main81130-22750iGX11#,JZX110..GD200010-200210

main81130-22840iGX11#,JZX110..IR,IRS200201-200501

main81130-22860iGX11#,JZX110..GD200210

main81140-22810iJZX11#..GDG,GDGT200010-200210

main81140-22820iJZX110..GDS,GDV200010-200210

main81140-22850iGX11#,JZX11#..WG200201-200501

main81145-22870iGX11#,JZX110..GD200404-200410

main81145-22880iGX110,JZX110..GDS,GDV200210

main81145-22A00iGX11#,JZX110..GD200305-200404

main81145-22A40iGX11#,JZX11#200501

81144COVER, HEADLAMP, NO.1

main81135-22850×2iGX11#,JZX11#..WG200201

main90075-65017×2iGX11#,JZX11#..SED200010-200210

81175UNIT ASSY, HEADLAMP, LH

main81070-22810iGX11#,JZX110..GD200108-200209

main81070-22820iJZX110..GDS,GDV200010-200210

main81070-22850iGX11#,JZX11#..WG200201-200501

main81170-22750iGX11#,JZX110..GD200010-200210

main81170-22840iGX11#,JZX110..IR,IRS200201-200501

main81170-22860iGX11#,JZX110..GD200210

main81185-22870iGX11#,JZX110..GD200404-200410

main81185-22880iGX110,JZX110..GDS,GDV200210

main81185-22A00iGX11#,JZX110..GD200305-200404

main81185-22A40iGX11#,JZX11#200501

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043×2iJZX11#..WG..4FC200010-200412

main90981-15011×2iGX11#,JZX11#..GD,GDG,GDGT200010-200210

main90981-15021×2iGX11#,JZX11#200501

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iGX11#,JZX11#..GD,GDG,GDGT200010-200210

main90075-99128×2iJZX110..GDS,GDV200010-200210

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×4iGX11#,JZX110..IR,IRS200201-200501

81615DSOCKET, CLEARANCE LAMP

main90075-60001×2iGX11#,JZX11#..SED200010-200210

main90075-60046×2iGX11#,JZX110..IR,IRS200302-200501

main90075-60077×4iGX11#,JZX11#..WG200302-200706

9010906272

main90109-06272

9017906204

main90179-06204

12 parts on this diagram · 7 diagrams in section
