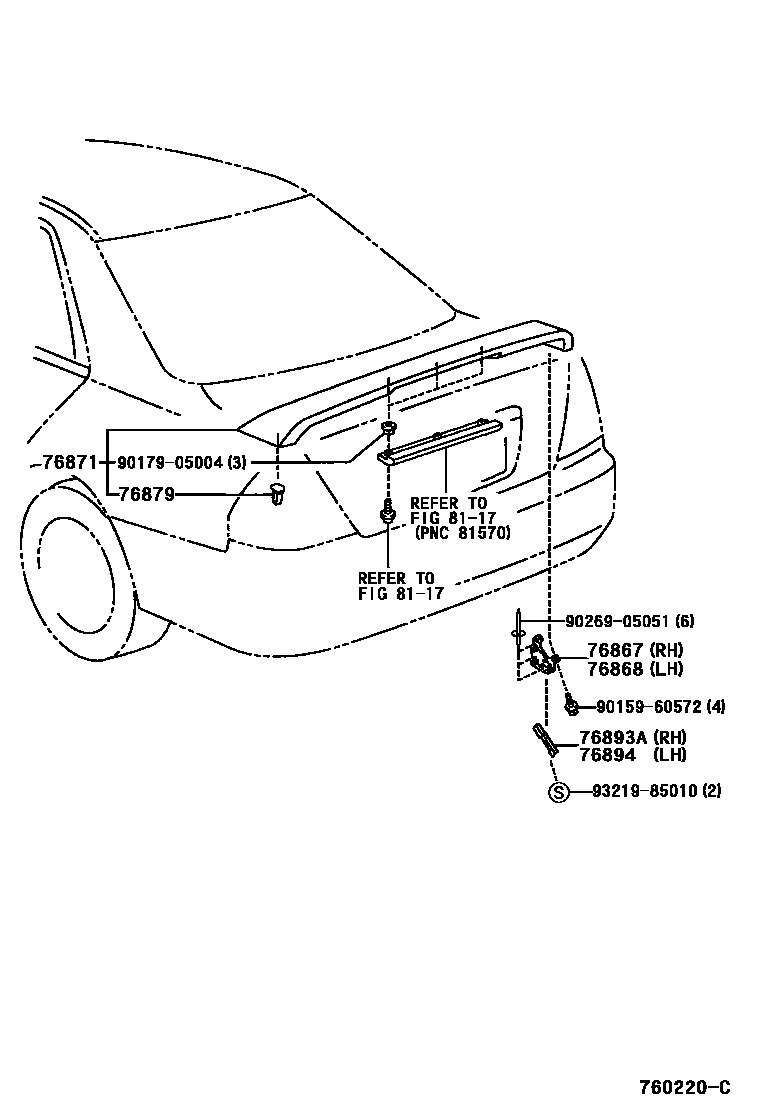

MUDGUARD & SPOILER
76867RETAINER, REAR SPOILER SIDE, RH
76868RETAINER, REAR SPOILER SIDE, LH
76871SPOILER, REAR
SUPER WHITE 2,040
WHITE PEARL CS.,065 ,2HF
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK MC.,211
BORDEAUX MC.,3P2
BLACKISH RED MC.,3P6
DARK BLUE MC.,8P8
WHITE PEARL CS.,065
SILVER ME.,1C0
GRAY ME.,1D2
SILVER ME.,1F7
BLACK,202
BORDEAUX MC.,3P2
GOLD ME.,585
LT. AQUA M.M.,772
DARK BLUE MC.,8P8
DK.BLUE MC.,8S6
76879CLIP, REAR SPOILER, NO.1
76893ACOVER, REAR SPOILER, RH
SUPER WHITE 2,040
WHITE PEARL CS.,065 ,2HF
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK MC.,211
BORDEAUX MC.,3P2
BLACKISH RED MC.,3P6
DARK BLUE MC.,8P8
76894COVER, REAR SPOILER, LH
SUPER WHITE 2,040
WHITE PEARL CS.,065 ,2HF
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK MC.,211
BORDEAUX MC.,3P2
BLACKISH RED MC.,3P6
DARK BLUE MC.,8P8
8117CENTER STOP LAMP
9015960572
main90159-60572
9017905004
main90179-05004
9026905051
main90269-05051
9321985010
main93219-85010
11 parts on this diagram · 2 diagrams in section
