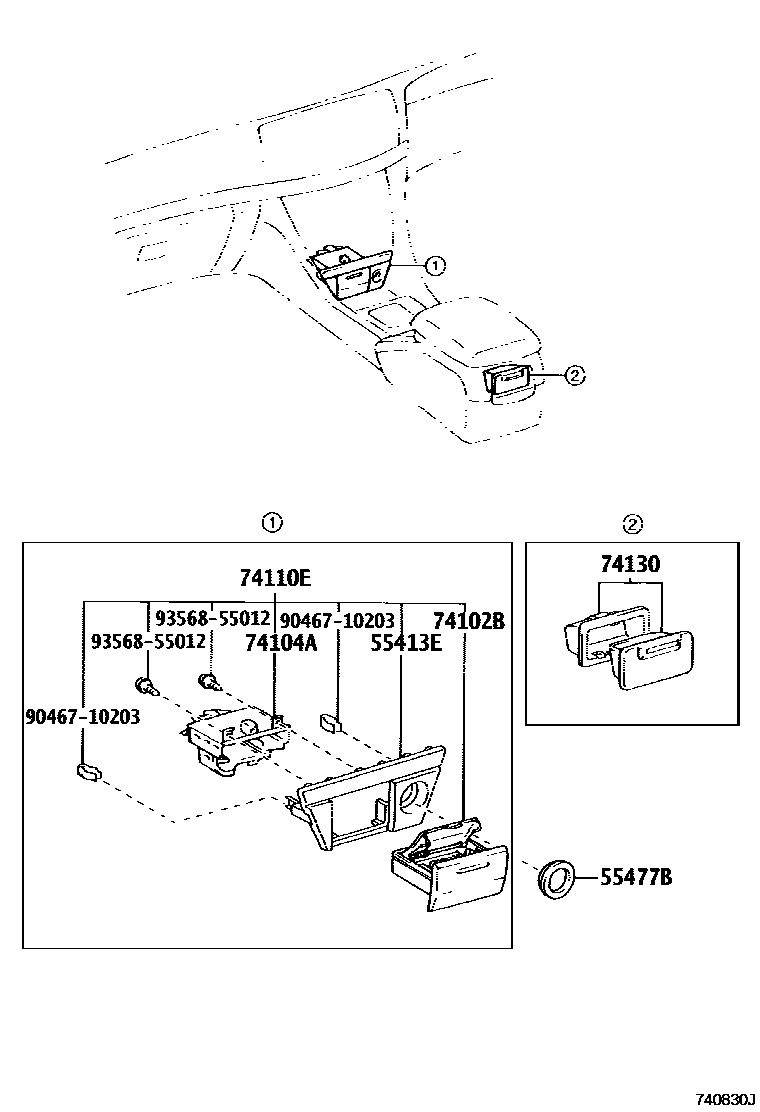

ASH RECEPTACLE

55413EPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

main55413-22060iGX11#,JZX11#..WG200201

55477BBEZEL, CIGARETTE LIGHTER HOLE

main55477-20110iGX11#,JZX11#..SED200210

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-22140iGX11#,JZX11#..SED200010-200210

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-22180iGX11#,JZX11#..SED200010-200210

main74104-22190iGX11#,JZX11#..WG200201

74110ERECEPTACLE ASSY, FRONT ASH

main74110-22180iGX11#,JZX11#..SED200210

main74110-22200iGX11#,JZX11#..WG200201

74130RECEPTACLE ASSY, REAR ASH

main74130-22180-A0iGX11#,JZX11#..GD,GDG200210-200411

IVORY,TRIM0#

main74130-22180-B0iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010-200706

MD.CHARCOAL,TRIM1#

main74130-22180-C0iGX110,JZX110..GDS,GDV200210-200411

BLACK,TRIM2#

9046710203

main90467-10203

9356855012

main93568-55012

8 parts on this diagram · 1 diagram in section
