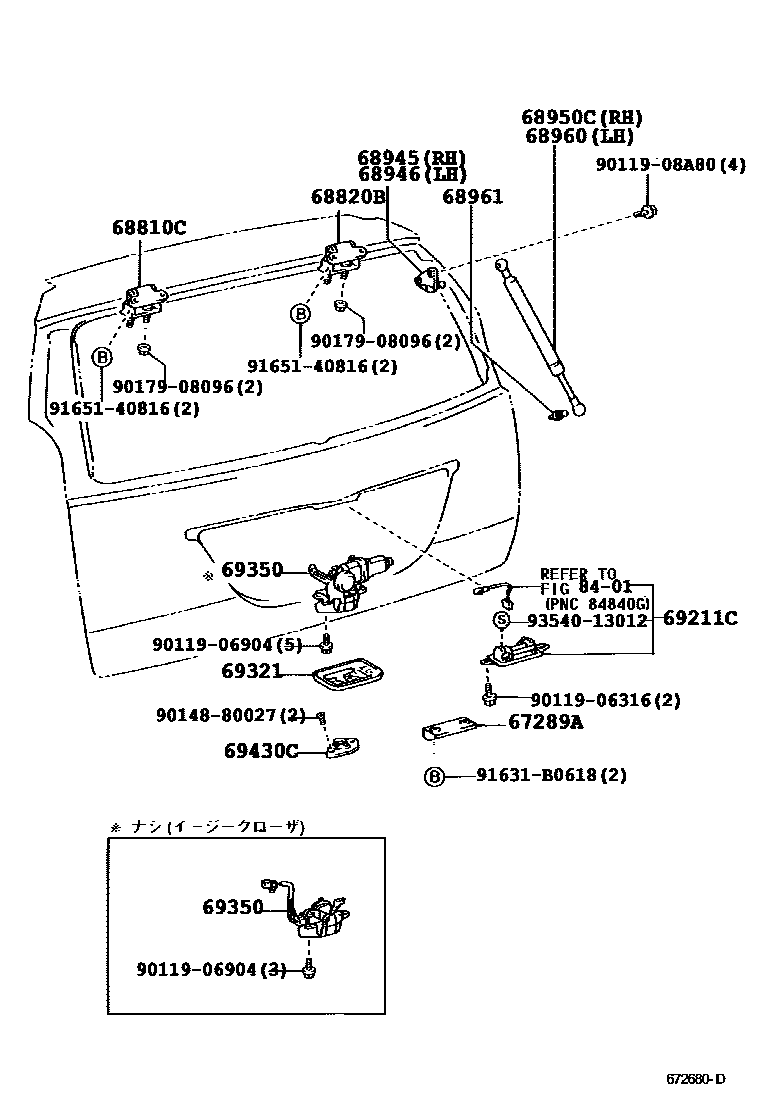

BACK DOOR LOCK & HANDLE

67289ADAMPER, BACK DOOR

main67372-31010iGX11#,JZX11#..WG200201

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iGX11#,JZX11#..WG200201-200706

68820BHINGE ASSY, BACK DOOR, LH

main68810-21050iGX11#,JZX11#..WG200201-200706

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-22010iGX11#,JZX11#..WG200201

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-22010iGX11#,JZX11#..WG200201

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W150iGX11#,JZX110..IR,IRS200201-200501

main68950-0W160iGX11#,JZX11#..WG200201-200503

sub68950-0W161

main68950-0W161iGX11#,JZX11#200504

68960STAY ASSY, BACK DOOR, LH

main68960-0W150iGX11#,JZX110..IR,IRS200201-200501

main68960-0W160iGX11#,JZX11#..WG200201-200503

sub68960-0W161

main68960-0W161iGX11#,JZX11#200504

68961BOLT, BACK DOOR STAY

main68961-20051iGX11#,JZX11#..WG200201

69211CHANDLE, BACK DOOR OUTSIDE

main69023-22010iGX11#,JZX11#..WG200201

69321COVER, BACK DOOR LOCK

main69321-22020iGX11#,JZX11#..WG200201

69350LOCK ASSY, BACK DOOR

main69350-22010iGX11#,JZX110..IR,IRS200201-200501

sub69350-22011

main69350-22020iGX11#,JZX11#..WG200201

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48010iGX11#,JZX11#..WG200201

8401

9011906316

main90119-06316

9011906904

main90119-06904

9011908A80

main90119-08A80

9014880027

main90148-80027

9017908096

main90179-08096

91631B0618

main91631-B0618

9165140816

main91651-40816

9354013012

main93540-13012

21 parts on this diagram · 1 diagram in section
