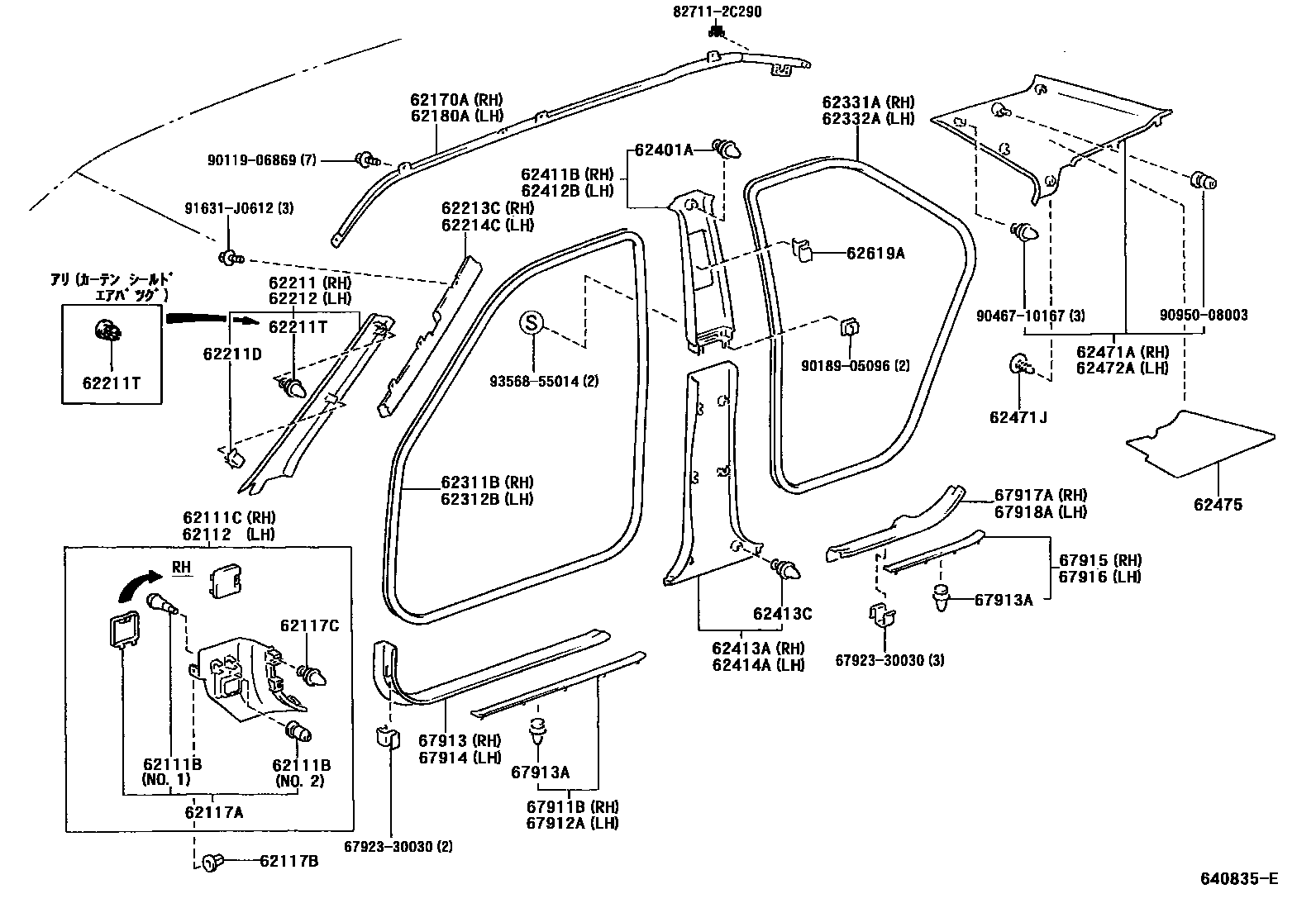

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-05015-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

sub90467-05015

main90467-05015-B2iGX11#,JZX11#..GD,GDG,GDGT200010-200706

sub90467-05015

main90467-05015-C0iGX110,JZX110..GDS,GDV200010-200706

sub90467-05015

main90467-08031-A0iGX11#,JZX11#..GD,GDG200010-200411

sub90467-08031

main90467-08031-B2iGX11#,JZX11#..GD,GDG200010-200706

sub90467-08031

main90467-08031-C0iGX11#,JZX11#200010-200706

sub90467-08031

62111CBOARD, COWL SIDE TRIM, RH

main62111-22150-A0iGX11#,JZX11#..GD,GDG200010-200411

IVORY,TRIM0#

sub62111-22150

main62111-22150-B0iGX11#,JZX11#..GD,GDG200010-200411

MD.CHARCOAL,TRIM1#

sub62111-22150

main62111-22150-C0iGX11#,JZX115..WG;JZX110..GDS,GDV,IRS,IRV200010-200411

BLACK,TRIM2#

sub62111-22150

main62111-22151-B0iGX11#,JZX11#200501-200706

MD.CHARCOAL,TRIM1#

sub62111-22151

main62111-22151-C0iGX11#,JZX11#200501-200706

BLACK,TRIM2#

sub62111-22151

62112BOARD, COWL SIDE TRIM, LH

main62112-22180-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

IVORY,TRIM0#

sub62112-22181

main62112-22180-B0iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010-200411

MD.CHARCOAL,TRIM1#

sub62112-22181

main62112-22180-C0iGX110,JZX110..GDS,GDV200010-200411

BLACK,TRIM2#

sub62112-22181

main62112-22181-B0iGX11#,JZX11#200501-200706

MD.CHARCOAL,TRIM1#

main62112-22181-C0iGX11#,JZX11#200501-200706

BLACK,TRIM2#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-22130-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

sub62117-22130

main62117-22130-B0iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010-200411

sub62117-22130

main62117-22130-C0iGX11#,JZX115..WG;JZX110..GDS,GDV,IRS,IRV200010-200411

sub62117-22130

main62117-22131-B0iGX11#,JZX11#200501-200706

sub62117-22131

main62117-22131-C0iGX11#,JZX11#200501-200706

sub62117-22131

main62117-22140-A0iGX11#,JZX11#..GD,GDG200010-200411

sub62117-22140

main62117-22140-B0iGX11#,JZX11#200010-200706

sub62117-22140

main62117-22140-C0iJZX110..GDS,GDV200010-200706

sub62117-22140

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06158-A0iGX11#,JZX11#..GD,GDG200010-200411

IVORY,TRIM0#

main90467-06158-B2iGX11#,JZX11#..GD,GDG,GDGT200010-200706

MD.CHARCOAL,TRIM1#

main90467-06158-C0iGX11#,JZX11#200010-200706

BLACK,TRIM2#

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-10162iGX11#,JZX11#..SED200010-200411

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-22010iGX11#,JZX11#200010-200201

sub62170-22020

main62170-22020iGX11#,JZX11#200201-200206

sub62170-22030

main62170-22030iGX11#,JZX11#..SED200206-200210

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-22010iGX11#,JZX11#200010-200201

sub62180-22020

main62180-22020iGX11#,JZX11#200201-200206

sub62180-22030

main62180-22030iGX11#,JZX11#..SED200206-200210

62211GARNISH, FRONT PILLAR, RH

main62211-22350-A0iGX11#,JZX11#..GD,GDG200010-200411

sub62211-22350

main62211-22350-B0iGX110,JZX110..GDS,GDV200010-200411

sub62211-22350

main62211-22350-B0iGX110,JZX110..GDS,GDV200010-200411

sub62211-22350

main62211-22350-B0iGX11#,JZX11#..WG200201-200706

sub62211-22350

main62211-22360-A0iGX11#,JZX11#..GD,GDG200010-200411

IVORY,TRIM0#

main62211-22360-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

MEDIUM CHACOAL,TRIM1#

main62211-22360-B0iGX110,JZX110..GDS,GDV200010-200411

MEDIUM CHACOAL,TRIM2#

main62211-22360-B0iGX11#,JZX11#..WG200201-200706

MEDIUM CHACOAL,TRIM1#,2#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-09204iGX11#,JZX11#..SED200010-200210

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iGX11#,JZX11#..SED200010-200210

main90950-08001iGX11#,JZX11#..WG200010-200210

62212GARNISH, FRONT PILLAR, LH

main62212-22360-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

sub62212-22360

main62212-22360-B0iJZX110..GDS,GDV200010-200411

sub62212-22360

main62212-22360-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

sub62212-22360

main62212-22360-B0iGX11#,JZX11#..WG200201-200706

sub62212-22360

main62212-22370-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

IVORY,TRIM0#

main62212-22370-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

MEDIUM CHACOAL,TRIM1#

main62212-22370-B0iJZX110..GDS,GDV200010-200411

MEDIUM CHACOAL,TRIM2#

main62212-22370-B0iGX11#,JZX11#..WG200201-200706

MEDIUM CHACOAL,TRIM1#,2#

62213CPAD, FRONT PILLAR GARNISH, RH

main62213-22030iGX11#,JZX11#..WG200010-200210

62214CPAD, FRONT PILLAR GARNISH, LH

main62214-22020iGX11#,JZX11#..SED200010-200210

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-22130-A0iGX11#,JZX11#..GD,GDG200010-200411

IVORY,TRIM0#

main62311-22130-B0iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010-200706

MEDIUM CHACOAL,TRIM1#

main62311-22130-C0iJZX110..GDS,GDV200010-200210

BLACK,TRIM2#

main62311-22130-C1iGX11#,JZX11#..WG200201-200706

BLACK,TRIM2#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-22130-A0iGX11#,JZX11#..GD,GDG200010-200411

IVORY,TRIM0#

main62312-22130-B0iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010-200706

MEDIUM CHACOAL,TRIM1#

main62312-22130-C0iJZX110..GDS,GDV200010-200210

BLACK,TRIM2#

main62312-22130-C1iGX11#,JZX11#..WG200201-200706

BLACK,TRIM2#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-22120-A0iGX11#,JZX11#..GD,GDG200210-200411

main62331-22120-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200210

IVORY,TRIM0#

main62331-22120-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

main62331-22120-C0iJZX110..GDS,GDV200010-200210

main62331-22120-C1iGX110,JZX110..GDS,GDV200210-200411

main62331-22140-A0iGX11#,JZX11#..GD,GDG200210-200411

main62331-22140-B0iGX11#,JZX11#..GD,GDG200201-200411

main62331-22140-B0iGX11#,JZX11#..WG200201

MEDIUM CHACOAL,TRIM1#

main62331-22140-C0iJZX110..GDS,GDV200201-200411

main62331-22140-C0iGX11#,JZX11#..WG200201

BLACK,TRIM2#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-22120-A0iGX11#,JZX11#..GD,GDG200210-200411

main62332-22120-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200210

IVORY,TRIM0#

main62332-22120-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

main62332-22120-C0iJZX110..GDS,GDV200010-200210

main62332-22120-C1iGX110,JZX110..GDS,GDV200210-200411

main62332-22140-A0iGX11#,JZX11#..GD,GDG200210-200411

main62332-22140-B0iGX11#,JZX11#..GD,GDG,GDGT200201-200411

main62332-22140-B0iGX11#,JZX11#..WG200201

MEDIUM CHACOAL,TRIM1#

main62332-22140-C0iGX11#,JZX11#..WG200201

BLACK,TRIM2#

main62332-22140-C0iJZX110..GDS,GDV200201-200411

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167iGX11#,JZX11#..SED200010-200210

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-22370-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

IVORY,TRIM0#

main62411-22370-B0iGX11#,JZX11#..GD,GDG200010-200411

MEDIUM CHACOAL,TRIM1#

main62411-22370-B0iJZX110..GDS,GDV200010-200411

MEDIUM CHACOAL,TRIM2#

main62411-22370-B0iGX11#,JZX11#..WG200201-200706

MEDIUM CHACOAL,TRIM1#,2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-22390-A0iGX11#,JZX11#..GD,GDG200010-200411

IVORY,TRIM0#

main62412-22390-B0iGX110,JZX110..GDS,GDV200010-200411

MEDIUM CHACOAL,TRIM1#

main62412-22390-B0iGX11#,JZX11#..GD,GDG200010-200411

MEDIUM CHACOAL,TRIM2#

main62412-22390-B0iGX11#,JZX11#..WG200201-200706

MEDIUM CHACOAL,TRIM1#,2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-22140-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

IVORY,TRIM0#

sub62413-22140

main62413-22140-B0iGX11#,JZX11#..GD,GDG200010-200706

MD.CHARCOAL,TRIM1#

sub62413-22140

main62413-22140-C0iGX110,JZX110..GDS,GDV200010-200706

BLACK,TRIM2#

sub62413-22140

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-09215iGX11#,JZX11#200010-200106

main90467-10188iGX11#,JZX11#..SED200106-200210

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-22140-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

IVORY,TRIM0#

sub62414-22140

main62414-22140-B0iGX11#,JZX11#..GD,GDG200010-200706

MD.CHARCOAL,TRIM1#

sub62414-22140

main62414-22140-C0iGX110,JZX110..GDS,GDV200010-200706

BLACK,TRIM2#

sub62414-22140

62471AGARNISH, ROOF SIDE, INNER RH

main62470-22080-B0iGX11#,JZX11#..WG200201-200706

MEDIUM CHACOAL,TRIM1#,2#

main62470-22090-B0iGX11#,JZX11#..WG200201-200706

main62471-22360-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

IVORY,TRIM0#

main62471-22360-B0iGX110,JZX110..GDS,GDV200010-200411

MEDIUM CHACOAL,TRIM2#

main62471-22360-B0iGX11#,JZX11#..GD,GDG200010-200411

MEDIUM CHACOAL,TRIM1#

main62471-22380-A0iGX11#,JZX11#..GD,GDG200010-200411

main62471-22380-B0iJZX110..GDS,GDV200010-200411

main62471-22380-B0iJZX110..GDS,GDV200010-200411

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-06049-22iJZX110..GDS,GDV200010-200210

BLACK,TRIM20

sub90467-06049

main90467-06049-22iGX11#,JZX11#..GD,GDG,GDGT200010-200210

BLACK,TRIM00,10

sub90467-06049

main90467-06049-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200210

SHADOW GRAY,TRIM00,10

sub90467-06049

main90467-06049-B0iGX11#,JZX11#..WG200201-200706

SHADOW GRAY,TRIM10,20

sub90467-06049

main90467-06049-B0iGX110,JZX110..GDS,GDV200210-200411

SHADOW GRAY,TRIM0#,1#

sub90467-06049

main90467-06049-B0iGX11#,JZX11#..GD,GDG200210-200411

SHADOW GRAY,TRIM2#

sub90467-06049

main90467-06049-B0iJZX110..GDS,GDV200010-200210

SHADOW GRAY,TRIM20

sub90467-06049

62472AGARNISH, ROOF SIDE, INNER LH

main62472-22350-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

IVORY,TRIM0#

main62472-22350-B0iJZX110..GDS,GDV200010-200411

MEDIUM CHACOAL,TRIM2#

main62472-22350-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

MEDIUM CHACOAL,TRIM1#

main62472-22370-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

main62472-22370-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

main62472-22370-B0iJZX110..GDS,GDV200010-200411

main62480-22080-B0iGX11#,JZX11#..WG200201-200706

MEDIUM CHACOAL,TRIM1#,2#

main62480-22090-B0iGX11#,JZX11#..WG200201-200706

62475PAD, ROOF SIDE INNER GARNISH

main62475-22190iGX11#,JZX11#..SED200010-200210

62619APLATE, SIDE TRIM SET

main62619-30020iGX11#,JZX11#..SED200010-200210

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67910-22010iJZX11#..GDG,GDGT,GDS,GDV200010-200108

sub67910-22011

main67910-22011iJZX11#..GDG,GDGT,GDS,GDV200108-200210

main67910-22011iGX11#,JZX110..GD200404-200410

main67910-22011iGX11#,JZX110..GD200108-200309

main67910-22011iGX11#,JZX110..GD200305-200404

main67911-22100iGX11#,JZX110..GD200010-200406

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67910-22010iJZX11#..GDG,GDGT,GDS,GDV200010-200108

sub67910-22011

main67910-22011iGX11#,JZX110..GD200404-200410

main67910-22011iGX11#,JZX11#..WG200108-200210

main67910-22011iGX11#,JZX110..GD200305-200404

main67910-22011iGX11#,JZX110..GD200108-200309

main67911-22100iGX11#,JZX110..GD200010-200406

67913PLATE, FRONT DOOR SCUFF, RH

main67913-22130-A0iGX11#,JZX11#..GD,GDG200010-200411

IVORY,TRIM0#

sub67913-22130

main67913-22130-B0iGX11#,JZX11#..GD,GDG200010-200706

MD.CHARCOAL,TRIM1#

sub67913-22130

main67913-22130-C0iGX11#,JZX115..WG;JZX110..GDS,GDV,IRS,IRV200010-200706

BLACK,TRIM2#

sub67913-22130

67913ACLIP(FOR SCUFF PLATE)

main90467-10162iGX11#,JZX110..GD200010-200210

67914PLATE, FRONT DOOR SCUFF, LH

main67914-22120-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

IVORY,TRIM0#

sub67914-22120

main67914-22120-B0iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010-200706

MD.CHARCOAL,TRIM1#

sub67914-22120

main67914-22120-C0iGX11#,JZX115..WG;JZX110..GDS,GDV,IRS,IRV200010-200706

BLACK,TRIM2#

sub67914-22120

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-22100iGX11#,JZX110..GD200010-200210

main67915-22100iGX11#,JZX110..IR,IRS200201-200406

main67930-22010iJZX11#..GDG,GDGT,GDS,GDV200010-200108

sub67930-22011

main67930-22011iGX11#,JZX11#..WG200108-200210

main67930-22011iGX11#,JZX110..GD200305-200404

main67930-22011iGX11#,JZX110..GD200108-200309

main67930-22011iGX11#,JZX110..GD200404-200410

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-22100iGX11#,JZX110..GD200010-200406

main67940-22010iJZX11#..GDG,GDGT,GDS,GDV200010-200108

sub67940-22011

main67940-22011iJZX11#..GDG,GDGT,GDS,GDV200108-200210

main67940-22011iGX11#,JZX110..GD200108-200309

main67940-22011iGX11#,JZX110..GD200305-200404

main67940-22011iGX11#,JZX110..GD200404-200410

67917APLATE, REAR DOOR SCUFF, RH

main67917-22120-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

IVORY,TRIM0#

sub67917-22120

main67917-22120-B0iGX11#,JZX11#..GD,GDG200010-200706

MD.CHARCOAL,TRIM1#

sub67917-22120

main67917-22120-C0iGX11#,JZX115..WG;JZX110..GDS,GDV,IRS,IRV200010-200706

BLACK,TRIM2#

sub67917-22120

67918APLATE, REAR DOOR SCUFF, LH

main67918-22120-A0iGX11#,JZX11#..GD,GDG200010-200411

IVORY,TRIM0#

sub67918-22120

main67918-22120-B0iGX11#,JZX11#..GD,GDG200010-200706

MD.CHARCOAL,TRIM1#

sub67918-22120

main67918-22120-C0iGX11#,JZX115..WG;JZX110..GDS,GDV,IRS,IRV200010-200706

BLACK,TRIM2#

sub67918-22120

6792330030CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-30030

827112C290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C290

9011906869

main90119-06869

9018905096

main90189-05096

9046710167

main90467-10167

9095008003

main90950-08003

91631J0612

main91631-J0612

9356855014

main93568-55014

46 parts on this diagram · 2 diagrams in section
