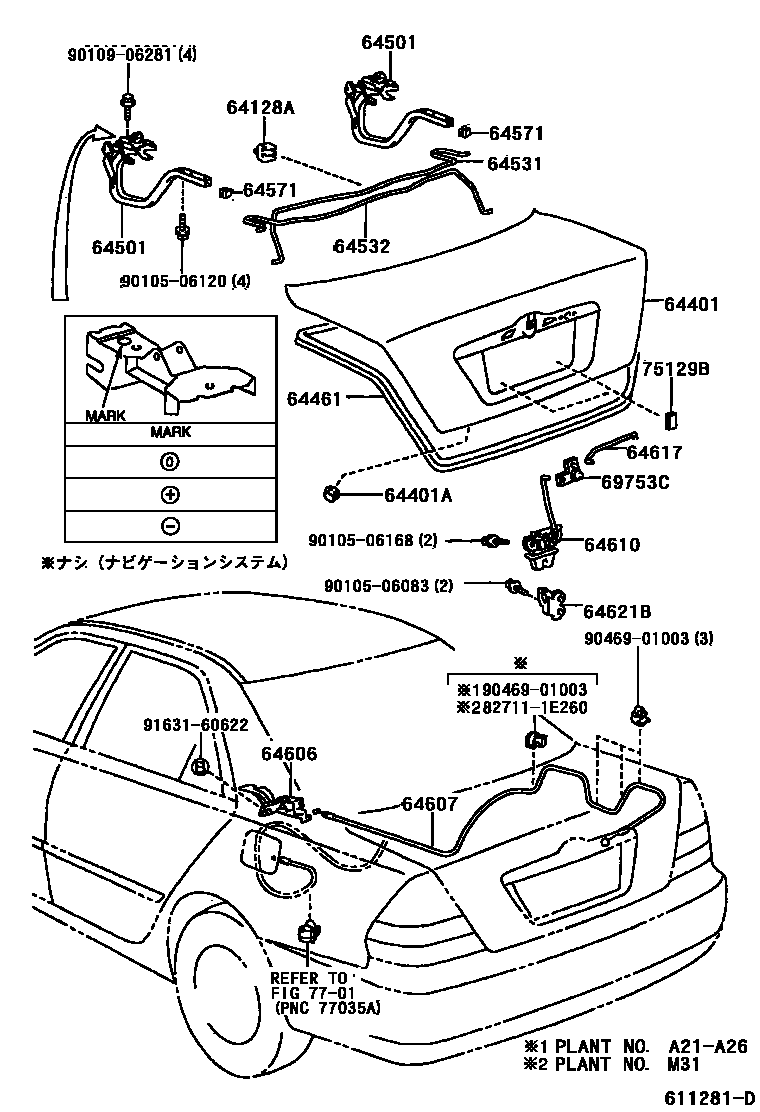

LUGGAGE COMPARTMENT DOOR & LOCK

64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2

main64128-51010iGX11#,JZX11#..SED200010-200210

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-22770iGX11#,JZX11#..SED200010-200210

main64401-22780iJZX110..GDS,GDV200010-200210

main64401-22790iGX11#,JZX11#..SED200210-200411

main64401-22800iGX110,JZX110..GDS,GDV200210-200411

main64401-22810iGX11#,JZX11#..GD,GDG200210-200411

main64401-22830iGX110,JZX110..GDS,GDV200305-200411

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09079×2iGX11#,JZX11#..SED200108-200210

main90541-10027×2iGX11#,JZX11#200010-200108

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-22300iGX11#,JZX11#..SED200210

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-22250×2iGX11#,JZX11#200010-200106

main64510-22251×2iGX11#,JZX11#..SED200210-200411

main64510-22260×2iGX11#,JZX11#200010-200106

main64510-22261×2iGX11#,JZX11#..SED200210-200411

main64510-22270×2iGX11#,JZX11#200010-200106

main64510-22271×2iGX11#,JZX11#..SED200210-200411

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-22370iGX11#,JZX11#200010-200106

main64531-22371iGX11#,JZX11#..SED200106-200210

main64531-22380iJZX110..GDS,GDV200010-200106

main64531-22381iGX110,JZX110..GDS,GDV200210-200411

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-22370iGX11#,JZX11#200010-200106

main64532-22371iGX11#,JZX11#..SED200106-200210

main64532-22380iJZX110..GDS,GDV200010-200106

main64532-22381iJZX110..GDS,GDV200106-200210

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-22020×2iGX11#,JZX11#..SED200010-200210

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-53010iGX11#,JZX11#..SED200010-200210

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22370iGX11#,JZX11#..SED200010-200210

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-22060iGX110..GDS; JZX110..SED;GX11#,JZX115..GD,GDG200210

main64610-22210iGX115..GD200010-200210

64617LINK, LUGGAGE COMPARTMENT DOOR LOCK

main64617-22050iGX11#,JZX11#..SED200010-200210

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-53010iGX11#,JZX11#..SED200010-200210

69753CBELLCRANK, DOOR LOCK CONTROL

main69753-10010iGX11#,JZX11#..SED200010-200210

75129BCUSHION, REAR LICENCE PLATE

main75129-13020×2iGX11#,JZX11#..SED200010-200210

7701FUEL TANK & TUBE

→ Go to FIG 77-01

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9010506083

main90105-06083

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9046901003

main90469-01003

9163160622

main91631-60622

23 parts on this diagram · 1 diagram in section
