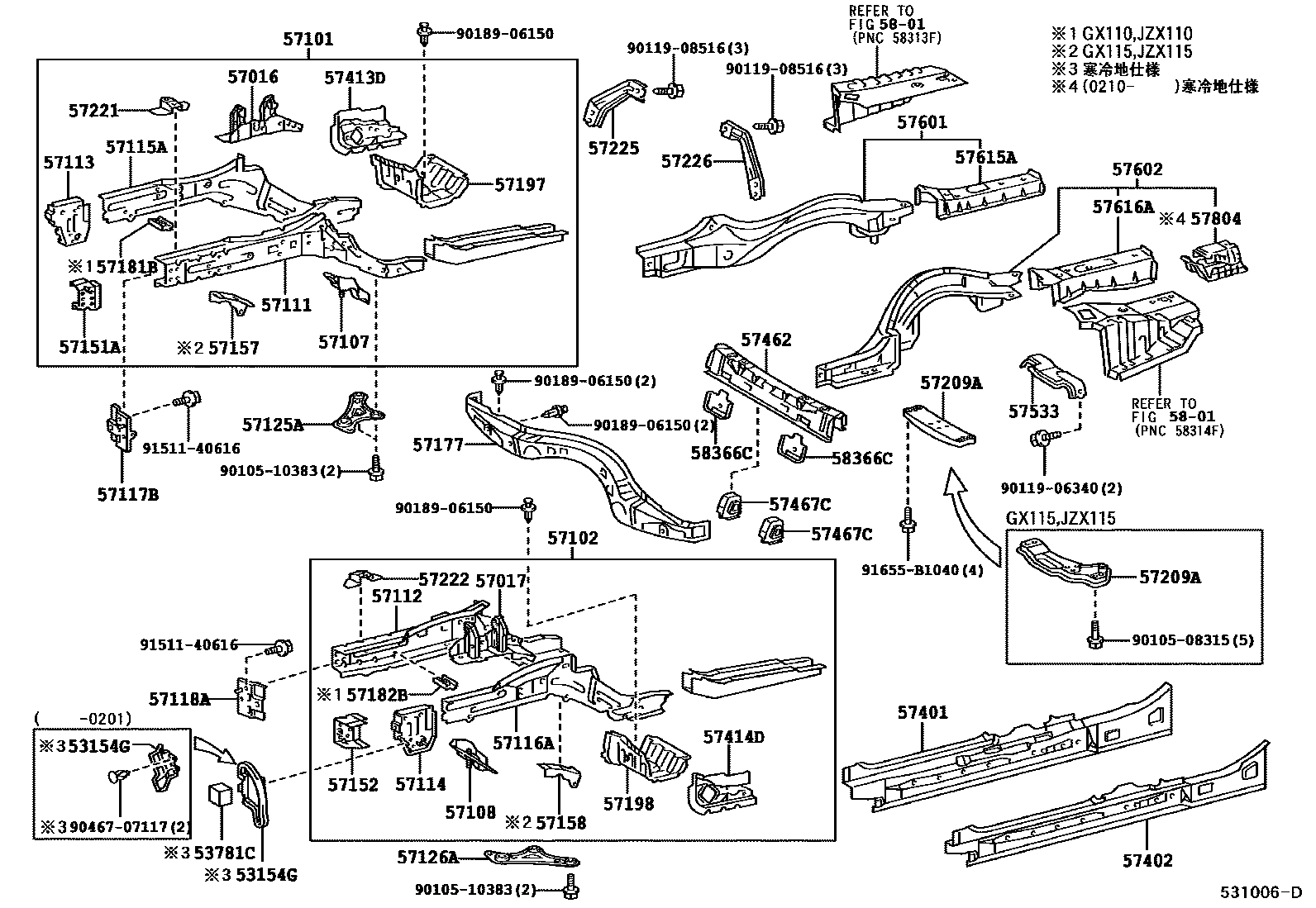

FLOOR SIDE MEMBER

0001 1 0002 1HOLE PLUG 0003 1 0004 1HOLE PLUG

53154GGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-22020iGX11#,JZX11#200010-200201

main53154-22040iGX11#,JZX11#..SED200201-200210

53781CSEAL, FRONT FENDER APRON, LOWER

main53781-22020iGX11#,JZX11#..SED200201-200210

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30030iGX115,JZX115200010-200303

main57016-30031iGX115,JZX115..SED200210

main57016-51010iGX110,JZX110..WG200010-200210

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30030iGX115,JZX115..SED200010-200210

main57017-51010iGX110,JZX110..SED200010-200210

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-22400iGX110,JZX110..SED200010-200210

main57101-22410iGX115,JZX115..SED200010-200210

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-22440iGX110,JZX110..SED200010-200210

main57102-22450iGX115,JZX115..SED200010-200210

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-30040iGX115,JZX115..SED200010-200706

main57107-51010iJZX110;GX110..GD,IR200010-200706

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-30050iGX115,JZX115200010-200706

main57108-51010iJZX110;GX110..GD,IR200010-200706

57111MEMBER, FRONT SIDE, RH

main57111-30070iGX115,JZX115..SED200010-200210

main57111-51010iGX110,JZX110..SED200010-200404

main57111-51011iGX110,JZX110..SED200404

57112MEMBER, FRONT SIDE, LH

main57112-30070iGX115,JZX115..SED200010-200210

main57112-51010iGX110,JZX110..SED200010-200404

main57112-51011iGX110,JZX110..SED200404

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-22100iGX11#,JZX11#..SED200010-200210

main57113-30040iGX11#,JZX11#200010-200201

main57113-30041iGX11#,JZX11#..SED200201-200210

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-22100iGX11#,JZX11#..WG200010-200210

main57114-30030iGX115,JZX115200010-200201

main57114-30031iGX110,JZX110..SED200201-200210

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-51010iGX11#,JZX11#..SED200010-200210

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-51010iGX11#,JZX11#..SED200010-200210

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-30030iGX11#,JZX11#..WG200010-200210

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-30030iGX11#,JZX11#..SED200010-200210

57125APLATE, STRUT BAR BRACKET, RH

main57125-30040iGX115,JZX115..SED200010-200210

main57125-51010iGX110,JZX110..GD,GDG200010-200210

57126APLATE, STRUT BAR BRACKET, LH

main57126-30020iGX115,JZX115..SED200010-200210

main57126-51010iGX110,JZX110..GD,GDG,GDGT200010-200210

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30021iGX11#,JZX11#..SED200010-200210

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30021iGX11#,JZX11#..SED200010-200210

57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-30020iGX115,JZX115..SED200010-200210

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-30020iGX115,JZX115..SED200010-200210

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57103-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

57181BPLATE, FRONT SIDE MEMBER, NO.3 RH

main57181-53010iJZX110;GX110..GD,IR200010-200404

main57181-53011iGX110,JZX110..SED200404

57182BPLATE, FRONT SIDE MEMBER, NO.3 LH

main57181-53010iJZX110;GX110..GD,IR200010-200404

main57181-53011iGX110,JZX110..SED200404

57197BOX, TORQUE, FRONT RH

main57197-51010iGX11#,JZX11#..WG200010-200210

57198BOX, TORQUE, FRONT LH

main57198-51010iGX11#,JZX11#..SED200010-200210

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-22180iGX115,JZX115200010

main57255-30110iJZX110;GX110..GD,IR200010

57221BRACKET, FRONT SIDE MEMBER, RH

main57221-30040iGX11#,JZX11#..SED200010-200210

57222BRACKET, FRONT SIDE MEMBER, LH

main57221-30040iGX11#,JZX11#..SED200010-200210

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-30020iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-30021iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-22210iGX11#,JZX11#200010-200201

main57401-22211iGX11#,JZX11#..SED200201-200706

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-22210iGX11#,JZX11#200010-200201

main57402-22211iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200201-200706

57413DEXTENSION, FLOOR SIDE, INNER RH

main57413-22040iGX11#,JZX11#..SED200010-200210

57414DEXTENSION, FLOOR SIDE, INNER LH

main57414-22040iGX11#,JZX11#..SED200010-200210

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57462-51010iGX11#,JZX11#..SED200010-200210

57467CSTIFFENER, CENTER FLOOR CROSSMEMBER

main57467-30060iGX11#,JZX11#..SED200010-200210

57533BRACE, FRONT FLOOR, CENTER

main57533-22030iJZX110..GD,GDG,GDS200010-200105

main57533-22031iJZX110..GD,GDG,GDS,IRS200105

main57533-30020iGX115,JZX115..SED200010

main57533-51010iGX110..GD,IR;JZX110..GDGT,GDV,IRV200010

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-22918iGX11#,JZX11#..SED200010-200411

main57601-22921iGX11#,JZX11#..WG200201-200706

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-22912iGX11#,JZX11#..SED200010-200411

main57602-22913iGX11#,JZX11#..SED200210-200411

main57602-22917iGX11#,JZX11#..WG200201-200706

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-22908iGX11#,JZX11#..SED200010-200411

main57615-22909iGX11#,JZX11#..WG200201

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-22907iGX11#,JZX11#..SED200010-200411

main57616-22908iGX11#,JZX11#..WG200201

main57616-22909iGX11#,JZX11#..SED200210-200411

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-22120iGX11#,JZX11#..SED200210

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58366CREINFORCEMENT, FUEL TANK SUPPORT, REAR

main58366-30050iGX11#,JZX11#..SED200010-200210

9010508315

main90105-08315

9010510383

main90105-10383

9011906340

main90119-06340

9011908516

main90119-08516

9018906150

main90189-06150

9046707117

main90467-07117

9151140616

main91511-40616

91655B1040

main91655-B1040

54 parts on this diagram · 4 diagrams in section
