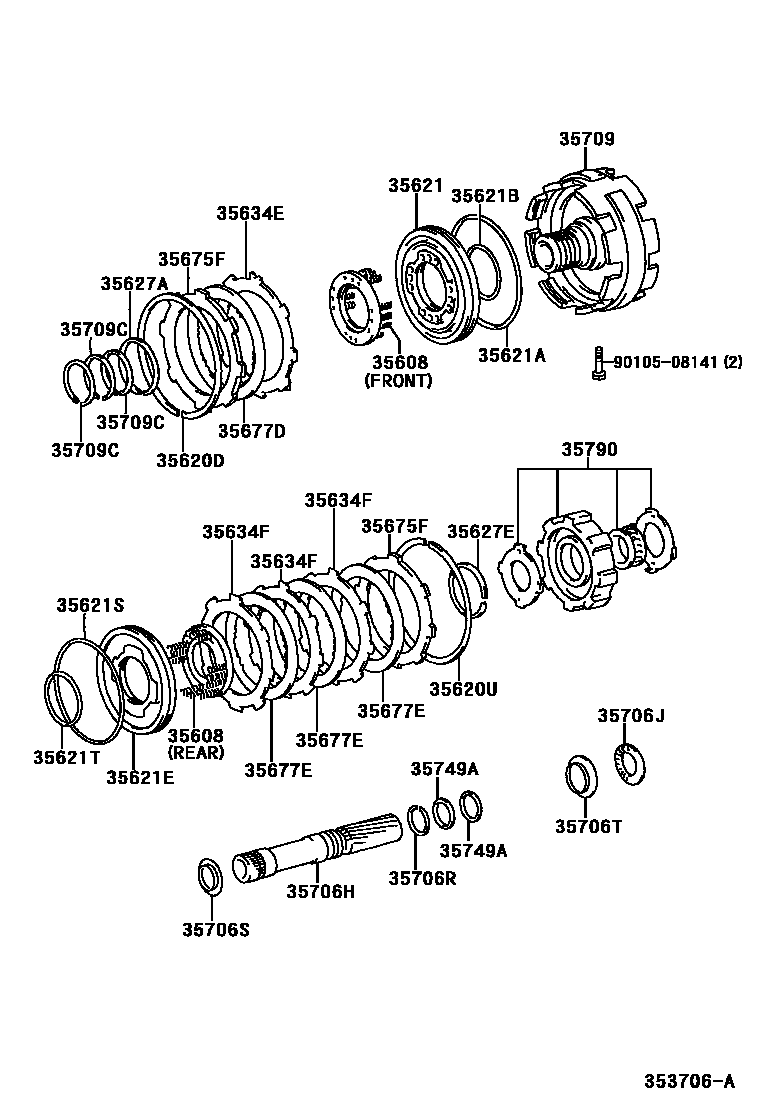

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A42DE 0002 1A340E,A343E,A340H 0003 1A650E

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-20010iGX110..SED200210-200411

main35608-22010iGX110..GD,IR200010-200706

main35608-30010iGX115,JZX11#..4FC200010-200706

35620DRING (FOR BRAKE)

main90521-99139iGX110..GD,IR200010-200706

35620URING (FOR REAR BRAKE)

main90521-99139iGX110..GD,IR200010-200706

35621PISTON, BRAKE, NO.1

main35624-22010iGX110..GD,IR200010

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99110iGX110..GD200010-200210

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-56007iGX110..GD200010-200210

35621EPISTON, BRAKE (FOR REAR BRAKE)

main35621-30010iGX110..GD,IR200010

35621SRING (FOR REAR BRAKE PISTON OUTER)

main90301-99107iGX110..GD,IR200010

35621TRING (FOR REAR BRAKE PISTON INNER)

main90301-56007iGX110..GD200010-200210

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262iGX110..GD200010-200210

35627ERING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)

main90520-52262iGX110..SED200210-200411

35634EPLATE, CLUTCH (FOR BRAKE)

main35634-22060iGX110..SED200210-200411

35634FPLATE, CLUTCH (FOR REAR BRAKE)

main35634-22100×2iGX110..SED200210-200411

main35648-30020iGX110..GD,IR200010

35675FFLANGE, CLUTCH (FOR BRAKE)

main35675-22140×2iGX110..SED200210-200411

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-30080×5iJZX110..4FC..GDV200210-200411

main35667-60010×4iGX115,JZX11#..4FC..(GD,GDG,IR,IRS)200010-200706

35677DDISC, CLUTCH (FOR REAR BRAKE)

main35677-30140iGX110..GD,IR200010

35677EDISC, CLUTCH (FOR REAR BRAKE)

main35677-22090×3iGX110..GD,IR200010

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-22020iGX110..GD,IR200010

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-23003iGX110..GD,IR200010-200706

main90374-27009iGX115,JZX11#..4FC..(GD,GDG,IR,IRS)200108-200706

main90374-30006iGX115,JZX11#..4FC200010-200108

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34260iGX110..GD,IR200010

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-43020iGX110..GD,IR200010

35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)

main35789-22070iGX110..GD,IR200010

35709SUPPORT SUB-ASSY, CENTER

main35709-28010iGX110..GD,IR200010

35709CRING, OIL SEAL (FOR CENTER SUPPORT)

main35617-16010×3iGX110..GD,IR200010

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010×2iGX110..GD,IR200010-200706

main35749-30010×2iGX115,JZX11#..4FC200010-200706

35790CLUTCH ASSY, 1 WAY

main35790-22040iGX110..SED200210-200411

main35790-30050iGX115,JZX11#..4FC..(GD,GDG,IR,IRS)200010-200706

main35790-30060iJZX110..4FC..(GDGT,GDV,IRV)200010-200604

main35790-30080iJZX110..SED..5FC200210-200411

9010508141

main90105-08141

27 parts on this diagram · 3 diagrams in section
