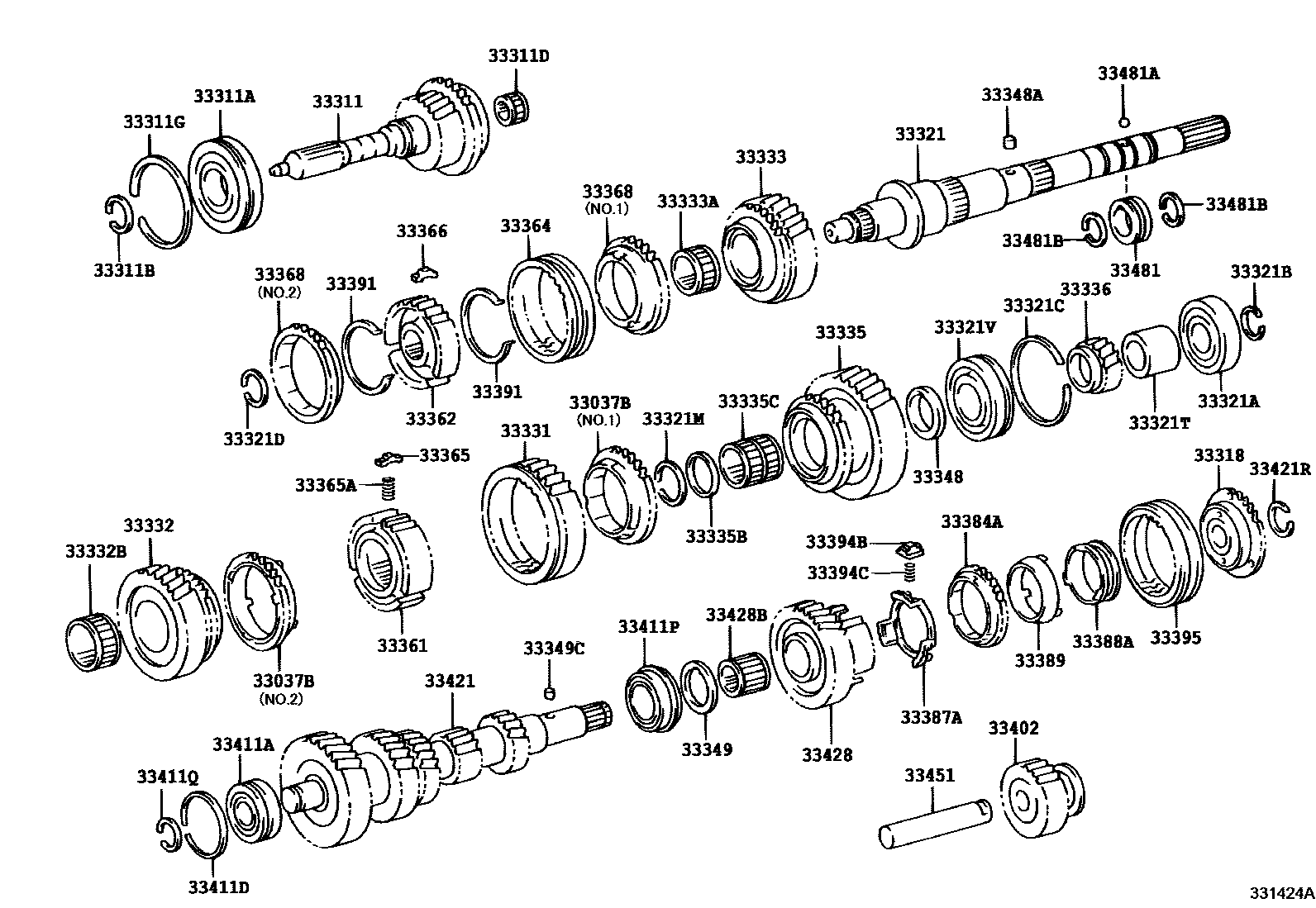

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
33321MRING, SHAFT SNAP (FOR BEARING)
33321TSPACER (FOR OUTPUT SHAFT)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335BSPACER(FOR 1ST GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33349WASHER, 5TH GEAR THRUST
33349CPIN (FOR 5TH GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33365ASPRING, COMPRESSION
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
33384ARING, SYNCHRONIZER, OUTER NO.3
33387ARING, REVERSE SYNCHRONIZER
33388ARING, REVERSE SYNCHRONIZER PULL
33389RING, SYNCHRONIZER CONE
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33394BKEY, SYNCHROMESH SHIFTING, NO.3
33394CSPRING, COMPRESSION
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
33421GEAR, COUNTER
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
33428GEAR, COUNTERSHAFT 5TH
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
56 parts on this diagram · 1 diagram in section
